固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

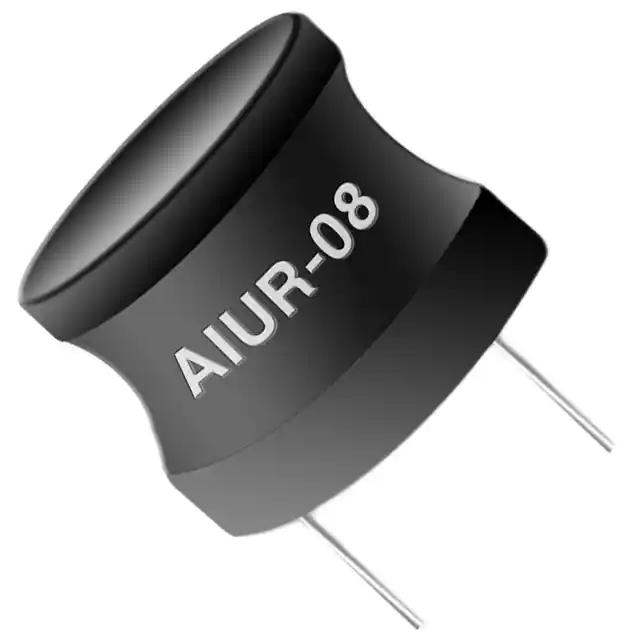

AIUR-08-331KFIXED IND 330UH 930MA 520MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 930 mA | - | Unshielded | 520mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
|
AIUR-08-391KFIXED IND 390UH 860MA 650MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 860 mA | - | Unshielded | 650mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
|
AIUR-08-471KFIXED IND 470UH 780MA 710MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 780 mA | - | Unshielded | 710mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
|
AIUR-08-561KFIXED IND 560UH 710MA 1 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 710 mA | - | Unshielded | 1Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
AIUR-08-681KFIXED IND 680UH 650MA 1.1 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 650 mA | - | Unshielded | 1.1Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
|
AIUR-08-821KFIXED IND 820UH 590MA 1.3 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 590 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
|
AIUR-08-102KFIXED IND 1MH 530MA 1.7 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 530 mA | - | Unshielded | 1.7Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
ASPI-0428S-1R8N-TFIXED IND 1.8UH 2.2A 27.5MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 2.2 A | - | Shielded | 27.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-2R2N-TFIXED IND 2.2UH 2.04A 31.3 MOHM Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.04 A | - | Shielded | 31.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-3R9N-TFIXED IND 3.9UH 1.44A 64.8 MOHM Abracon LLC |
0 |
|
规格书 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 1.44 A | - | Shielded | 64.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
