固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

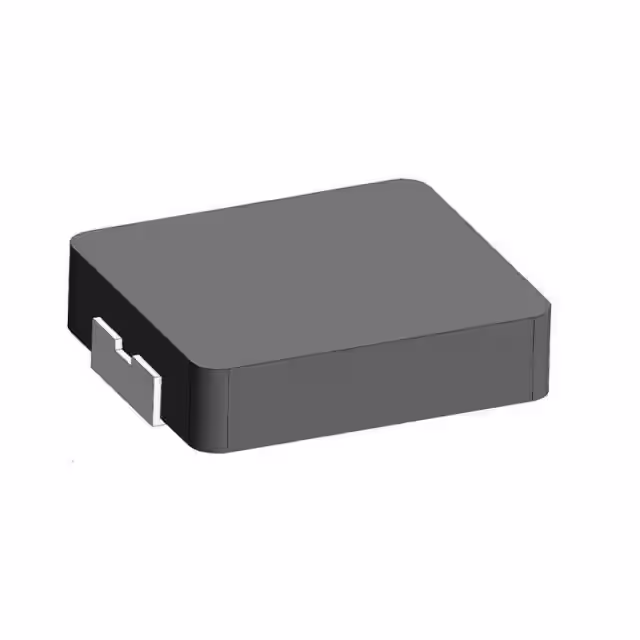

AMDLA4012Q-2R2MTFIXED IND 2.2UH 3.5A 80 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4012Q | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 2.2 µH | ±20% | 3.5 A | 5.5A | Shielded | 80mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|
|
AMDLA4012Q-R47MTFIXED IND 470NH 8.8A 20 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4012Q | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 470 nH | ±20% | 8.8 A | 13A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|
|
AMDLA4012Q-R68MTFIXED IND 680NH 9A SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4012Q | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 680 nH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|
|
AMDLA4012Q-3R3MTFIXED IND 3.3UH 2.8A 111MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4012Q | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 3.3 µH | ±20% | 2.8 A | 4.5A | Shielded | 111mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|
AMDLA4012Q-6R8MTIND 6.8UH 2.4A 138MOHM Abracon LLC |
0 |
|
规格书 |
AMDLA4012Q | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 6.8 µH | ±10% | 2.4 A | 2.6A | Shielded | 138mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|
|
AMDLA4012Q-100MTIND 10UH 1.8A 190MOHM Abracon LLC |
0 |
|
规格书 |
AMDLA4012Q | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 10 µH | ±10% | 1.8 A | 2.1A | Shielded | 190mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|
|
AMDLA4012Q-150MTIND 15UH 1.2A 275MOHM Abracon LLC |
0 |
|
规格书 |
AMDLA4012Q | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 15 µH | ±10% | 1.2 A | 1.5A | Shielded | 190mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.047" (1.20mm) |
|

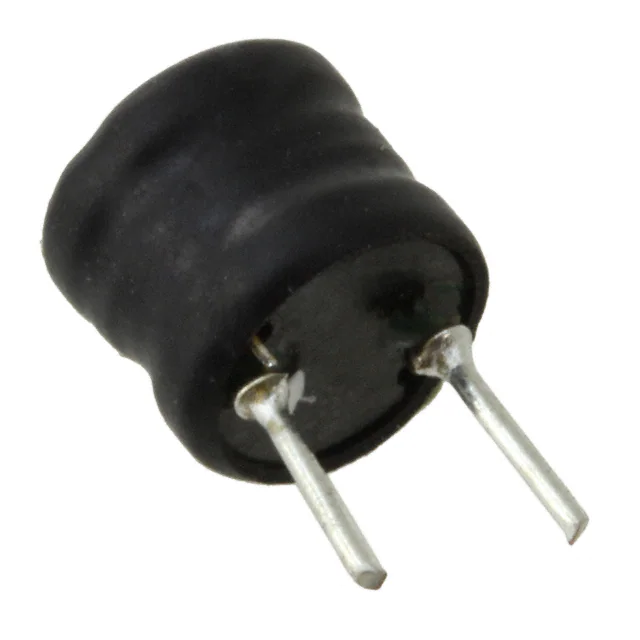

AIUR-05-101KFIXED IND 100UH 590MA 230MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-05 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 590 mA | 750mA | Unshielded | 230mOhm Max | 10 @ 796kHz | 5.4MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.354" (9.00mm) |
|
AIUR-07-100KFIXED IND 10UH 1.05A 100 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-07 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.05 A | 1.5A | Unshielded | 100mOhm Max | 24 @ 2.52MHz | - | - | -55°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.201" (5.10mm) |
|
|
AIUR-07-150KFIXED IND 15UH 930MA 130 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-07 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 930 mA | 1.3A | Unshielded | 130mOhm Max | 33 @ 2.52MHz | - | - | -55°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.201" (5.10mm) |
