固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

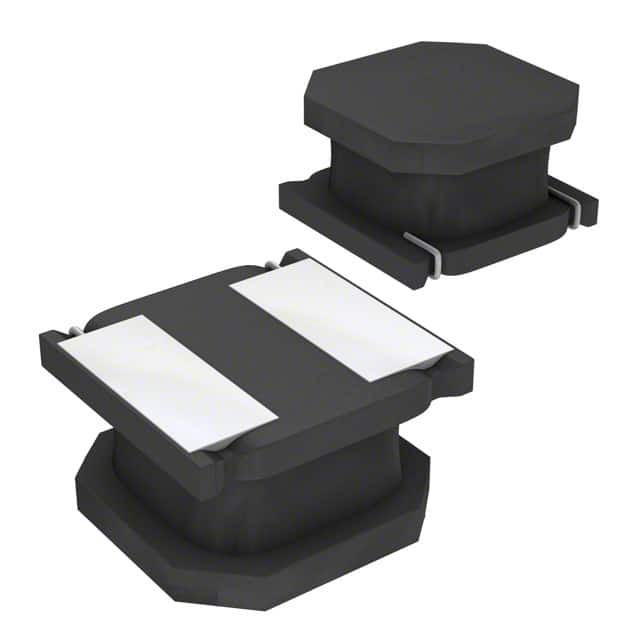

ASPI-2012-1R0M-TFIXED IND 1UH 1.5A 88 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.5 A | 2.7A | Shielded | 88mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ASPI-2012-1R5M-TFIXED IND 1.5UH 1.3A 112MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.3 A | 2A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ASPI-2012-R47M-TFIXED IND 470NH 2A 50 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2 A | 3.55A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ASPI-2012-R68M-TFIXED IND 680NH 1.8A 60 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 1.8 A | 2.95A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
ASPI-2010HC-R24M-TFIXED IND 240NH 3A 40 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-2010HC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 240 nH | ±20% | 3 A | 4.5A | Shielded | 40mOhm Max | - | 145MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
ASPI-2012-150M-TFIXED IND 15UH 380MA 1.368OHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 380 mA | 550mA | Shielded | 1.368Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|

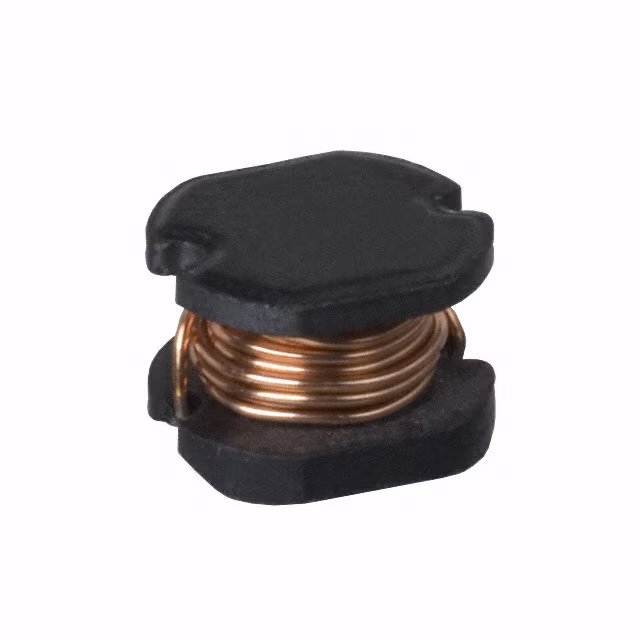

ASPI-0403-180K-TFIXED IND 18UH 740MA 338MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 740 mA | - | Unshielded | 338mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
ASPI-0403-270K-TFIXED IND 27UH 620MA 522MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 620 mA | - | Unshielded | 522mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
ASPI-0403-390K-TFIXED IND 39UH 520MA 587MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 520 mA | - | Unshielded | 587mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
ASPI-0403-560K-TFIXED IND 56UH 420MA 937MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 420 mA | - | Unshielded | 937mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
