固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIAP-01-391K-TFIXED IND 390UH 260MA 3 OHM TH Abracon LLC |
0 |
|
规格书 |
AIAP-01 | Axial | Cut Tape (CT) | Active | Wirewound | - | 390 µH | ±10% | 260 mA | - | Unshielded | 3Ohm Max | - | 1.7MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
|
AIAP-01-681K-TFIXED IND 680UH 180MA 6.4 OHM TH Abracon LLC |
0 |
|
规格书 |
AIAP-01 | Axial | Cut Tape (CT) | Active | Wirewound | - | 680 µH | ±10% | 180 mA | - | Unshielded | 6.4Ohm Max | - | 1.2MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
|
AIAP-01-562K-TFIXED IND 5.6MH 63MA 55 OHM TH Abracon LLC |
0 |
|
规格书 |
AIAP-01 | Axial | Cut Tape (CT) | Active | Wirewound | - | 5.6 mH | ±10% | 63 mA | - | Unshielded | 55Ohm Max | - | 400kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
|
AIAP-01-822K-TFIXED IND 8.2MH 54MA 75 OHM TH Abracon LLC |
0 |
|
规格书 |
AIAP-01 | Axial | Cut Tape (CT) | Active | Wirewound | - | 8.2 mH | ±10% | 54 mA | - | Unshielded | 75Ohm Max | - | 290kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|

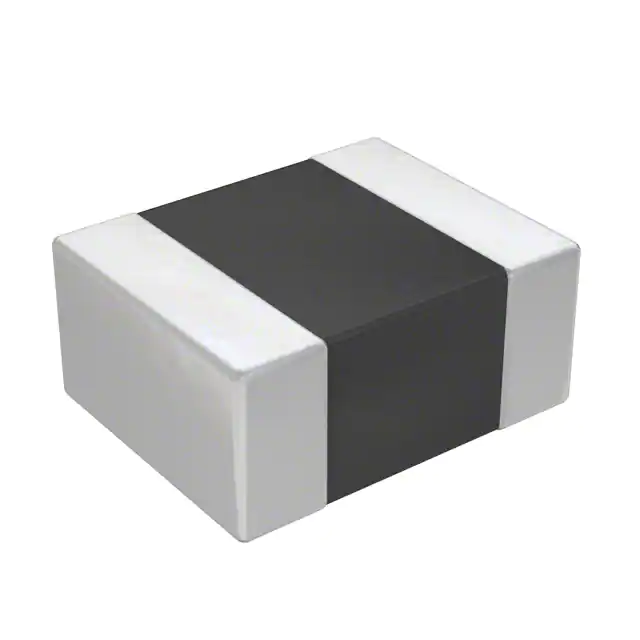

ASMPH-0806-3R3M-TFIXED IND 3.3UH 1.2A 120MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPH-0806 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 1.2 A | 330mA | Shielded | 120mOhm | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
ASMPH-0806-R47M-TFIXED IND 470NH 1.5A 80 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPH-0806 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.5 A | 1.6A | Shielded | 80mOhm | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

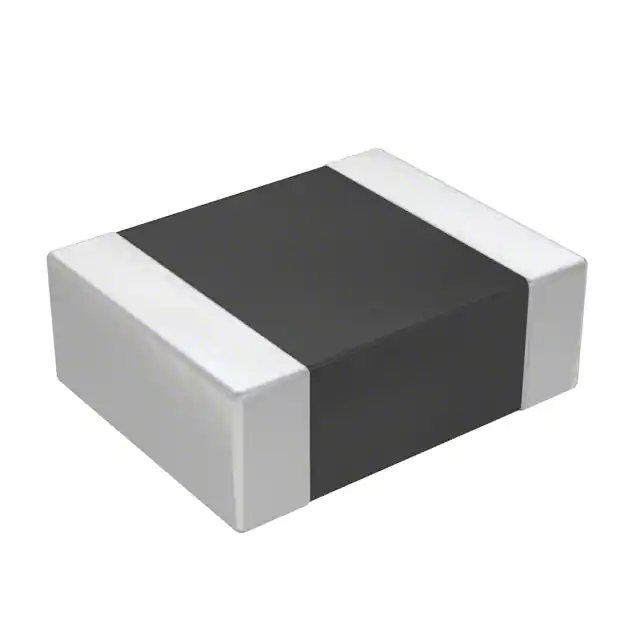

ASMPH-1008-R47M-TFIXED IND 470NH 1.8A 40 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPH-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.8 A | 1.5A | Shielded | 40mOhm | - | 105MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ASPI-0310FS-2R2M-T2FIXED IND 2.2UH 1.9A 80 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 1.9 A | 1.45A | Shielded | 80mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
ASPI-0310FS-3R3M-T2FIXED IND 3.3UH 1.8A 130MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 1.8 A | 1.05A | Shielded | 130mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
ASPI-0310FS-6R8M-T2FIXED IND 6.8UH 1.3A 260MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 1.3 A | 700mA | Shielded | 260mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
