固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

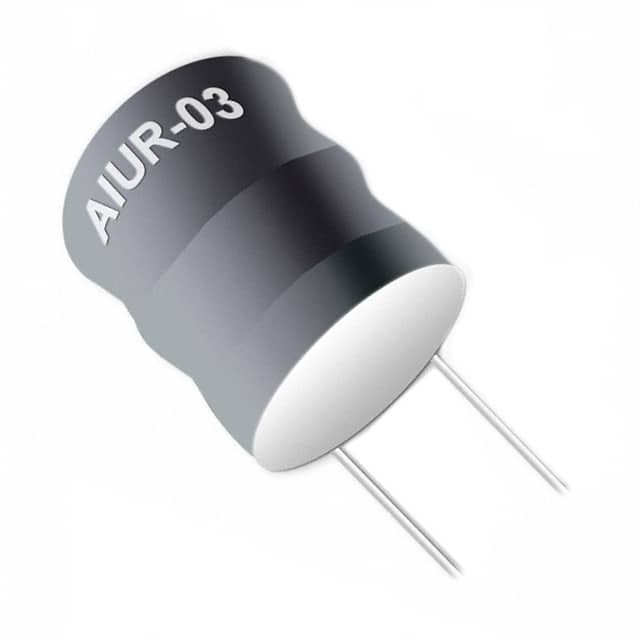

AIUR-03-102KFIXED IND 1MH 220MA 2.9 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 220 mA | 290mA | Unshielded | 2.9Ohm Max | 50 @ 252kHz | 1.3MHz | - | -25°C ~ 85°C | 252 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
AISM-1008-150J-TIND 15UH 0.00252A 4400M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±5% | 140 mA | - | Shielded | 4.4Ohm Max | 25 @ 2.52MHz | 26MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AISM-1008-R27J-TIND 0.27UH 0.0252A 550M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 270 nH | ±5% | 425 mA | - | Shielded | 550mOhm Max | 30 @ 25.2MHz | 425MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AISM-1008-3R9J-TIND 3.9UH 0.00796A 2100M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 3.9 µH | ±5% | 180 mA | - | Shielded | 2.1Ohm Max | 30 @ 7.96MHz | 48MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AISM-1008-R056J-TIND 0.056UH 0.1A 600M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 56 nH | ±5% | 340 mA | - | Shielded | 600mOhm Max | 20 @ 100MHz | 1.1GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AISM-1008-1R8J-TIND 1.8UH 0.00796A 1450M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±5% | 210 mA | - | Shielded | 1.45Ohm Max | 30 @ 7.96MHz | 135MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AISM-1008-R56J-TIND 0.56UH 0.0252A 750M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±5% | 325 mA | - | Shielded | 750mOhm Max | 30 @ 25.2MHz | 325MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AISM-1008-R012J-TIND 0.012UH 0.1A 270M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 12 nH | ±5% | 500 mA | - | Shielded | 270mOhm Max | 15 @ 100MHz | 2.05GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AISM-1008-R39J-TIND 0.39UH 0.0252A 650M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 390 nH | ±5% | 375 mA | - | Shielded | 650mOhm Max | 30 @ 25.2MHz | 375MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AISM-1008-2R7J-TIND 2.7UH 0.195A 1700M Abracon LLC |
0 |
|
规格书 |
AISM-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.7 µH | ±5% | 195 mA | - | Shielded | 1.7Ohm Max | 30 @ 7.96MHz | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
