固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

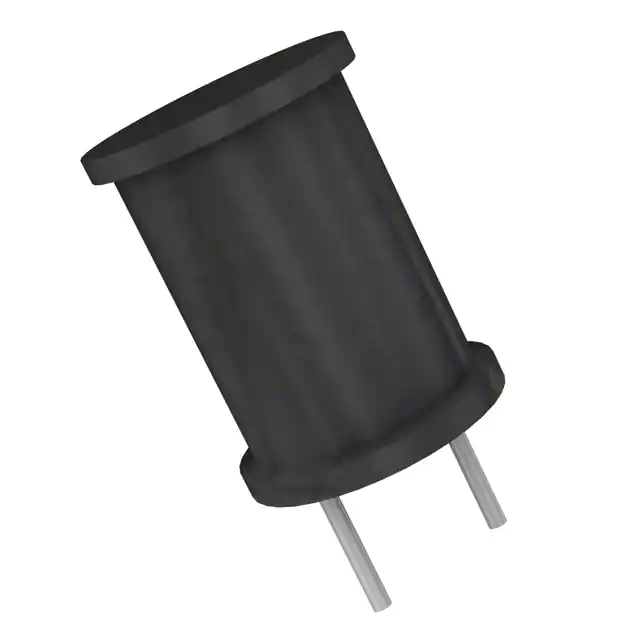

AIUR-03-1R5MFIXED IND 1.5UH 3.3A 16 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.3 A | 8.5A | Unshielded | 16mOhm Max | 20 @ 7.96MHz | 130MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
AIUR-03-3R3KFIXED IND 3.3UH 2.9A 25 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 2.9 A | 5.5A | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 79MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
AIUR-03-120KFIXED IND 12UH 1.9A 50 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 1.9 A | 2.7A | Unshielded | 50mOhm Max | 50 @ 2.52MHz | 13MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
AIUR-03-6R8MFIXED IND 6.8UH 2.3A 35 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.3 A | 3.7A | Unshielded | 35mOhm Max | 20 @ 7.96MHz | 29MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
AIUR-03-3R3MFIXED IND 3.3UH 2.9A 25 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.9 A | 5.5A | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 79MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
ASPI-0645-470M-TFIXED IND 47UH 1.3A 210MOHMS Abracon LLC |
0 |
|
规格书 |
ASPI-0645 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.3A | Shielded | 210mOhm | - | - | AEC-Q200 | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-0645-560M-TFIXED IND 56UH 1.2A 270MOHMS Abracon LLC |
0 |
|
规格书 |
ASPI-0645 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 56 µH | ±20% | 1.2 A | 1.2A | Shielded | 270mOhm | - | - | AEC-Q200 | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-0645-4R5N-TFIXED IND 4.5UH 4.3A 23MOHMS Abracon LLC |
0 |
|
规格书 |
ASPI-0645 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.5 µH | ±30% | 3.8 A | 4.3A | Shielded | 23mOhm | - | - | AEC-Q200 | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-0645-100M-TFIXED IND 10UH 3.1A 45MOHMS Abracon LLC |
0 |
|
规格书 |
ASPI-0645 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3 A | 3.1A | Shielded | 45mOhm | - | - | AEC-Q200 | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-0645-4R7N-TFIXED IND 4.7UH 4.0A 23MOHMS Abracon LLC |
0 |
|
规格书 |
ASPI-0645 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 3.7 A | 4A | Shielded | 23mOhm | - | - | AEC-Q200 | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
