固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDH10060C-221MB=P3FIXED IND 220UH 0.8A 345 MOHM SM Murata Electronics |
0 |
|
规格书 |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 800 mA | 1A | Unshielded | 448.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-101MB=P3FIXED IND 100UH 1.2A 160 MOHM SM Murata Electronics |
0 |
|
规格书 |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | 1.5A | Unshielded | 208mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-330MB=P3FIXED IND 33UH 2.1A 61 MOHM SMD Murata Electronics |
0 |
|
规格书 |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 2.1 A | 2.6A | Unshielded | 79.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-6R8NB=P3FIXED IND 6.8UH 3.8A 14 MOHM SMD Murata Electronics |
0 |
|
规格书 |
MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 3.8 A | 6A | Unshielded | 18.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|

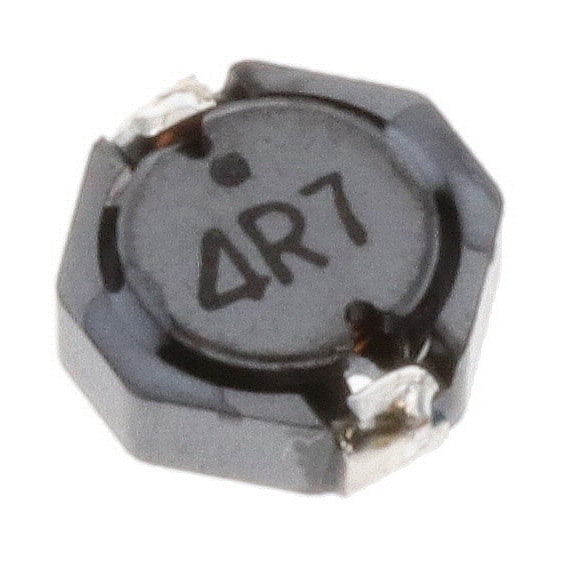

#A914BYW-4R7M=P3FIXED IND 4.7UH 1.22A 87MOHM SMD Murata Electronics |
0 |
|
规格书 |
D52LC | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | - | 4.7 µH | ±20% | 1.22 A | 1.14A | Shielded | 87mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
1273AS-H-330M=P3FIXED IND 33UH 1.6A 174 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DEM8030C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.6 A | 1.9A | Shielded | 174mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
1273AS-H-470M=P3FIXED IND 47UH 1.3A 289 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DEM8030C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.3A | Shielded | 289mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
B1135AS-1R0N=P3FIXED IND 1UH 8.5A 9.6 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.5 A | 7.8A | Shielded | 9.6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-1R5N=P3FIXED IND 1.5UH 7.6A 11 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 7.6 A | 6.3A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-2R2N=P3FIXED IND 2.2UH 7.3A 13 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.3 A | 5.5A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
