固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43PH4R7M26LFIXED IND 4.7UH 1.6A 90MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.6 A | 1.4A | Shielded | 90mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NH181J03LFIXED IND 180UH 110MA 4.08OHM SM Murata Electronics |
0 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 110 mA | - | Unshielded | 4.08Ohm Max | 40 @ 796kHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NH4R7J03LFIXED IND 4.7UH 750MA 108MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 750 mA | - | Unshielded | 108mOhm Max | 20 @ 1MHz | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

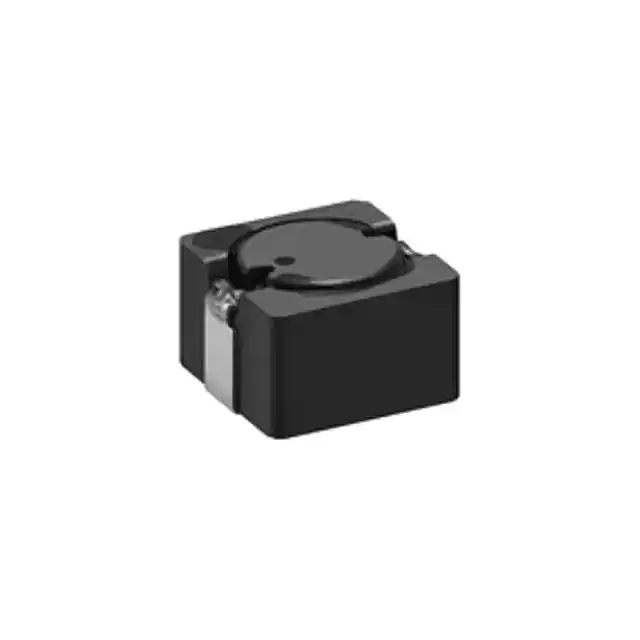

B1047AS-4R7N=P3FIXED IND 4.7UH 4.1A 26 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 4.5A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-680M=P3FIXED IND 68UH 1A 280 MOHM SMD Murata Electronics |
8 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1 A | 1.13A | Shielded | 280mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-331M=P3FIXED IND 330UH 410MA 1.4OHM SMD Murata Electronics |
7 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 410 mA | 510mA | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
LQH43NN182J03LFIXED IND 1.8MH 35MA 45 OHM SMD Murata Electronics |
0 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±5% | 35 mA | - | Unshielded | 45Ohm Max | 40 @ 252kHz | 1.5MHz | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NN100J03LFIXED IND 10UH 400MA 560MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 400 mA | - | Unshielded | 560mOhm Max | 36 @ 1MHz | 23MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NN100K03LFIXED IND 10UH 400MA 560MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 400 mA | - | Unshielded | 560mOhm Max | 36 @ 1MHz | 23MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NN101K03LFIXED IND 100UH 160MA 2.5OHM SMD Murata Electronics |
0 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 160 mA | - | Unshielded | 2.5Ohm Max | 40 @ 796kHz | 6.8MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
