固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1267AY-330M=P3FIXED IND 33UH 1.9A 120 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.9 A | - | Shielded | 120mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
|
1267AY-470M=P3FIXED IND 47UH 1.6A 168 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.6 A | - | Shielded | 168mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
|
1267AY-4R7N=P3FIXED IND 4.7UH 5.1A 20.4MOHM SM Murata Electronics |
0 |
|
规格书 |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.1 A | - | Shielded | 20.4mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
|
|
1267AY-680M=P3FIXED IND 68UH 1.3A 240 MOHM SMD Murata Electronics |
0 |
|
规格书 |
DG8040C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | - | Shielded | 240mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.157" (4.00mm) |
.jpg)
|

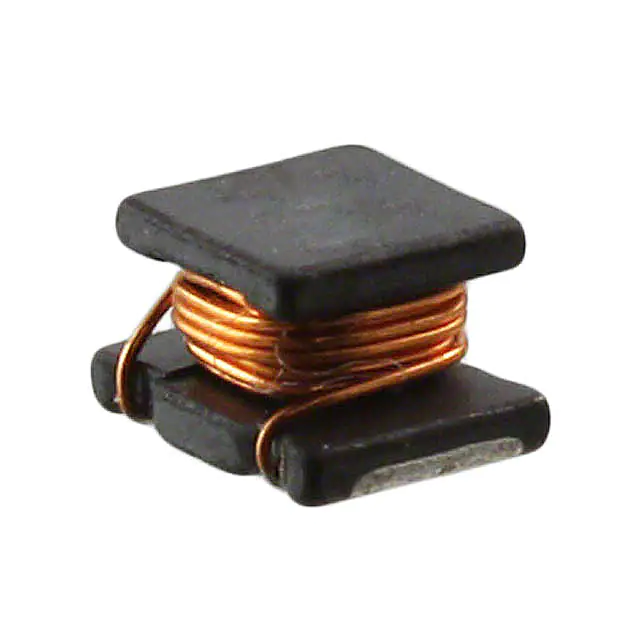

LQW31HN47NJ03LFIXED IND 47NH 380MA 154MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQW31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 47 nH | ±5% | 380 mA | - | Unshielded | 154mOhm Max | 60 @ 436MHz | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
B1047AS-270M=P3FIXED IND 27UH 1.6A 130 MOHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.6 A | 1.8A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-101M=P3FIXED IND 100UH 770MA 460MOHM SM Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 770 mA | 940mA | Shielded | 460mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-471M=P3FIXED IND 470UH 370MA 1.7OHM SMD Murata Electronics |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 370 mA | 430mA | Shielded | 1.7Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
LQH43PH101M26LFIXED IND 100UH 320MA 1.8456 OHM Murata Electronics |
0 |
|
规格书 |
LQH43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 320 mA | 320mA | Shielded | 1.8456Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43PH3R3M26LFIXED IND 3.3UH 2.1A 62.4MOHM SM Murata Electronics |
0 |
|
规格书 |
LQH43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.1 A | 1.8A | Shielded | 62.4mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
