固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

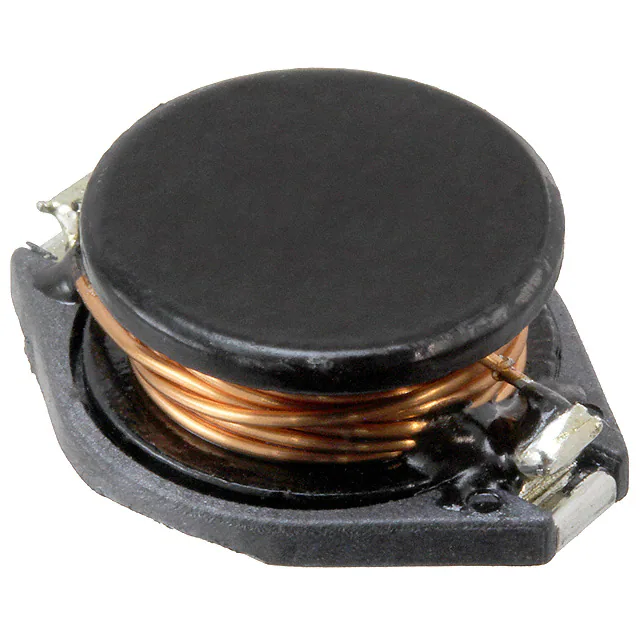

LMXN2216M470BTASFIXED IND 47UH 96 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | - | 5A | Unshielded | 96mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|

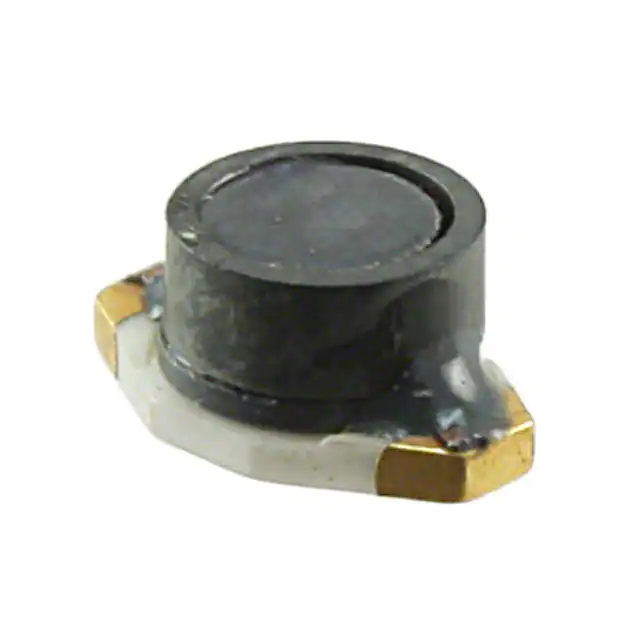

LMXS0704M100DTASFIXED IND 10UH 1A 75 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | 40 @ 200kHz | 38MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

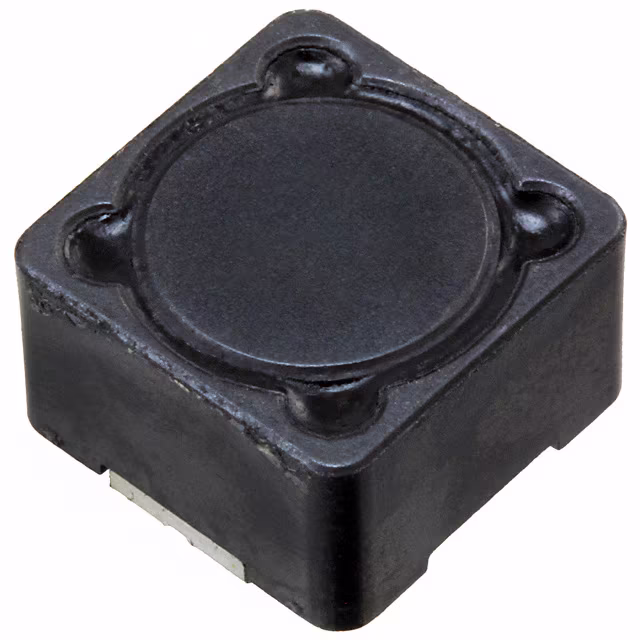

LMXS121JM470HTASFIXED IND 47UH 2.5A 100 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.5 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

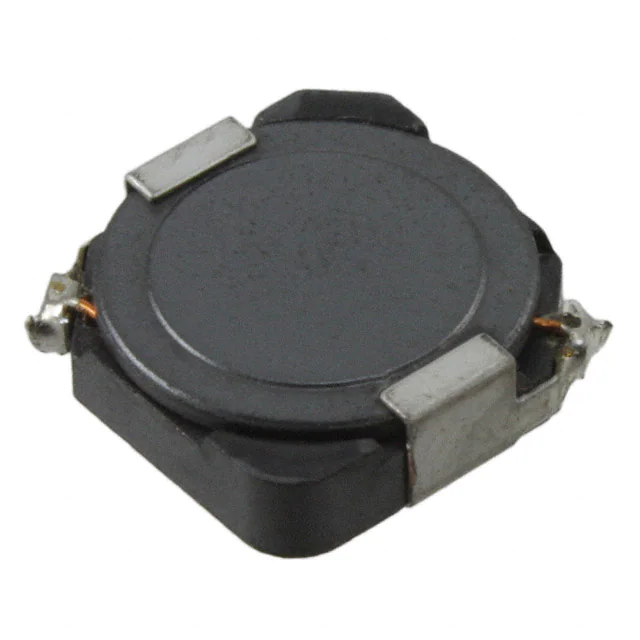

LMXS1010N100LTASFIXED IND 10UH 3.18A 59 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.18 A | - | Shielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
LMLP13B3M680DTASFIXED IND 68UH 2A 134 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 68 µH | ±20% | 2 A | 3.5A | Shielded | 134mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
LMLP13B3MR82DTASFIXED IND 820NH 33A 1.9MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 820 nH | ±20% | 33 A | 50A | Shielded | 1.9mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
LMLP13B3M4R7DTASFIXED IND 4.7UH 13.5A 11.2 MOHM KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 13.5 A | 30A | Shielded | 11.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
LMLP13B3MR15DTASFIXED IND 150NH 55A 600U OHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 150 nH | ±20% | 55 A | 118A | Shielded | 600µOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
LMLP13B3M1R0DTASFIXED IND 1UH 32A 2 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 32 A | 49A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
LMLP13B3MR10DTASFIXED IND 100NH 60A 500U OHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 nH | ±20% | 60 A | 120A | Shielded | 500µOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
