固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMXS131JM470FTASFIXED IND 47UH 2.7A 64 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | - | Shielded | 64mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LMLP1011M150DTASFIXED IND 15UH 6.25A 45MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 6.25 A | 7A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
LMLP1011M470DTASFIXED IND 47UH 3.3A 145MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 47 µH | ±20% | 3.3 A | 3.5A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
LMLP1011M220DTASFIXED IND 22UH 5A 66 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 5 A | 5.5A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|

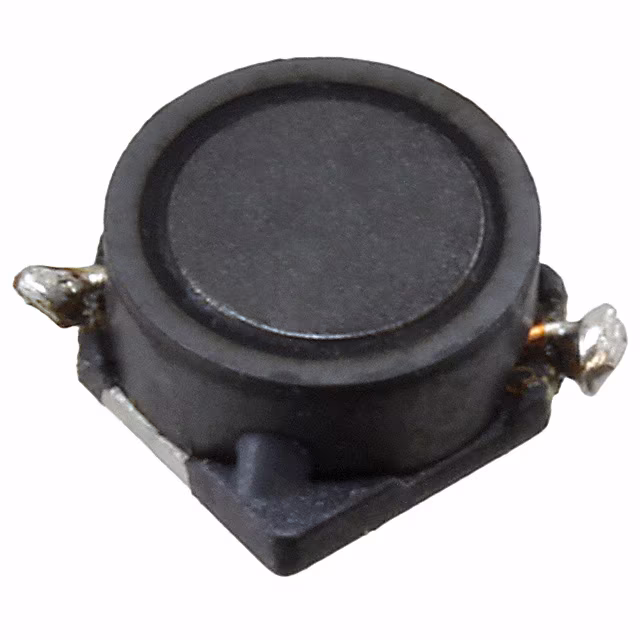

LMXS06C6M100FTASFIXED IND 10UH 1.3A 98 MOHM SMD KYOCERA AVX |
9 |
|
规格书 |
LMXS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | - | Shielded | 98mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
LMLP1313M4R7DTASFIXED IND 4.7UH 12A 15MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 12 A | 27A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M8R2DTASFIXED IND 8.2UH 9.5A 22.5MOHM SM KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 9.5 A | 18A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313MR82DTASFIXED IND 820NH 31A 2.3MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 820 nH | ±20% | 31 A | 53A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M6R8DTASFIXED IND 6.8UH 11A 18.5MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 11 A | 21A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M1R5DTASFIXED IND 1.5UH 23A 4.1MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.5 µH | ±20% | 23 A | 48A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
