固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L04021R8BHLTRFIXED IND 1.8NH 400MA 200MOHM SM KYOCERA AVX |
0 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.8 nH | ±0.1nH | 400 mA | - | Unshielded | 200mOhm Max | 18 @ 450MHz | 16GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04022R2BHLTRFIXED IND 2.2NH 400MA 200MOHM SM KYOCERA AVX |
0 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.2 nH | ±0.1nH | 400 mA | - | Unshielded | 200mOhm Max | 15 @ 450MHz | 15GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
L04021R2BHLTRFIXED IND 1.2NH 400MA 200MOHM SM KYOCERA AVX |
0 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1.2 nH | ±0.1nH | 400 mA | - | Unshielded | 200mOhm Max | 20 @ 450MHz | 20GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
L08052R2CESTR\500ACCU-L KYOCERA AVX |
0 |
|
规格书 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.2 nH | ±0.2nH | 2 A | - | Unshielded | 70mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
|
L0402R82BHLTRFIXED IND 0.82NH 500MA 60MOHM SM KYOCERA AVX |
0 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.82 nH | ±0.1nH | 500 mA | - | Unshielded | 60mOhm Max | 25 @ 450MHz | 20GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

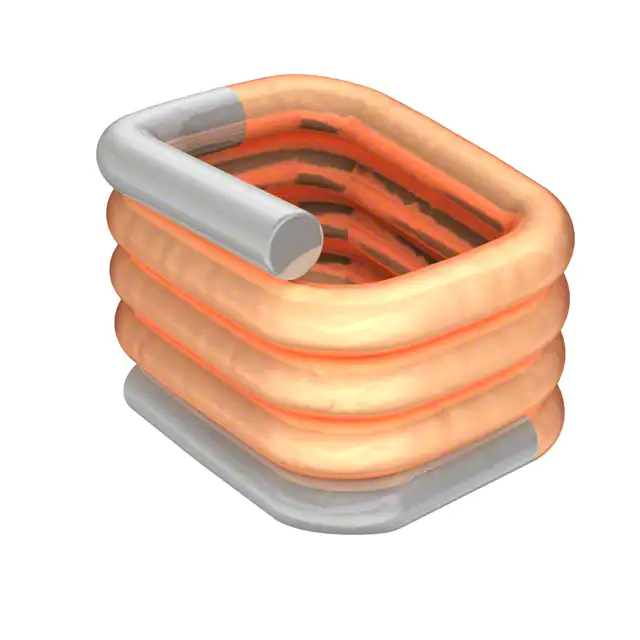

AS0608N9JTRFIXED IND 8.9NH 2.9A 7 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8.9 nH | ±5% | 2.9 A | - | Unshielded | 7mOhm Max | 90 @ 400MHz | 4.3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | 0608 (1618 Metric) | 0.064" L x 0.072" W (1.63mm x 1.83mm) | 0.059" (1.51mm) |
|
|
AS0706N9JTRFIXED IND 6.9NH 2.7A 6 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 6.9 nH | ±5% | 2.7 A | - | Unshielded | 6mOhm Max | 100 @ 400MHz | 4.6GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.072" L x 0.051" W (1.83mm x 1.30mm) | 0.070" (1.78mm) |
|
|
L08053R9CEWTR\500ACCU-L KYOCERA AVX |
0 |
|
规格书 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 3.9 nH | ±0.2nH | 1.5 A | - | Unshielded | 200mOhm Max | 27 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
L08054R7DEWTR\3FIXED IND 4.7NH 750MA 100MOHM SM KYOCERA AVX |
0 |
|
规格书 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 4.7 nH | ±0.5nH | 750 mA | - | Unshielded | 100mOhm Max | 43 @ 450MHz | 5.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
|
L0805220JEWTR\3FIXED IND 22NH 500MA 400MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 22 nH | ±5% | 500 mA | - | Unshielded | 400mOhm Max | 36 @ 450MHz | 1.4GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
