固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMLP06B6M100CTASFIXED IND 10UH 1.4A 125MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.4 A | 1.7A | Shielded | 125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LMLP06A6M330CTARFIXED IND 33UH 530MA 700MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 530 mA | 590mA | Shielded | 700mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
LMLP06B6N4R7CTASFIXED IND 4.7UH 2A 58 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 2 A | 2.4A | Shielded | 58mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|

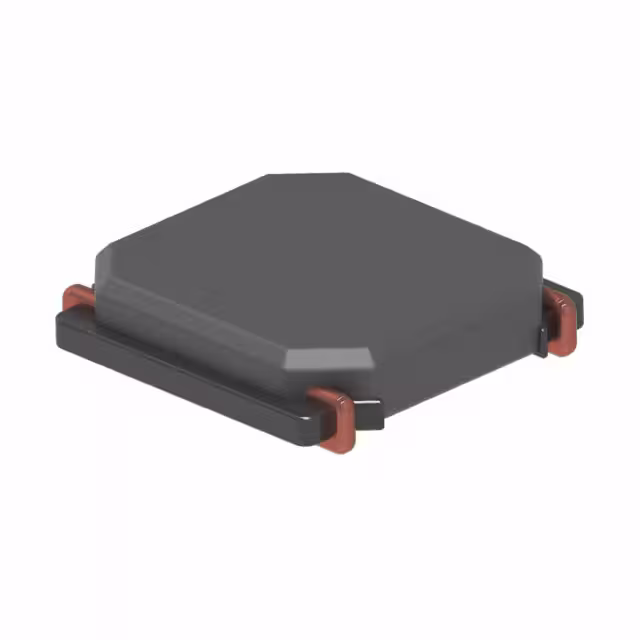

LMLP06A6N6R8CTARFIXED IND 6.8UH 1.18A 165MOHM SM KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.18 A | 1.3A | Shielded | 165mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
LMLP06A6M101CTARFIXED IND 100UH 320MA 2.18OHM SM KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 320 mA | 350mA | Shielded | 2.18Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
L08054R7DEWTR\500FIXED IND 4.7NH 750MA 100MOHM SM KYOCERA AVX |
0 |
|
规格书 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 4.7 nH | ±0.5nH | 750 mA | - | Unshielded | 100mOhm Max | 43 @ 450MHz | 5.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
L02013R3BHSTR\500FIXED IND 3.3NH 150MA 1 OHM SMD KYOCERA AVX |
0 |
|
规格书 |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 3.3 nH | ±0.1nH | 150 mA | - | Unshielded | 1Ohm Max | 7 @ 450MHz | 13GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|
HLC02120HTTRFIXED IND 12NH 265MA 1.1 OHM SMD KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 12 nH | ±3% | 265 mA | - | Unshielded | 1.1Ohm Max | 32 @ 450MHz | 4GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC02180HTTRFIXED IND 18NH 210MA 1.5 OHM SMD KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 18 nH | ±3% | 210 mA | - | Unshielded | 1.5Ohm Max | 28 @ 450MHz | 3GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC02270HTTRFIXED IND 27NH 184MA 2.1 OHM SMD KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 27 nH | ±3% | 184 mA | - | Unshielded | 2.1Ohm Max | 29 @ 450MHz | 3GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
