固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
506WLSN2R00KT494TFIXED IND 2UH 494MA 650 MOHM SMD KYOCERA AVX |
91 |
|
规格书 |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±10% | 494 mA | - | Unshielded | 650mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
LMLP1011M3R3DTASFIXED IND 3.3UH 10A 11.8MOHM SMD KYOCERA AVX |
490 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 10 A | 16A | Shielded | 11.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
LMLP07C7M3R3DTASFIXED IND 3.3UH 8A 20.9MOHM SMD KYOCERA AVX |
1,385 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 8 A | 12A | Shielded | 20.9mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
L08053R3DEWTRFIXED IND 3.3NH 750MA 110MOHM SM KYOCERA AVX |
985 |
|
规格书 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 3.3 nH | ±0.5nH | 750 mA | - | Unshielded | 110mOhm Max | 38 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
LMLP0405MR15DTASFIXED IND 150NH 9A 6.6 MOHM SMD KYOCERA AVX |
930 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 150 nH | ±20% | 9 A | 13A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.157" W (4.45mm x 4.00mm) | 0.079" (2.00mm) |
|
HL023R6BTTRFIXED IND 3.6NH 311MA 280MOHM SM KYOCERA AVX |
435 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 3.6 nH | ±0.1nH | 311 mA | - | Unshielded | 280mOhm Max | 27 @ 450MHz | 6.85GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC02150HTTRFIXED IND 15NH 240MA 1.2 OHM SMD KYOCERA AVX |
650 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 15 nH | ±3% | 240 mA | - | Unshielded | 1.2Ohm Max | 32 @ 450MHz | 4GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

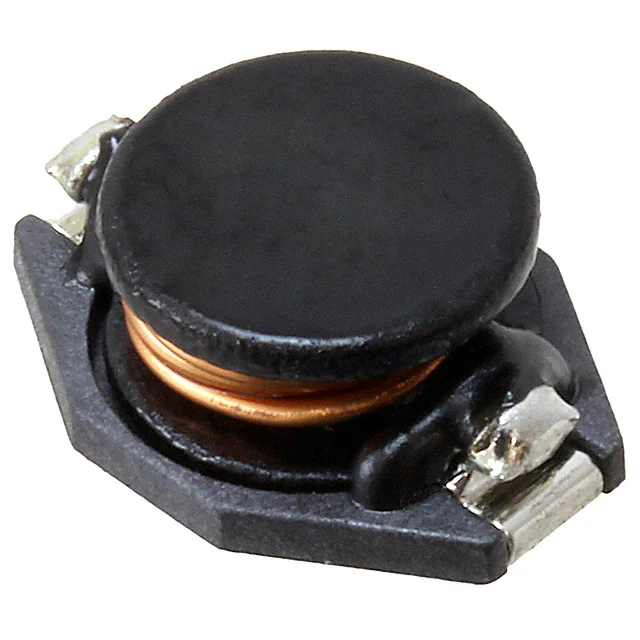

LMXN1915M680CTASFIXED IND 68UH 130 MOHM SMD KYOCERA AVX |
250 |
|
规格书 |
LMXN | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | - | 3.5A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

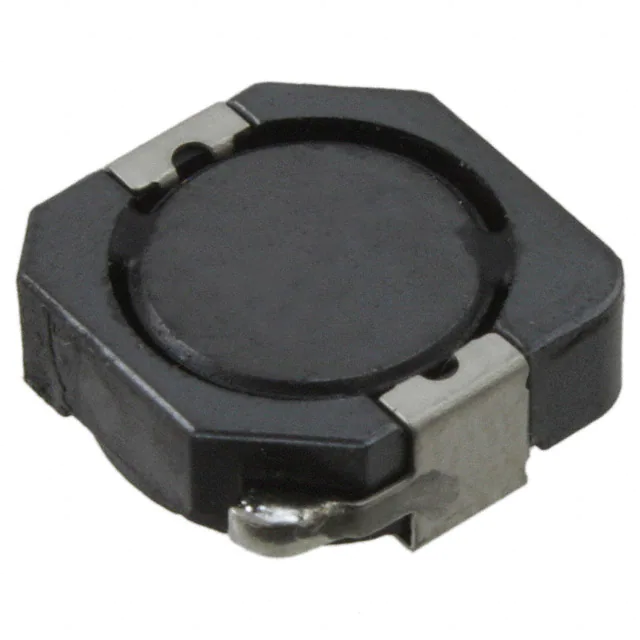

LMXS101DN470LTASFIXED IND 47UH 2.1A 128 MOHM SMD KYOCERA AVX |
88 |
|
规格书 |
LMXS | Nonstandard | Cut Tape (CT) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 2.1 A | - | Shielded | 128mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
506WLSM2R00KT277TFIXED IND 2UH 277MA 1.6 OHM SMD KYOCERA AVX |
0 |
|
规格书 |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±10% | 277 mA | - | Unshielded | 1.6Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
