固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

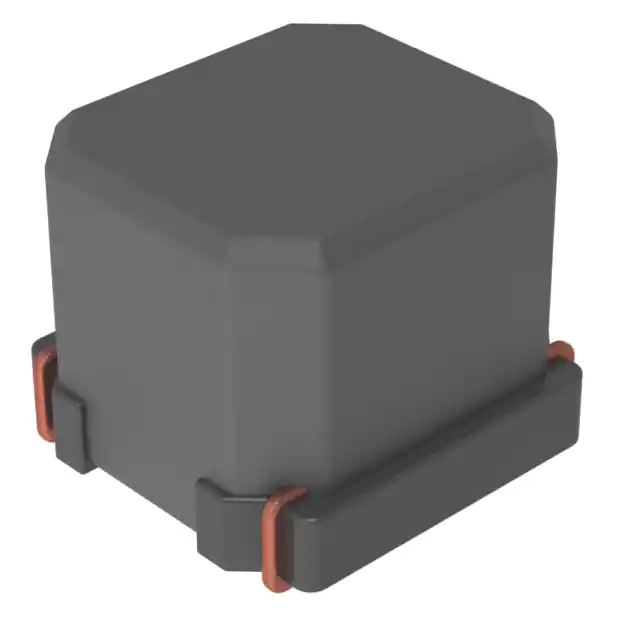

LMLP13B3M8R2DTASFIXED IND 8.2UH 10.5A 15.5 MOHM KYOCERA AVX |
400 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 10.5 A | 16A | Shielded | 15.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
AL05B9N85GTRRF Inductors-SMD 9.85nH 2% AIR C KYOCERA AVX |
1,339 |
|
- |
AL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 9.85 nH | ±2% | 1.6 A | - | Unshielded | 13mOhm Max | 100 @ 800MHz | 5.2GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|
|

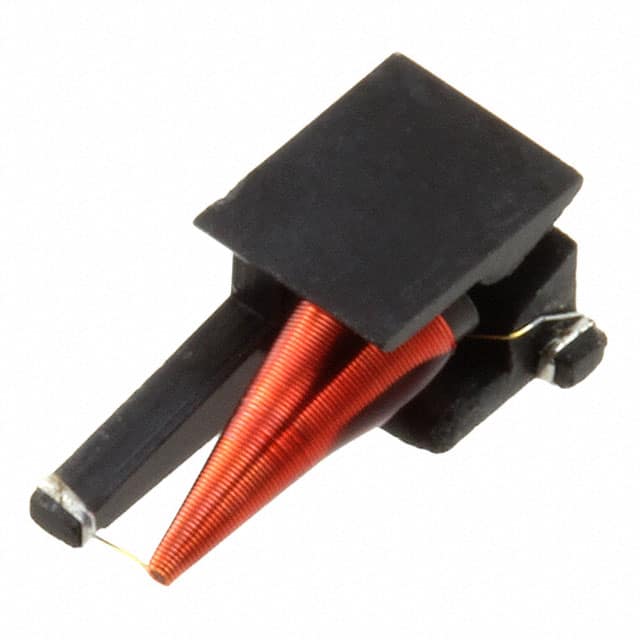

506WLSM0R47KT815T\100FIXED IND 470NH 815MA 190MOHM SM KYOCERA AVX |
15 |
|
规格书 |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±10% | 815 mA | - | Unshielded | 190mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
L0201R33AHSTR\500FIXED IND 0.33NH 550MA 100 MOHM KYOCERA AVX |
247 |
|
规格书 |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.33 nH | ±0.05nH | 550 mA | - | Unshielded | 100mOhm Max | 13 @ 450MHz | 35GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
|
L0201R47AHSTR\500FIXED IND 0.47NH 550MA 100 MOHM KYOCERA AVX |
620 |
|
规格书 |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.47 nH | ±0.05nH | 550 mA | - | Unshielded | 100mOhm Max | 10 @ 450MHz | 32GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
506WLSN3R30KT350TFIXED IND 3.3UH 350MA 1.2OHM SMD KYOCERA AVX |
154 |
|
规格书 |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±10% | 350 mA | - | Unshielded | 1.2Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
|
506WLSN1R47KT694TFIXED IND 1.47UH 694MA 330 MOHM KYOCERA AVX |
75 |
|
规格书 |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.47 µH | ±10% | 694 mA | - | Unshielded | 330mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|

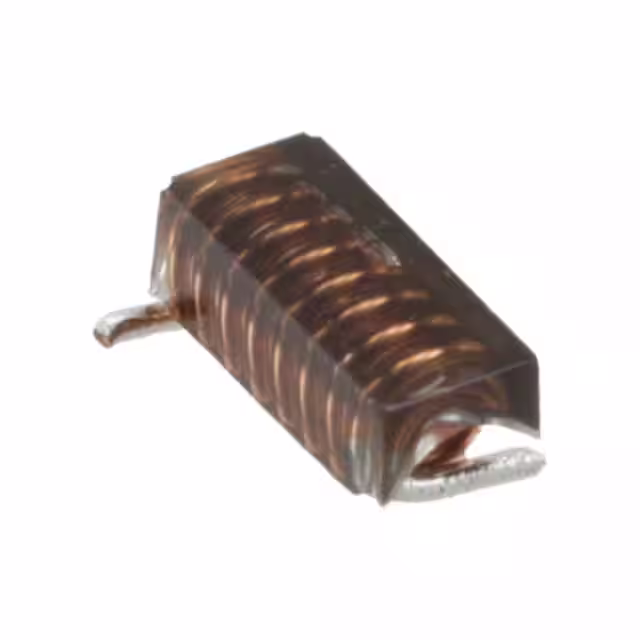

AL12B28N0GTRFIXED IND 28NH 4A 6 MOHM SMD KYOCERA AVX |
1,000 |
|
规格书 |
AL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 28 nH | ±2% | 4 A | - | Unshielded | 6mOhm Max | 105 @ 150MHz | 1.8GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
LMLP1011M4R7DTASFIXED IND 4.7UH 8.5A 20MOHM SMD KYOCERA AVX |
909 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 8.5 A | 15A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
L08052R7CESTRFIXED IND 2.7NH 2A 80 MOHM SMD KYOCERA AVX |
40 |
|
规格书 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.7 nH | ±0.2nH | 2 A | - | Unshielded | 80mOhm Max | 42 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
