固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW2BASR22G00LFIXED IND 220NH 400MA 700MOHM SM |
1,868 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±2% | 400 mA | - | Unshielded | 700mOhm Max | 50 @ 250MHz | 820MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LQG18HH27NJ00DFIXED IND 27NH 500MA 0.54OHM SMD |
1,831 |
|
规格书 |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 27 nH | ±5% | 500 mA | - | Unshielded | 540mOhm Max | 12 @ 100MHz | 1.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
SRP3212-R47MIND,3.2X2.5X1MM,0.47UH20%,7A,SHD |
1,585 |
|
规格书 |
SRP3212 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 470 nH | ±20% | 7 A | 8.2A | Shielded | 19.2mOhm Max | 3 @ 100kHz | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SRN2012T-6R8KIND,2X1.2X1.2MM,6.8UH10%,0.7A,SE |
1,509 |
|
规格书 |
SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 700 mA | 420mA | Shielded | 600mOhm | 14 @ 7.9MHz | 55MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
LQG15WZ5N6B02DFIXED IND 5.6NH 800MA 0.13OHM SM |
1,260 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 5.6 nH | ±0.1nH | 800 mA | - | Unshielded | 130mOhm Max | 23 @ 250MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
NLCV32T-R22M-EFRFIXED IND 220NH 2.4A 32.4MOHM SM |
1,044 |
|
规格书 |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 2.4 A | - | Unshielded | 32.4mOhm Max | 10 @ 25.2MHz | 400MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
KLZ2012MHR1R0HTD25FIXED IND 1UH 800MA 130 MOHM SMD |
338,997 |
|
规格书 |
KLZ-HR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 800 mA | 700mA | Shielded | 130mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 2 MHz | Soft Termination | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
VLS5045EX-2R2NFIXED IND 2.2UH 4.7A 28.6MOHM SM |
96,798 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.7 A | 6.4A | Shielded | 28.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
MCHK1608TR47MKNFIXED IND 470NH 2.7A 43MOHM SMD |
87,073 |
|
规格书 |
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 2.7 A | - | Shielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
MLF2012DR68JTD25FIXED IND 680NH 150MA 600MOHM SM |
85,113 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 680 nH | ±5% | 150 mA | - | Shielded | 600mOhm Max | 25 @ 25MHz | 140MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
NLV25T-1R0J-PFFIXED IND 1UH 245MA 1.1 OHM SMD |
46,878 |
|
规格书 |
NLV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 245 mA | - | Unshielded | 1.1Ohm Max | 30 @ 7.96MHz | 245MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|

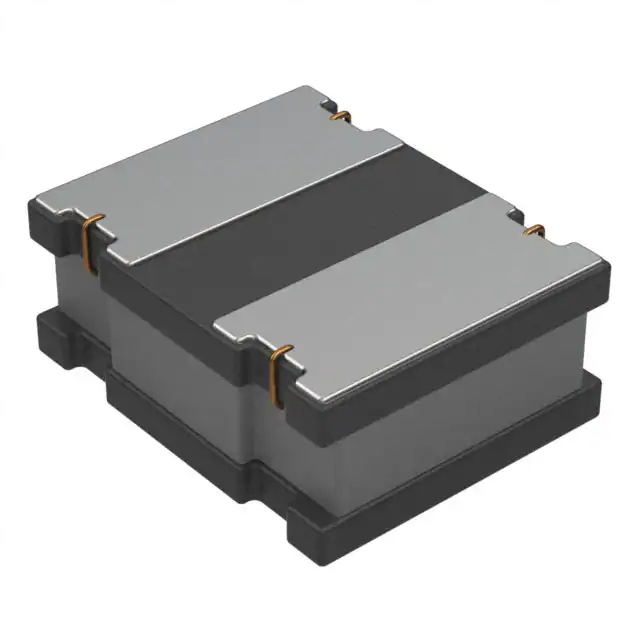

SDET25201B-100MSFIXED IND 10UH 900MA 408MOHM SMD |
40,957 |
|
规格书 |
SDET25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 900 mA | 800mA | Shielded | 408mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQM21DN150M70LFIXED IND 15UH 250MA 1.235OHM SM |
40,529 |
|
规格书 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 15 µH | ±20% | 250 mA | 140mA | Shielded | 1.235Ohm Max | - | 24MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLP2520S100MT0S1FIXED IND 10UH 700MA 364MOHM SMD |
37,019 |
|
规格书 |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 700 mA | - | Shielded | 364mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQP03HQ0N7W02DFIXED IND 0.7NH 1.1A 40MOHM SMD |
36,951 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 0.7 nH | ±0.05nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 20GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
VLS252012ET-1R0NFIXED IND 1UH 1.7A 87 MOHM SMD |
33,024 |
|
规格书 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.7 A | 2.2A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQP03HQ2N2W02DFIXED IND 2.2NH 600MA 0201 0.05N |
29,190 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.2 nH | ±0.05nH | 600 mA | - | Unshielded | 120mOhm Max | 20 @ 500MHz | 9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ1N3W02DFIXED IND 1.3NH 1.1A 40MOHM SMD |
29,134 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.3 nH | ±0.05nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 13GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ0N9W02DFIXED IND 0.9NH 1.1A 40MOHM SMD |
29,017 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 0.9 nH | ±0.05nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 18GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
MLP2016S2R2MT0S1FIXED IND 2.2UH 1.2A 143MOHM SMD |
28,000 |
|
规格书 |
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 143mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
