固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQG15WZ82NG02DFIXED IND 82NH 160MA 2.3OHM SMD |
10,000 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 82 nH | ±2% | 160 mA | - | Unshielded | 2.3Ohm Max | 22 @ 250MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LQG15WZ1N1B02DFIXED IND 1.1NH 1.2A 0.03OHM SMD |
9,575 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.1 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 14GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ1N5B02DFIXED IND 1.5NH 1A 0.04OHM SMD |
9,395 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.5 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 23 @ 250MHz | 11GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LQG18HH6N2S00DFIXED IND 6.2NH 800MA 0.18OHM SM |
9,216 |
|
规格书 |
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 6.2 nH | ±0.3nH | 800 mA | - | Unshielded | 180mOhm Max | 12 @ 100MHz | 2.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
NLCV32T-2R2M-EFRFIXED IND 2.2UH 1.2A 138MOHM SMD |
9,209 |
|
规格书 |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Unshielded | 138mOhm Max | 15 @ 7.96MHz | 68MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
MAMK2520H1R5MFIXED IND 1.5UH 2.6A 65 MOHM SMD |
8,651 |
|
规格书 |
MCOIL™, MA, H Type | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.6 A | 3.7A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQG15WZ0N8B02DFIXED IND 0.8NH 1.2A 0.03OHM SMD |
8,520 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 0.8 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LQW2BAS33NG00LFIXED IND 33NH 500MA 270MOHM SMD |
8,389 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 33 nH | ±2% | 500 mA | - | Unshielded | 270mOhm Max | 60 @ 500MHz | 2.15GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LSXND4040TKL100MDGFIXED IND 10UH 1.2A 180 MOHM SMD |
8,286 |
|
规格书 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm Max | - | 25MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQW2BASR27G00LFIXED IND 270NH 350MA 1 OHM SMD |
8,209 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 270 nH | ±2% | 350 mA | - | Unshielded | 1Ohm Max | 48 @ 250MHz | 730MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
MLJ1608WR15JT000FIXED IND 150NH 700MA 160MOHM SM |
8,081 |
|
规格书 |
MLJ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±5% | 700 mA | 600mA | Shielded | 160mOhm Max | 15 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MAKK2520H1R5MFIXED IND 1.5UH 2.4A 78 MOHM SMD |
7,888 |
|
规格书 |
MCOIL™, MA, H Type | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.4 A | 3A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQG15WZ2N2B02DFIXED IND 2.2NH 1A 0.06OHM SMD |
7,822 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.2 nH | ±0.1nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MAKK2520H100MFIXED IND 10UH 750MA 650MOHM SMD |
7,802 |
|
规格书 |
MCOIL™, MA, H Type | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 750 mA | 1.25A | Shielded | 650mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW2UAS3R9J00LFIXED IND 3.9UH 260MA 3.6OHM SMD |
7,715 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 3.9 µH | ±5% | 260 mA | - | Unshielded | 3.6Ohm Max | 20 @ 25MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
LMLP03B3M100CTARFIXED IND 10UH 710MA 230MOHM SMD |
7,428 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 710 mA | 700mA | Shielded | 230mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
NLCV32T-2R2M-PFRFIXED IND 2.2UH 1.2A 138MOHM SMD |
7,272 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Unshielded | 138mOhm Max | 15 @ 7.96MHz | 68MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LQM18DZ100M70LFIXED IND 10UH 300MA INFOTMT |
7,065 |
|
规格书 |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 300 mA | 100mA | Shielded | 1.37Ohm Max | - | 32MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQG15WZ2N0B02DFIXED IND 2NH 1A 0.05OHM SMD |
6,910 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2 nH | ±0.1nH | 1 A | - | Unshielded | 50mOhm Max | 23 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

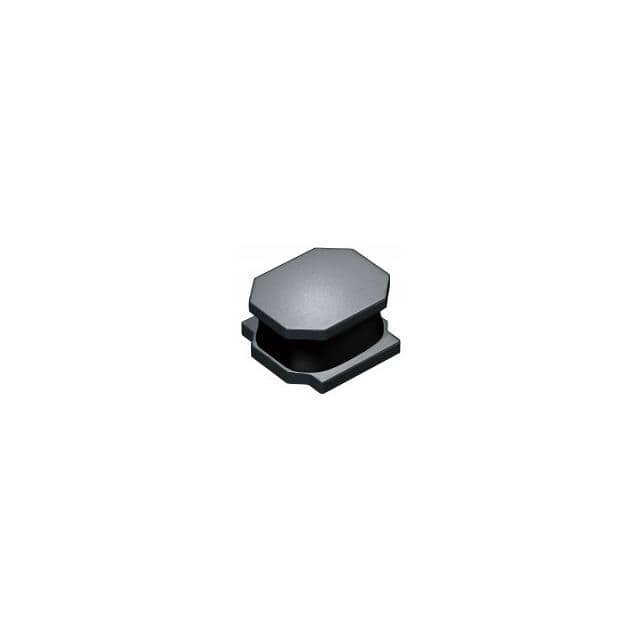

LSXND4040TKL2R2MDGFIXED IND 2.2UH 2.2A 50.4MOHM SM |
6,735 |
|
规格书 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 2.2 A | 3A | Shielded | 50.4mOhm Max | - | 60MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
