固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC6-682-181FIXED IND 6.8MH 180MA 8.92OHM TH KEMET |
964 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 180 mA | 420mA | Unshielded | 8.92Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
|
SBC6-103-161FIXED IND 10MH 160MA 13.6 OHM TH KEMET |
578 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 160 mA | 350mA | Unshielded | 13.6Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
SBCP-87HY331HFIXED IND 330UH 500MA 920MOHM TH KEMET |
437 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 500 mA | 470mA | Unshielded | 920mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|

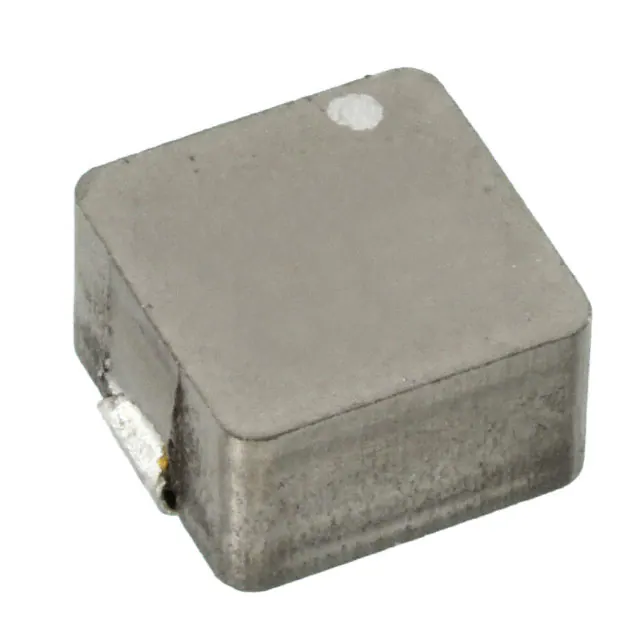

MPCH1060LR45FIXED IND 450NH 32A 0.76MOHM SMD KEMET |
3,324 |
|
规格书 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 450 nH | ±20% | 32 A | 32A | Shielded | 0.76mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.394" W (12.00mm x 10.00mm) | 0.236" (6.00mm) |
|
MPXV1D0650L3R3FIXED IND 3.3UH 8.7A 18.9MOHM SM KEMET |
944 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 8.7 A | 8A | Shielded | 18.9mOhm Max | - | 26MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D0650L4R7FIXED IND 4.7UH 6.7A 32MOHM SMD KEMET |
862 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 6.7 A | 6.5A | Shielded | 32mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
MPX1D1235L4R7FIXED IND 4.7UH 10.9A 16.4 MOHM KEMET |
543 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 10.9 A | 17.5A | Shielded | 16.4mOhm Max | - | 14MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
MPX1D1040LR68FIXED IND 680NH 23.1A 3.2MOHM SM KEMET |
437 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 23.1 A | 34.5A | Shielded | 3.2mOhm Max | - | 47MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1040L220FIXED IND 22UH 4.7A 76.1MOHM SMD KEMET |
436 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 4.7 A | 7A | Shielded | 76.1mOhm Max | - | 7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1040L1R5FIXED IND 1.5UH 17.7A 5.4MOHM SM KEMET |
435 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 17.7 A | 26A | Shielded | 5.4mOhm Max | - | 30MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
