固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1235L2R2FIXED IND 2.2UH 15.2A 8.4MOHM SM KEMET |
481 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 15.2 A | 23A | Shielded | 8.4mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
SBC8-102-761FIXED IND 1MH 760MA 780 MOHM TH KEMET |
1,124 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 760 mA | 1.1A | Unshielded | 780mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|

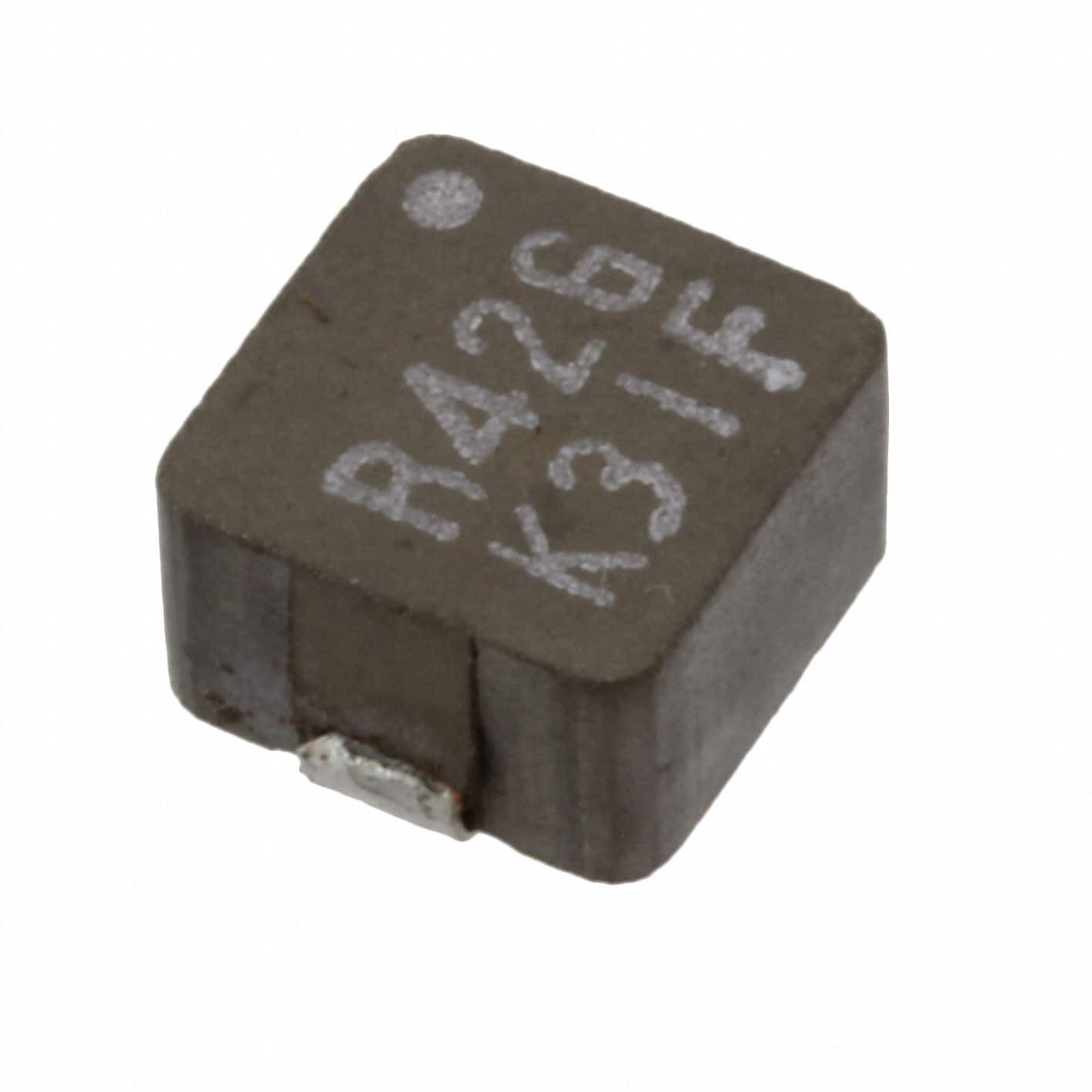

MPCG0740LR42FIXED IND 420NH 22A 1.55MOHM SMD KEMET |
2,000 |
|
规格书 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 420 nH | ±20% | 22 A | 20A | Shielded | 1.55mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|

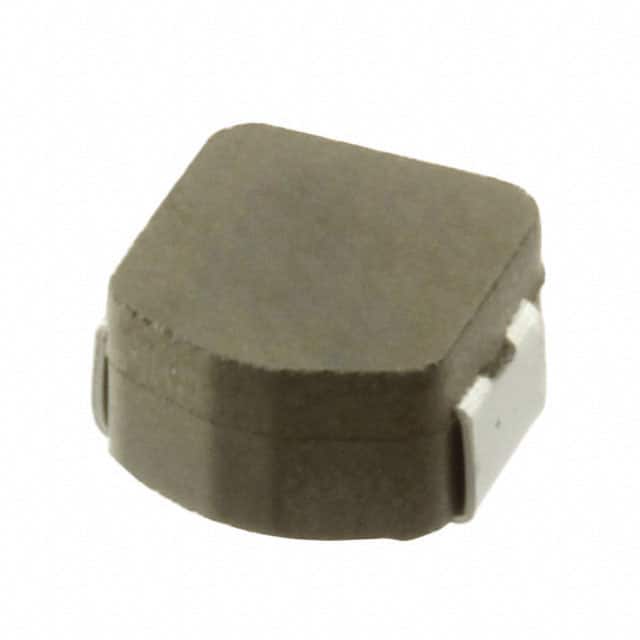

MPLCG0530LR22FIXED IND 220NH 14.1A 0.0037OHM KEMET |
5,732 |
|
规格书 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 14.1 A | 10.2A | Shielded | 3.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|

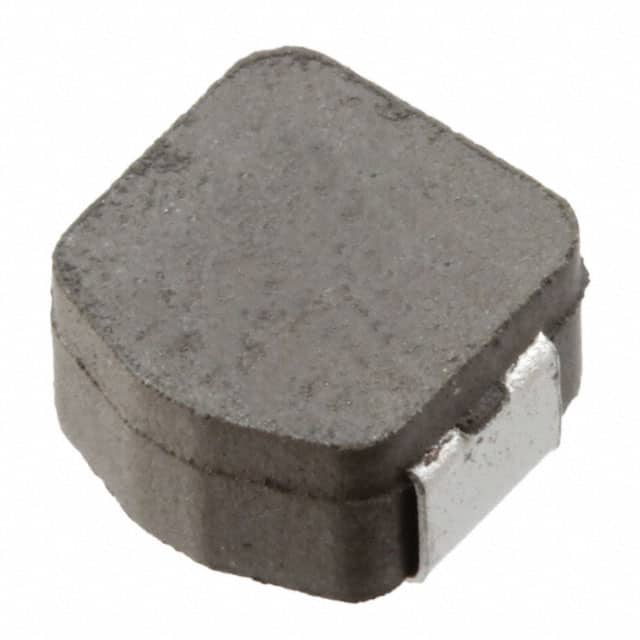

MPLCG0530LR33FIXED IND 330NH 10.3A 0.0073OHM KEMET |
1,445 |
|
规格书 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 10.3 A | 8.9A | Shielded | 7.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
MPLCG0530LR47FIXED IND 470NH 9.5A 0.0084OHM KEMET |
641 |
|
规格书 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 9.5 A | 8.9A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
MPLCG0530L1R0FIXED IND 1UH 7.4A 0.0146OHM SMD KEMET |
4,918 |
|
规格书 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 7.4 A | 5.6A | Shielded | 14.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
MPCG0730LR40FIXED IND 400NH 16A 2.6 MOHM SMD KEMET |
1,368 |
|
规格书 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 400 nH | ±20% | 16 A | 16A | Shielded | 2.6mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
|
SBC8-150-532FIXED IND 15UH 5.3A 30 MOHM TH KEMET |
134 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.3 A | 9.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
MPLC0730L1R0FIXED IND 1UH 10.6A 9 MOHM SMD KEMET |
12,085 |
|
规格书 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 10.6 A | 11A | Shielded | 9mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
