固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D0840LR22FIXED IND 220NH 35.4A 1.5MOHM SM KEMET |
1,965 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 35.4 A | 53A | Shielded | 1.5mOhm Max | - | 100MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
SBC2-101-671FIXED IND 100UH 670MA 410MOHM TH KEMET |
4,070 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 670 mA | 680mA | Unshielded | 410mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
|

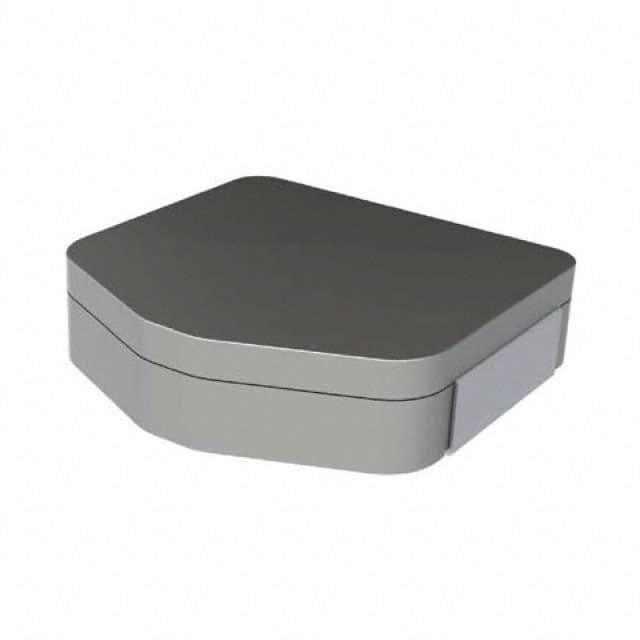

MPX1D1040L470FIXED IND 47UH 3A 182.6 MOHM SMD KEMET |
451 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 3 A | 4A | Shielded | 182.6mOhm Max | - | 4.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SBC9-220-312FIXED IND 22UH 3.1A 40 MOHM TH KEMET |
480 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.1 A | 6.2A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
|
MPXV1D0840L3R3FIXED IND 3.3UH 11.3A 14MOHM SMD KEMET |
6,826 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 11.3 A | 15A | Shielded | 14mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D0840L220FIXED IND 22UH 4.2A 98.3MOHM SMD KEMET |
1,995 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 4.2 A | 5.5A | Shielded | 98.3mOhm Max | - | 7.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D0840LR47FIXED IND 470NH 25.8A 2.7MOHM SM KEMET |
990 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 25.8 A | 38A | Shielded | 2.7mOhm Max | - | 59MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D0840L1R0FIXED IND 1UH 20.8A 4.2MOHM SMD KEMET |
803 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 20.8 A | 28A | Shielded | 4.2mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D0840L6R8FIXED IND 6.8UH 7.3A 33.4MOHM SM KEMET |
125 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 7.3 A | 9A | Shielded | 33.4mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
SBCP-80HY102HFIXED IND 1MH 400MA 1.89 OHM TH KEMET |
2,228 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 400 mA | 480mA | Unshielded | 1.89Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
