固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

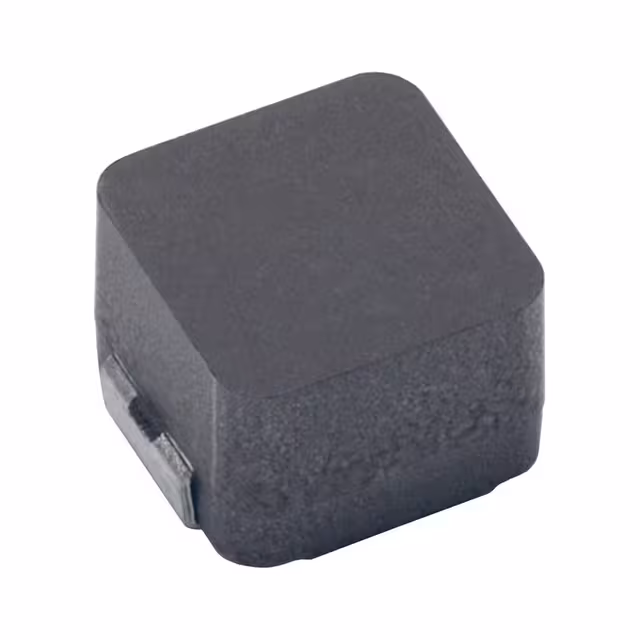

MPX1D0650L1R5FIXED IND 1.5UH 13.2A 8.3MOHM SM KEMET |
1,913 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 13.2 A | 12A | Shielded | 8.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
MPXV1D0618LR47FIXED IND 470NH 10.7A 8.5MOHM SM KEMET |
1,000 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 10.7 A | 17A | Shielded | 8.5mOhm Max | - | 95MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
MPXV1D0618LR22FIXED IND 220NH 13.7A 5.3MOHM SM KEMET |
990 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 13.7 A | 26A | Shielded | 5.3mOhm Max | - | 140MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
MPXV1D0624LR68FIXED IND 680NH 12.6A 7.8MOHM SM KEMET |
990 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 12.6 A | 16A | Shielded | 7.8mOhm Max | - | 57MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
MPXV1D0624LR33FIXED IND 330NH 17.2A 4.2MOHM SM KEMET |
712 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 17.2 A | 22.5A | Shielded | 4.2mOhm Max | - | 91MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
MPXV1D0624L6R8FIXED IND 6.8UH 4.3A 67.4MOHM SM KEMET |
693 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 4.3 A | 5.5A | Shielded | 67.4mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
MPXV1D0624L4R7FIXED IND 4.7UH 4.9A 50.6MOHM SM KEMET |
629 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 4.9 A | 6.5A | Shielded | 50.6mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
SBC4-332-161FIXED IND 3.3MH 160MA 7.69OHM TH KEMET |
1,976 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 160 mA | 260mA | Unshielded | 7.69Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
|
SBC4-222-211FIXED IND 2.2MH 210MA 4.97OHM TH KEMET |
1,633 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 210 mA | 320mA | Unshielded | 4.97Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
|
MPXV1D0830LR47FIXED IND 470NH 24A 3.1 MOHM SMD KEMET |
2,950 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 24 A | 30A | Shielded | 3.1mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
