固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D0830L2R2FIXED IND 2.2UH 11.4A 13.6 MOHM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 11.4 A | 14A | Shielded | 13.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
|
MPX1D0830L3R3FIXED IND 3.3UH 8.9A 22.3MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 8.9 A | 12.5A | Shielded | 22.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
|
MPX1D0830L4R7FIXED IND 4.7UH 7.7A 29.7MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 7.7 A | 10.5A | Shielded | 29.7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
|
MPX1D0830L6R8FIXED IND 6.8UH 6.8A 37.9MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.8 A | 10A | Shielded | 37.9mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
|
MPX1D0830L220FIXED IND 22UH 3.6A 134.5MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 3.6 A | 5A | Shielded | 134.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
SBC8-682-311FIXED IND 6.8MH 310MA 4.9 OHM TH KEMET |
0 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 310 mA | 440mA | Unshielded | 4.9Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.886" (22.50mm) |
|

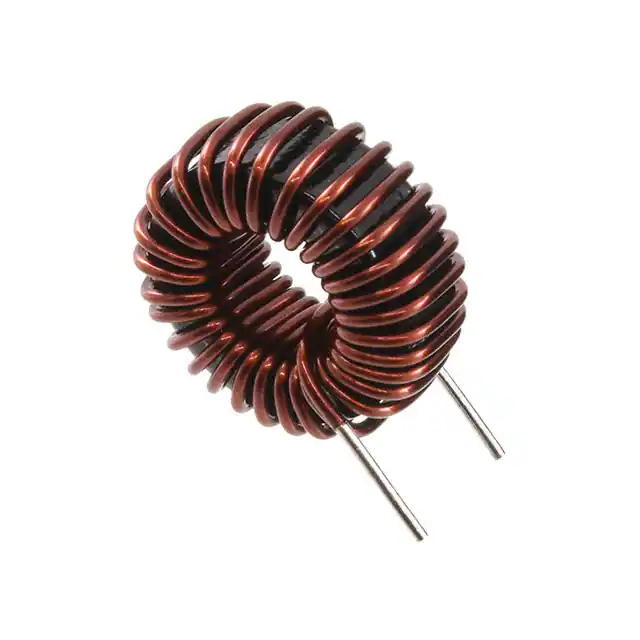

SNT-S20TCMC 6UH 1.5A 2LN TH KEMET |
0 |
|
规格书 |
SNT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 6 µH | - | 1.5 A | - | Unshielded | 35mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
|
|
SNT-S20TFCMC 6UH 1.5A 2LN TH KEMET |
0 |
|
规格书 |
SNT | Vertical, 2 PC Pin | Tape & Box (TB) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 6 µH | - | 1.5 A | - | Unshielded | 35mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
|
MPX1D0840LR22FIXED IND 220NH 35.4A 1.5MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 35.4 A | 53A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPX1D0840LR68FIXED IND 680NH 22.4A 3.6MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 22.4 A | 30A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
