固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-14HY3R3BFIXED IND 3.3UH 4.1A 20 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.1 A | 18.2A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SBCP-14HY220BFIXED IND 22UH 2.7A 60 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.7 A | 6.94A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SNT-D20TFCMC 10UH 1.5A 2LN TH KEMET |
0 |
|
规格书 |
SNT | Vertical, 2 PC Pin | Tape & Box (TB) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 10 µH | - | 1.5 A | - | Unshielded | 45mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.236" W (9.50mm x 6.00mm) | 0.500" (12.70mm) |
|

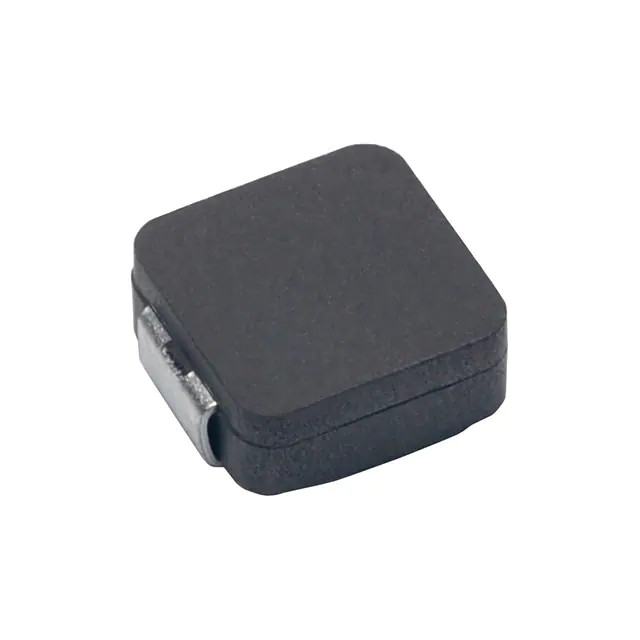

MPX1D0630LR10FIXED IND 100NH 31.1A 1.5MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 nH | ±20% | 31.1 A | 50A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPX1D0630LR15FIXED IND 150NH 27.6A 1.9MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 150 nH | ±20% | 27.6 A | 40A | Shielded | 1.9mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPX1D0630LR22FIXED IND 220NH 23.3A 2.6MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 23.3 A | 33A | Shielded | 2.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPX1D0630LR33FIXED IND 330NH 21.1A 3.2MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 21.1 A | 25A | Shielded | 3.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPX1D0630LR68FIXED IND 680NH 15.1A 6.2MOHM SM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 15.1 A | 17A | Shielded | 6.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPX1D0630L1R0FIXED IND 1UH 13.1A 8.2 MOHM SMD KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 13.1 A | 13A | Shielded | 8.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPX1D0630L1R5FIXED IND 1.5UH 10.5A 12.7 MOHM KEMET |
0 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 10.5 A | 11A | Shielded | 12.7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
