固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

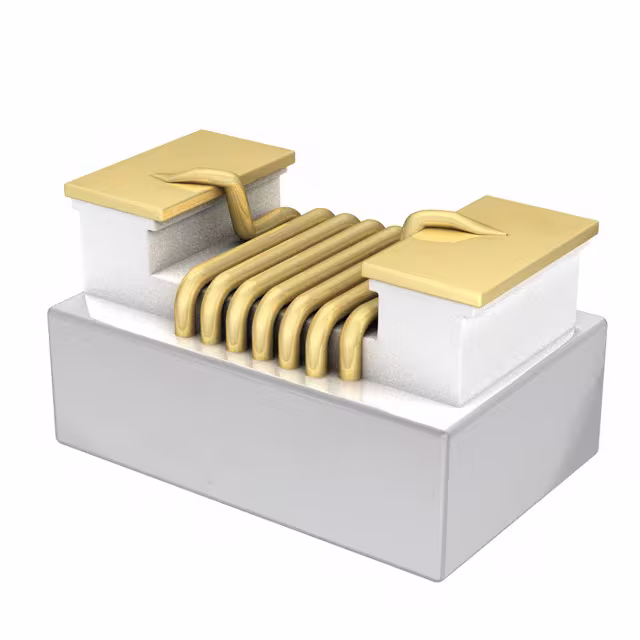

L-07W6N2SV4TFIXED IND 6.2NH 760MA 83MOHM SMD Johanson Technology Inc. |
0 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.2 nH | ±0.3nH | 760 mA | - | Unshielded | 83mOhm Max | 57 @ 900MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W6N8SV4TFIXED IND 6.8NH 680MA 83MOHM SMD Johanson Technology Inc. |
0 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.8 nH | ±0.3nH | 680 mA | - | Unshielded | 83mOhm Max | 58 @ 900MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W8N2SV4TFIXED IND 8.2NH 680MA 104MOHM SM Johanson Technology Inc. |
0 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 8.2 nH | ±0.3nH | 680 mA | - | Unshielded | 104mOhm Max | 60 @ 900MHz | 4.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W8N7SV4TFIXED IND 8.7NH 480MA 200MOHM SM Johanson Technology Inc. |
0 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 8.7 nH | ±0.3nH | 480 mA | - | Unshielded | 200mOhm Max | 60 @ 900MHz | 4.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
L-07W9N0SV4TFIXED IND 9NH 680MA 104 MOHM SMD Johanson Technology Inc. |
0 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 9 nH | ±0.3nH | 680 mA | - | Unshielded | 104mOhm Max | 60 @ 900MHz | 4.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
.jpg)
|
L-14W24NGV4EFIXED IND 24NH 700MA 220MOHM SMD Johanson Technology Inc. |
0 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 24 nH | ±2% | 700 mA | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
L-14W36NGV4EFIXED IND 36NH 600MA SMD Johanson Technology Inc. |
0 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 36 nH | ±2% | 600 mA | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
L-14W40NGV4EFIXED IND 40NH 600MA SMD Johanson Technology Inc. |
0 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 40 nH | ±2% | 600 mA | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
LRW0603WJ16NGG001EFIXED IND 16NH 700MA 170MOHM SMD Johanson Technology Inc. |
0 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±5% | 700 mA | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
LRW0603WK16NGG001EFIXED IND 16NH 700MA 170MOHM SMD Johanson Technology Inc. |
0 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±10% | 700 mA | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
