上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC157181B-102KPFC CHOKE 1000.0UH 9.0A 279.0M ITG Electronics, Inc. |
12 |
|
规格书 |
PFC157181B | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 1 mH | ±10% | 3.6 A | 4.7A | Unshielded | 279mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.496" L x 0.768" W (38.00mm x 19.50mm) | 1.772" (45.00mm) |
|
|
PFC157181B-821KPFC CHOKE 820.0UH 9.9A 198.0M ITG Electronics, Inc. |
12 |
|
规格书 |
PFC157181B | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 820 µH | ±10% | 4.3 A | 5.2A | Unshielded | 198mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.496" L x 0.768" W (38.00mm x 19.50mm) | 1.772" (45.00mm) |
|
|
PFC157181B-691KPFC CHOKE 690.0UH 10.8A 143.0M ITG Electronics, Inc. |
12 |
|
规格书 |
PFC157181B | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 690 µH | ±10% | 5.1 A | 5.6A | Unshielded | 143mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.516" L x 0.768" W (38.50mm x 19.50mm) | 1.791" (45.50mm) |
|
|
PFC157181B-351KPFC CHOKE 350.0UH 15.1A 62.5M ITG Electronics, Inc. |
12 |
|
规格书 |
PFC157181B | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 350 µH | ±10% | 8.1 A | 7.9A | Unshielded | 62.5mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.535" L x 0.787" W (39.00mm x 20.00mm) | 1.811" (46.00mm) |
|

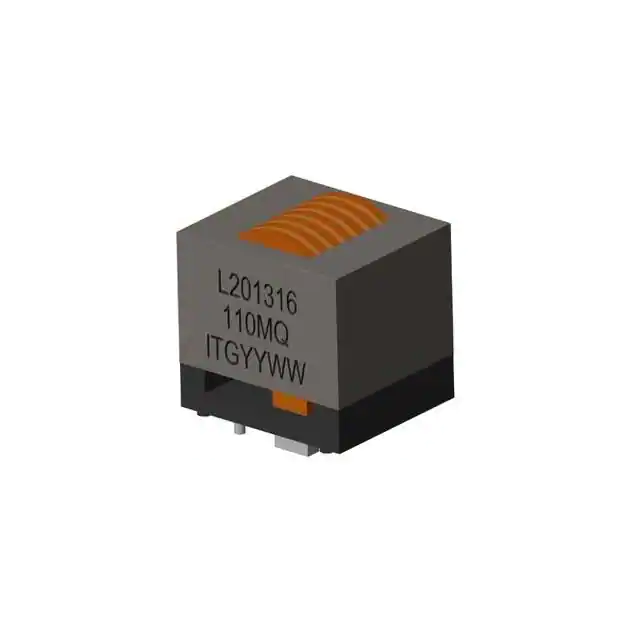

L201316Q-2R0MHF2.0UH, 20%, 0.31MOHM, 76.0A MAX. ITG Electronics, Inc. |
9 |
|
规格书 |
L201316Q | 2-DIP | Tray | Active | Drum Core, Wirewound | Alloy Powder | 2 µH | ±20% | 106 A | 50A | - | 0.31mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 10 kHz | - | Through Hole | 2-DIP | 1.299" L x 0.669" W (33.00mm x 17.00mm) | 1.244" (31.60mm) |
|
|
PFC167193B-201KPFC CHOKE 200.0UH 21.2A 38.0 M ITG Electronics, Inc. |
9 |
|
规格书 |
PFC167193B | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Alloy Powder | 200 µH | ±20% | 11.1 A | 11A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.673" L x 0.709" W (42.50mm x 18.00mm) | 1.811" (46.00mm) |
|
|
PFC167193B-561KPFC CHOKE 560.0UH 12.7A 111.0 M ITG Electronics, Inc. |
9 |
|
规格书 |
PFC167193B | Vertical, 4 PC Pin | Bulk | Active | Toroidal | Alloy Powder | 560 µH | ±20% | 6.1 A | 6.6A | Unshielded | 111mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.634" L x 0.768" W (41.50mm x 19.50mm) | 1.909" (48.50mm) |
|
|
PFC167193B-102KPFC CHOKE 1000.0UH 9.4A 228.5 M ITG Electronics, Inc. |
9 |
|
规格书 |
PFC167193B | Vertical, 4 PC Pin | Bulk | Active | Toroidal | Alloy Powder | 1 mH | ±20% | 4.2 A | 4.9A | Unshielded | - | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.634" L x 0.768" W (41.50mm x 19.50mm) | 1.909" (48.50mm) |
|
|
PFC130156B-251KPFC CHOKE 250.0UH 15.8AMP 56.0M ITG Electronics, Inc. |
16 |
|
规格书 |
PFC130156B | Vertical, 4 PC Pin | Bulk | Active | Toroidal | Alloy Powder | 250 µH | ±10% | 7.4 A | 8.1A | Unshielded | 56mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.280" L x 0.709" W (32.50mm x 18.00mm) | 1.535" (39.00mm) |
|
|
PFC130156B-201KPFC CHOKE 200.0UH 17.6AMP 43.5M ITG Electronics, Inc. |
16 |
|
规格书 |
PFC130156B | Vertical, 4 PC Pin | Bulk | Active | Toroidal | Alloy Powder | 200 µH | ±10% | 8.5 A | 9A | Unshielded | 43.5mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.299" L x 0.709" W (33.00mm x 18.00mm) | 1.555" (39.50mm) |
