固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

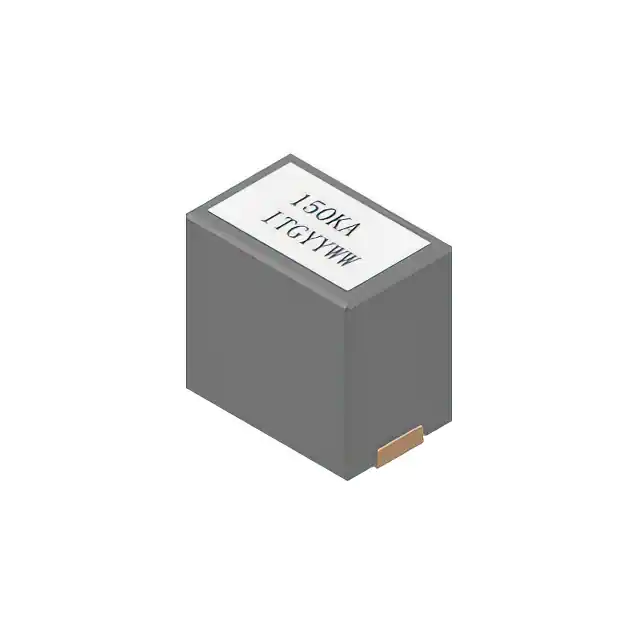

FB13A-150K0.15UH, 10%, 0.17MOHM, 75AMP MAX ITG Electronics, Inc. |
500 |
|
规格书 |
FB13A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 66 A | 75A | Unshielded | 170mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.354" (9.00mm) |
|
SQ4126-1R0MHF-CT1uH, 20%, 2.2mOhm, 26Amp Max. SM ITG Electronics, Inc. |
220 |
|
规格书 |
SQ4126 | Nonstandard | Strip | Active | Wirewound | Ferrite | 1 µH | ±20% | 16 A | 26A | Unshielded | 2.8mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.323" W (10.30mm x 8.20mm) | 0.262" (6.65mm) |
|
|
SQ4126-R68MHF-CT0.68uH, 20%, 1.2mOhm, 29Amp Max. ITG Electronics, Inc. |
120 |
|
规格书 |
SQ4126 | Nonstandard | Strip | Active | Wirewound | Ferrite | 680 nH | ±20% | 26 A | 29A | Unshielded | 1.39mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.323" W (10.30mm x 8.20mm) | 0.262" (6.65mm) |
|

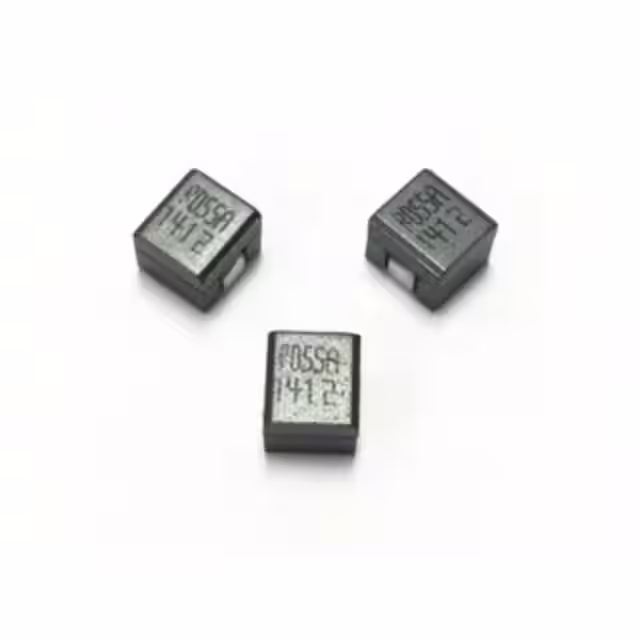

SL2218A-R055LHFFIXED IND 55NH 34A 0.2 MOHM SMD ITG Electronics, Inc. |
100 |
|
规格书 |
SL2218 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 55 nH | ±15% | 34 A | 63A | Shielded | 0.2mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.217" W (5.70mm x 5.50mm) | 0.181" (4.60mm) |
|
|
SL25266A-R20MHF0.2uH 0.23mOhm 25Amp Max. SMD ITG Electronics, Inc. |
100 |
|
规格书 |
SL25266 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 200 nH | ±20% | 35 A | 20A | Unshielded | 0.23mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.256" (6.50mm) |
|
|
SL25266A-R10LHF0.1uH 0.23mOhm 53Amp Max. SMD ITG Electronics, Inc. |
100 |
|
规格书 |
SL25266 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 100 nH | ±15% | 35 A | 45A | Unshielded | 0.23mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.256" (6.50mm) |
|
|
SLM534214A-R47MHF-CT0.47uH, 20%, 0.42mOhm, 81Amp Max ITG Electronics, Inc. |
90 |
|
规格书 |
SLM534214 | Nonstandard | Strip | Active | Molded | Ferrite | 470 nH | ±20% | 44 A | 81A | Unshielded | 0.42mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|
|
SLM474712A-R47MHF-CT0.47uH, 20%, 0.69mOhm, 67Amp Max ITG Electronics, Inc. |
90 |
|
规格书 |
SLM474712 | Nonstandard | Strip | Active | Molded | Ferrite | 470 nH | ±20% | 43 A | 67A | Unshielded | 0.69mOhm | - | - | - | -55°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.469" W (12.00mm x 11.90mm) | 0.465" (11.80mm) |
|
SL29327A-100L100NH, 15%, 0.2MOHM, 65.0AMP MAX ITG Electronics, Inc. |
100 |
|
规格书 |
SL29327A | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 63 A | 65A | - | 0.2mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 2-SMD | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.315" (8.00mm) |
|
|
SL29327A-70L70NH, 15%, 0.2MOHM, 92.0AMP MAX, ITG Electronics, Inc. |
100 |
|
规格书 |
SL29327A | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±15% | 63 A | 92A | - | 0.2mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 2-SMD | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.315" (8.00mm) |
