固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

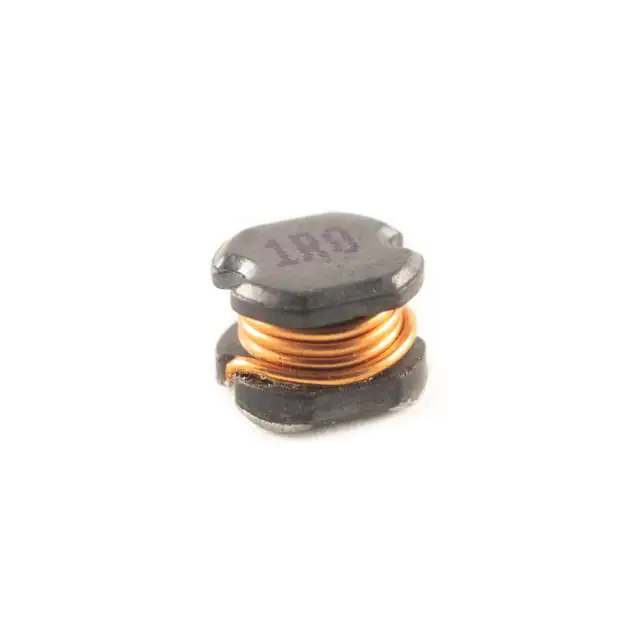

PC0403-102K-RC1000UH 10% POWER CHIP INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 140 mA | - | Unshielded | 15.6Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
MLC05-R33M-RC.33UH 20% 0603 MULTILAYER CHIP Allied Components International |
0 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±20% | 35 mA | - | Shielded | 850mOhm Max | 25 @ 25MHz | 125MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MLC10-R33K-RC.33UH 10% 0704 MULTILAYER CHIP Allied Components International |
0 |
|
规格书 |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±10% | 250 mA | - | Shielded | 550mOhm Max | 25 @ 25MHz | 145MHz | - | -25°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
AE90-470K-RC47UH 10% AXIAL EPOXY COATED Allied Components International |
0 |
|
规格书 |
AE90 | Axial | Bag | Active | Wirewound | - | 47 µH | ±10% | 1.8 A | 2.1A | Unshielded | 180mOhm Max | 30 @ 2.52MHz | 4.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-682K-RC6800UH 10% AXIAL EPOXY COATED Allied Components International |
0 |
|
规格书 |
AE90 | Axial | Bag | Active | Wirewound | - | 6.8 mH | ±10% | 150 mA | 180mA | Unshielded | 26Ohm Max | 25 @ 252kHz | 290kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-220K-RC22UH 10% AXIAL EPOXY COATED Allied Components International |
0 |
|
规格书 |
AE90 | Axial | Bag | Active | Wirewound | - | 22 µH | ±10% | 2.03 A | 3.1A | Unshielded | 150mOhm Max | 50 @ 2.52MHz | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-103K-RC10MH 10% AXIAL EPOXY COATED Allied Components International |
0 |
|
规格书 |
AE90 | Axial | Bag | Active | Wirewound | - | 10 mH | ±10% | 120 mA | 150mA | Unshielded | 40Ohm Max | 60 @ 79.6kHz | 200kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-333K-RC33MH 10% AXIAL EPOXY COATED Allied Components International |
0 |
|
规格书 |
AE90 | Axial | Bag | Active | Wirewound | - | 33 mH | ±10% | 67 mA | 85mA | Unshielded | 130Ohm Max | 50 @ 79.6kHz | 140kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
CHQ05-16NG-RC16NH 2% CERAMIC CORE HI. Q CHIP Allied Components International |
0 |
|
规格书 |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 16 nH | ±2% | 1.5 A | - | Unshielded | 60mOhm Max | 72 @ 500MHz | 2.95GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-51NG-RC51NH 2% CERAMIC CORE HI. Q CHIP Allied Components International |
0 |
|
规格书 |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 51 nH | ±2% | 1 A | - | Unshielded | 120mOhm Max | 65 @ 500MHz | 1.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
