固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCSV80-3R3M-RC3.3UH 20% SHIELDED PWR INDUCTOR Allied Components International |
0 |
|
规格书 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6 A | 7.5A | Shielded | 15mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

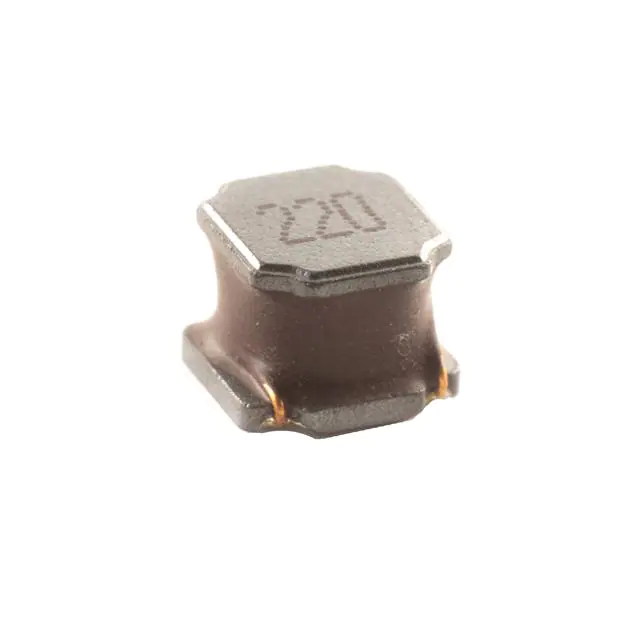

PCSV54-100M-RC10UH 20% SMD PWR CHIP INDUCTOR Allied Components International |
0 |
|
规格书 |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.2 A | 2.8A | Shielded | 60mOhm | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-2R0M-RC2.0UH 20% SHIELDED PWR INDUCTOR Allied Components International |
0 |
|
规格书 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 7.4 A | 9.6A | Shielded | 11mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV54-470M-RC47UH 20% SMD PWR CHIP INDUCTOR Allied Components International |
0 |
|
规格书 |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 900 mA | 1.2A | Shielded | 310mOhm | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-121M-RC120UH 20% SHIELDED PWR INDUCTOR Allied Components International |
0 |
|
规格书 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 121 µH | ±20% | 1 A | 1.1A | Shielded | 425mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-6R8M-RC6.8UH 20% SHIELDED PWR INDUCTOR Allied Components International |
0 |
|
规格书 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 5.1 A | 5.4A | Shielded | 25mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-4R7M-RC4.7UH 20% SHIELDED PWR INDUCTOR Allied Components International |
0 |
|
规格书 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.5 A | 6A | Shielded | 18mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
PCSV62-220M-RC22UH 20% SMD PWR CHIP INDUCTOR Allied Components International |
0 |
|
规格书 |
- | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.5 A | 1.6A | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
ASPC80-104K-RC100MH 10% PWR SHIELDED INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Axial | Bag | Active | - | - | 100 mH | ±10% | 176 mA | - | Shielded | 8.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|

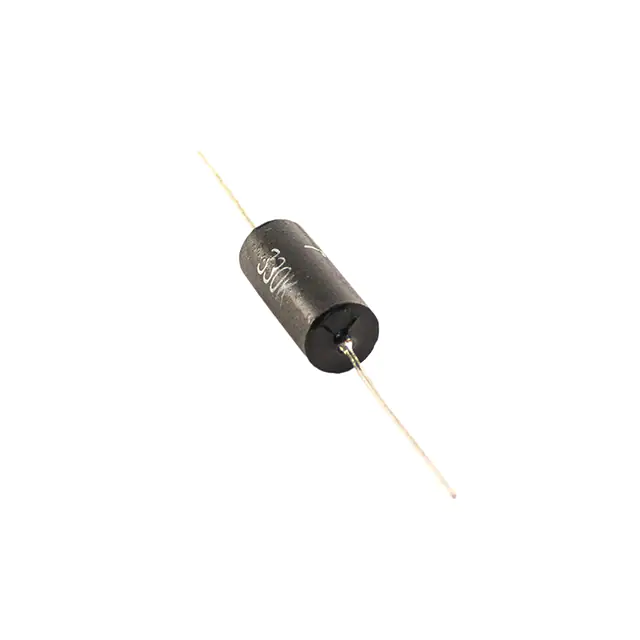

ASPC60-501K-RC500UH 10% PWR SHIELDED INDUCTOR Allied Components International |
0 |
|
规格书 |
- | Axial | Bag | Active | - | - | 500 µH | ±10% | 880 mA | 44mA | Shielded | 390Ohm Max | 25 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.273" Dia x 0.530" L (6.94mm x 13.46mm) | - |
