场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFC52N30PMOSFET N-CH 300V 24A ISOPLUS220 IXYS |
0 | - |
|
- |
PolarHT™ HiPerFET™ | ISOPLUS220™ | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 24A (Tc) | 10V | 75mOhm @ 26A, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3490 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC74N20PMOSFET N-CH 200V 35A ISOPLUS220 IXYS |
0 | - |
|
- |
PolarHT™ HiPerFET™ | ISOPLUS220™ | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 35A (Tc) | 10V | 36mOhm @ 37A, 10V | 5V @ 4mA | 107 nC @ 10 V | ±20V | 3300 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC96N15PMOSFET N-CH 150V 42A ISOPLUS220 IXYS |
0 | - |
|
- |
PolarHT™ HiPerFET™ | ISOPLUS220™ | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 42A (Tc) | 10V | 26mOhm @ 48A, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3500 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC13N50MOSFET N-CH 500V 12A ISOPLUS220 IXYS |
0 | - |
|
- |
HiPerFET™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 400mOhm @ 6.5A, 10V | 4V @ 2.5mA | 120 nC @ 10 V | ±20V | 2800 pF @ 25 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC14N80PMOSFET N-CH 800V 8A ISOPLUS220 IXYS |
0 | - |
|
规格书 |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 770mOhm @ 7A, 10V | 5.5V @ 4mA | 61 nC @ 10 V | ±30V | 3900 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

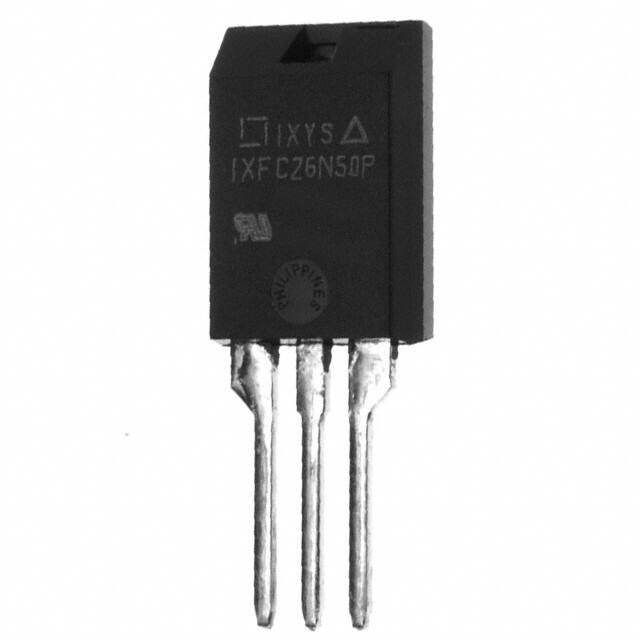

IXFC26N50PMOSFET N-CH 500V 15A ISOPLUS220 IXYS |
0 | - |
|
- |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 260mOhm @ 13A, 10V | 5.5V @ 4mA | 65 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC22N60PMOSFET N-CH 600V 12A ISOPLUS220 IXYS |
0 | - |
|
- |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 360mOhm @ 11A, 10V | 5V @ 4mA | 58 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
.jpg)
|
IXTH48N20MOSFET N-CH 200V 48A TO247 IXYS |
0 | - |
|
- |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 48A (Tc) | 10V | 50mOhm @ 15A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 275W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXTT50P085MOSFET P-CH 85V 50A TO268 IXYS |
0 | - |
|
- |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 85 V | 50A (Tc) | 10V | 55mOhm @ 25A, 10V | 5V @ 250µA | 150 nC @ 10 V | ±20V | 4200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|

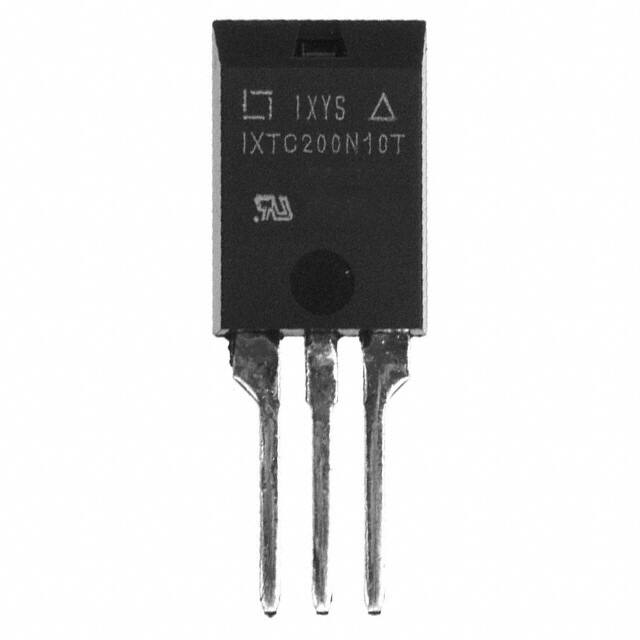

IXTC200N10TMOSFET N-CH 100V 101A ISOPLUS220 IXYS |
0 | - |
|
- |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 101A (Tc) | 10V | 6.3mOhm @ 50A, 10V | 4.5V @ 250µA | 152 nC @ 10 V | ±30V | 9400 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
