场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

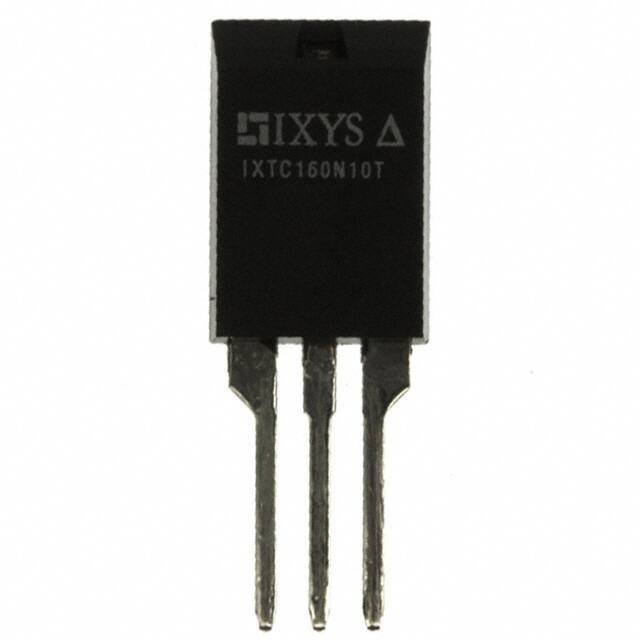

IXTC160N10TMOSFET N-CH 100V 83A ISOPLUS220 IXYS |
0 | - |
|
- |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 83A (Tc) | 10V | 7.5mOhm @ 25A, 10V | 4.5V @ 250µA | 132 nC @ 10 V | ±20V | 6600 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTA3N110-TRLMOSFET N-CH 1100V 3A TO263 IXYS |
0 | - |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1100 V | 3A (Tc) | 10V | 4Ohm @ 1.5A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IXFQ14N80PMOSFET N-CH 800V 14A TO3P IXYS |
0 | - |
|
规格书 |
HiPerFET™, Polar | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 720mOhm @ 500mA, 10V | 5.5V @ 4mA | 61 nC @ 10 V | ±30V | 3900 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
IXTA230N04T4MOSFET N-CH 40V 230A TO263AA IXYS |
0 | - |
|
规格书 |
Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 230A (Tc) | 10V | 2.9mOhm @ 115A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±15V | 7400 pF @ 25 V | - | 340W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTT1N100MOSFET N-CH 1000V 1.5A TO268 IXYS |
0 | - |
|
- |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1.5A (Tc) | 10V | 11Ohm @ 1A, 10V | 4.5V @ 25µA | 23 nC @ 10 V | ±20V | 480 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
|
IXTQ150N06PMOSFET N-CH 60V 150A TO3P IXYS |
0 | - |
|
- |
Polar | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 150A (Tc) | 10V | 10mOhm @ 75A, 10V | 5V @ 250µA | 118 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3P |
|
|
IXFA24N60XMOSFET N-CH 600V 24A TO263AA IXYS |
0 | - |
|
规格书 |
HiPerFET™, Ultra X | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 175mOhm @ 12A, 10V | 4.5V @ 2.5mA | 47 nC @ 10 V | ±30V | 1910 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
IXKC15N60C5MOSFET N-CH 600V 15A ISOPLUS220 IXYS |
0 | - |
|
规格书 |
CoolMOS™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 165mOhm @ 12A, 10V | 3.5V @ 900µA | 52 nC @ 10 V | ±20V | 2000 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXFH220N06T3MOSFET N-CH 60V 220A TO247 IXYS |
0 | - |
|
规格书 |
HiperFET™, TrenchT3™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 4mOhm @ 100A, 10V | 4V @ 250µA | 136 nC @ 10 V | ±20V | 8500 pF @ 25 V | - | 440W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
|
IXFC12N80PMOSFET N-CH 800V 7A ISOPLUS220 IXYS |
0 | - |
|
规格书 |
HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 930mOhm @ 6A, 10V | 5.5V @ 2.5mA | 51 nC @ 10 V | ±30V | 2800 pF @ 25 V | - | 120W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
