场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

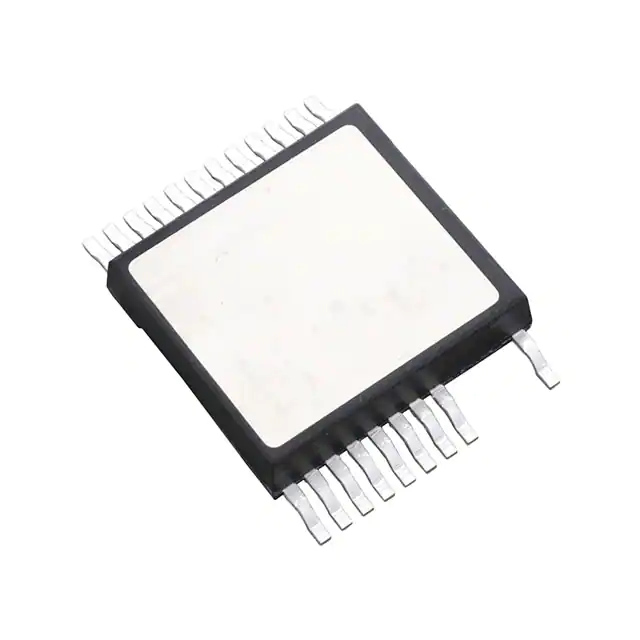

MMIX1T600N04T2MOSFET N-CH 40V 600A 24SMPD IXYS |
0 | - |
|
规格书 |
FRFET®, SupreMOS® | 24-PowerSMD, 21 Leads | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 600A (Tc) | 10V | 1.3mOhm @ 100A, 10V | 3.5V @ 250µA | 590 nC @ 10 V | ±20V | 40000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
IXTK8N150LMOSFET N-CH 1500V 8A TO264 IXYS |
0 | - |
|
规格书 |
Linear | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1500 V | 8A (Tc) | 20V | 3.6Ohm @ 4A, 20V | 8V @ 250µA | 250 nC @ 15 V | ±30V | 8000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
|
MMIX1T132N50P3MOSFET N-CH 500V 63A POLAR3 IXYS |
0 | - |
|
规格书 |
Polar™ | 24-PowerSMD, 22 Leads | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 63A (Tc) | 10V | 43mOhm @ 66A, 10V | 5V @ 8mA | 267 nC @ 10 V | ±30V | 18600 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Polar3™ |
|
IXFN44N100PMOSFET N-CH 1000V 37A SOT-227B IXYS |
0 | - |
|
规格书 |
HiPerFET™, Polar | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 37A (Tc) | 10V | 220mOhm @ 22A, 10V | 6.5V @ 1mA | 305 nC @ 10 V | ±30V | 19000 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
MMIX1T550N055T2MOSFET N-CH 55V 550A 24SMPD IXYS |
4 | - |
|
规格书 |
FRFET®, SupreMOS® | 24-PowerSMD, 21 Leads | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 550A (Tc) | 10V | 1.3mOhm @ 100A, 10V | 3.8V @ 250µA | 595 nC @ 10 V | ±20V | 40000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
|
IXFN100N50Q3MOSFET N-CH 500V 82A SOT227B IXYS |
3 | - |
|
规格书 |
HiPerFET™, Q3 Class | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 82A (Tc) | 10V | 49mOhm @ 50A, 10V | 6.5V @ 8mA | 255 nC @ 10 V | ±30V | 13800 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXKN45N80CMOSFET N-CH 800V 44A SOT-227B IXYS |
0 | - |
|
规格书 |
CoolMOS™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 44A (Tc) | 10V | 74mOhm @ 44A, 10V | 3.9V @ 4mA | 360 nC @ 10 V | ±20V | - | - | 380W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN74N100XMOSFET N-CH 1000V 74A SOT227B IXYS |
0 | - |
|
规格书 |
HiPerFET™, Ultra X | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 74A (Tc) | 10V | 66mOhm @ 37A, 10V | 5.5V @ 8mA | 425 nC @ 10 V | ±30V | 17000 pF @ 25 V | - | 1170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
IXFP130N15X3MOSFET N-CH 150V 130A TO220AB IXYS |
1 | - |
|
规格书 |
HiPerFET™, Ultra X3 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 130A (Tc) | 10V | 9mOhm @ 65A, 10V | 4.5V @ 1.5mA | 80 nC @ 10 V | ±20V | 5230 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
.jpg)
|
IXTH450P2MOSFET N-CH 500V 16A TO247 IXYS |
0 | - |
|
规格书 |
PolarP2™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 330mOhm @ 8A, 10V | 4.5V @ 250µA | 43 nC @ 10 V | ±30V | 2530 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
