场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STW30NM60NDMOSFET N-CH 600V 25A TO247-3 STMicroelectronics |
0 | - |
|
规格书 |
FDmesh™ II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 130mOhm @ 12.5A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±25V | 2800 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STL34N65M5MOSFET N-CH 650V 3.2A PWRFLAT88 STMicroelectronics |
0 | - |
|
规格书 |
MDmesh™ V | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22.5A (Tc) | 10V | 120mOhm @ 12A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2700 pF @ 100 V | - | 2.8W (Ta), 150W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
|

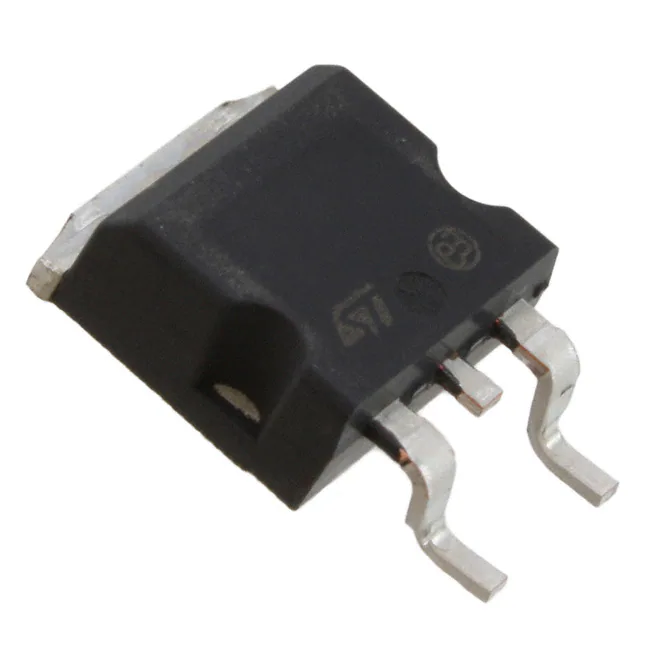

STH300NH02L-6MOSFET N-CH 24V 180A H2PAK STMicroelectronics |
0 | - |
|
规格书 |
STripFET™ III | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 24 V | 180A (Tc) | 5V, 10V | 1.2mOhm @ 80A, 10V | 1V @ 250µA | 109 nC @ 10 V | ±20V | 7050 pF @ 15 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | H2PAK |
|
STF30NM60NDMOSFET N-CH 600V 25A TO220FP STMicroelectronics |
0 | - |
|
规格书 |
FDmesh™ II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 130mOhm @ 12.5A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 2800 pF @ 50 V | - | 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STW26NM60MOSFET N-CH 600V 30A TO247-3 STMicroelectronics |
0 | - |
|
规格书 |
MDmesh™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 135mOhm @ 13A, 10V | 5V @ 250µA | 102 nC @ 10 V | ±30V | 2900 pF @ 25 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STI30NM60NMOSFET N-CH 600V 25A I2PAK STMicroelectronics |
0 | - |
|
规格书 |
MDmesh™ II | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 130mOhm @ 12.5A, 10V | 4V @ 250µA | 91 nC @ 10 V | ±30V | 2700 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
SCT10N120HSICFET N-CH 1200V 12A H2PAK-2 STMicroelectronics |
0 | - |
|
规格书 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 12A (Tc) | 20V | 690mOhm @ 6A, 20V | 3.5V @ 250µA | 22 nC @ 20 V | +25V, -10V | 290 pF @ 400 V | - | 150W (Tc) | -55°C ~ 200°C (TJ) | - | - | Surface Mount | H2Pak-2 |
|
STW68N65DM6DISCRETE STMicroelectronics |
0 | - |
|
- |
- | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 55A (Tc) | 10V | 59mOhm @ 24A, 10V | 4.75V @ 250µA | 80 nC @ 10 V | ±25V | 3528 pF @ 100 V | - | 431W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
STI42N65M5MOSFET N-CH 650V 33A I2PAK STMicroelectronics |
0 | - |
|
规格书 |
MDmesh™ V | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 33A (Tc) | 10V | 79mOhm @ 16.5A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±25V | 4650 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | I2PAK |
|
STB11NM60FDT4MOSFET N-CH 600V 11A D2PAK STMicroelectronics |
0 | - |
|
规格书 |
FDmesh™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 450mOhm @ 5.5A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 900 pF @ 25 V | - | 160W (Tc) | - | - | - | Surface Mount | D2PAK |
