场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STF12N50DM2MOSFET N-CH 500V 11A TO220FP STMicroelectronics |
981 | - |
|
规格书 |
MDmesh™ DM2 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 11A (Tc) | 10V | 350mOhm @ 5.5A, 10V | 5V @ 250µA | 16 nC @ 10 V | ±25V | 628 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STP11NK40ZMOSFET N-CH 400V 9A TO220AB STMicroelectronics |
1,003 | - |
|
规格书 |
SuperMESH™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 9A (Tc) | 10V | 550mOhm @ 4.5A, 10V | 4.5V @ 100µA | 32 nC @ 10 V | ±30V | 930 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STF16N60M2MOSFET N-CH 600V 12A TO220FP STMicroelectronics |
132 | - |
|
规格书 |
MDmesh™ M2 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±25V | 700 pF @ 100 V | - | 25W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
;;2.jpg)
|
STD7N80K5MOSFET N-CH 800V 6A DPAK STMicroelectronics |
11,891 | - |
|
规格书 |
SuperMESH5™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 1.2Ohm @ 3A, 10V | 5V @ 100µA | 13.4 nC @ 10 V | ±30V | 360 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|

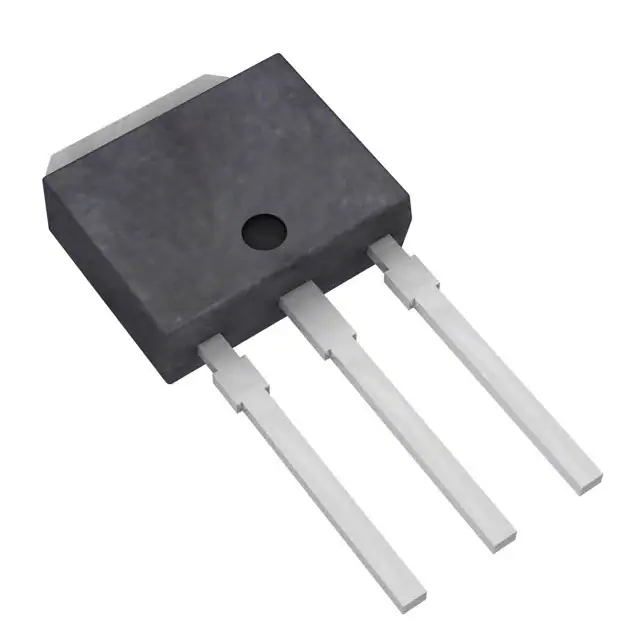

STU6N95K5MOSFET N-CH 950V 9A IPAK STMicroelectronics |
2,563 | - |
|
规格书 |
SuperMESH5™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 9A (Tc) | 10V | 1.25Ohm @ 3A, 10V | 5V @ 100µA | 13 nC @ 10 V | ±30V | 450 pF @ 100 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
STB5N80K5MOSFET N-CH 800V 4A D2PAK STMicroelectronics |
135 | - |
|
规格书 |
MDmesh™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.75Ohm @ 2A, 10V | 5V @ 100µA | 5 nC @ 10 V | ±30V | 177 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
STF140N6F7MOSFET N-CH 60V 70A TO220FP STMicroelectronics |
884 | - |
|
规格书 |
STripFET™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 70A (Tc) | 10V | 3.5mOhm @ 35A, 10V | 4V @ 250µA | 55 nC @ 10 V | ±20V | 3100 pF @ 25 V | - | 33W (Tc) | 175°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STD60NF06T4MOSFET N-CH 60V 60A DPAK STMicroelectronics |
2,093 | - |
|
规格书 |
STripFET™ II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 10V | 16mOhm @ 30A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±20V | 1810 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
|
STD7LN80K5MOSFET N-CH 800V 5A DPAK STMicroelectronics |
9,937 | - |
|
规格书 |
MDmesh™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5A (Tc) | 10V | 1.15Ohm @ 2.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 270 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STU7LN80K5MOSFET N-CH 800V 5A IPAK STMicroelectronics |
3,000 | - |
|
规格书 |
MDmesh™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5A (Tc) | 10V | 1.15Ohm @ 2.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 270 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
