场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDP2710-F085MOSFET N-CH 250V 4A TO220-3 onsemi |
0 | - |
|
规格书 |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 4A (Ta) | 10V | 47mOhm @ 50A, 10V | 5V @ 250µA | 101 nC @ 10 V | ±30V | 5690 pF @ 25 V | - | 403W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
FQP2N40-F080MOSFET N-CH 400V 1.8A TO220-3 onsemi |
0 | - |
|
规格书 |
QFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 1.8A (Tc) | 10V | 5.8Ohm @ 900mA, 10V | 5V @ 250µA | 5.5 nC @ 10 V | ±30V | 150 pF @ 25 V | - | 40W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
HUFA75852G3-F085MOSFET N-CH 150V 75A TO247-3 onsemi |
0 | - |
|
- |
UltraFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 75A (Tc) | 10V | 16mOhm @ 75A, 10V | 4V @ 250µA | 480 nC @ 20 V | ±20V | 7690 pF @ 25 V | - | 500W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
FDB8832-F085MOSFET N-CH 30V 34A TO263AB onsemi |
0 | - |
|
规格书 |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 34A (Ta) | 4.5V, 10V | 1.9mOhm @ 80A, 10V | 3V @ 250µA | 265 nC @ 10 V | ±20V | 11400 pF @ 15 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FDB8896-F085MOSFET N-CH 30V 19A/93A TO263AB onsemi |
0 | - |
|
规格书 |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 19A (Ta), 93A (Tc) | 4.5V, 10V | 5.7mOhm @ 35A, 10V | 2.5V @ 250µA | 67 nC @ 10 V | ±20V | 2525 pF @ 15 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
|
HUFA75639S3ST-F085AMOSFET N-CH 100V 56A D2PAK onsemi |
0 | - |
|
规格书 |
UltraFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 10V | 25mOhm @ 56A, 10V | 4V @ 250µA | 130 nC @ 20 V | ±20V | 2000 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|

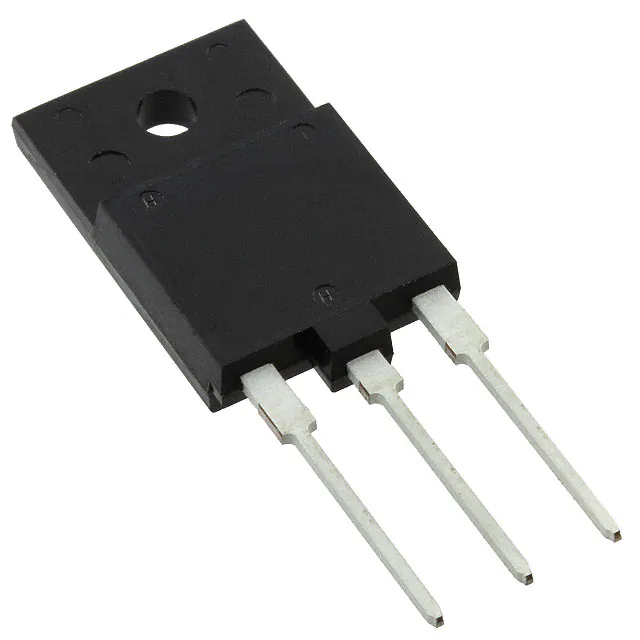

NDUL03N150CGMOSFET N-CH 1500V 2.5A TO3P onsemi |
0 | - |
|
规格书 |
- | TO-3PL | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2.5A (Ta) | 10V | 10.5Ohm @ 1.25A, 10V | - | 34 nC @ 10 V | ±30V | 650 pF @ 30 V | - | 3W (Ta), 50W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(L) |
|
FDMS5362L-F085MOSFET N-CH 60V 17.6A POWER56 onsemi |
0 | - |
|
规格书 |
PowerTrench® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 17.6A (Tc) | 4.5V, 10V | 33mOhm @ 17.6A, 10V | 3V @ 250µA | 21 nC @ 10 V | ±20V | 878 pF @ 25 V | - | 41.7W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
|
FDMC4435BZ-F126MOSFET P-CH 30V 8.5A/18A 8MLP onsemi |
0 | - |
|
规格书 |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 8.5A (Ta), 18A (Tc) | 4.5V, 10V | 20mOhm @ 8.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2045 pF @ 15 V | - | 2.3W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|

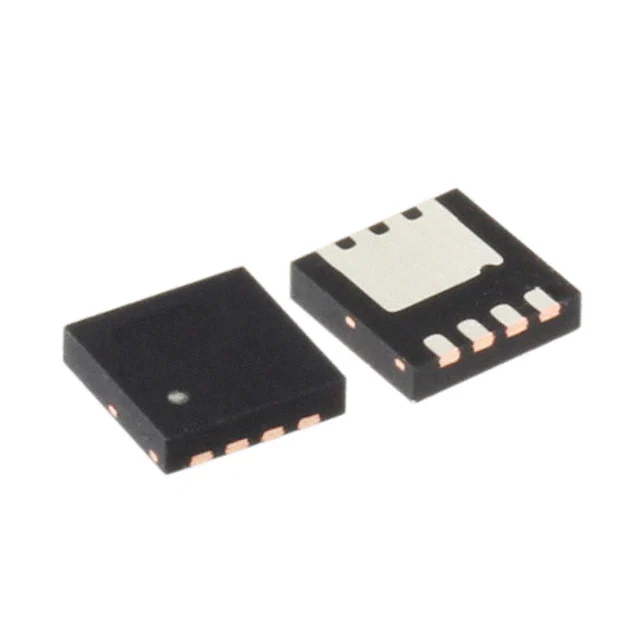

FDMC8884-F126MOSFET N-CH 30V 9A/15A 8MLP onsemi |
0 | - |
|
规格书 |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta), 15A (Tc) | 4.5V, 10V | 19mOhm @ 9A, 10V | 2.5V @ 250µA | 14 nC @ 10 V | ±20V | 685 pF @ 15 V | - | 2.3W (Ta), 18W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
