场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCPF380N60E-F152MOSFET N-CH 600V 10.2A TO220F-3 onsemi |
0 | - |
|
规格书 |
SuperFET® II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.2A (Tc) | - | 380mOhm @ 5A, 10V | 3.5V @ 250µA | 45 nC @ 10 V | - | 1770 pF @ 25 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
FDPF4N60NZMOSFET N-CH 600V 3.8A TO220F onsemi |
0 | - |
|
规格书 |
UniFET-II™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.8A (Tc) | 10V | 2.5Ohm @ 1.9A, 10V | 5V @ 250µA | 10.8 nC @ 10 V | ±25V | 510 pF @ 25 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
FDB42AN15A0-F085MOSFET N-CH 150V 35A D2PAK onsemi |
0 | - |
|
- |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 35A (Tc) | 10V | 42mOhm @ 12A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±20V | 2040 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FDD120AN15A0-F085MOSFET N-CH 150V 14A DPAK onsemi |
0 | - |
|
规格书 |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 14A (Tc) | 10V | 120mOhm @ 4A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 743 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|

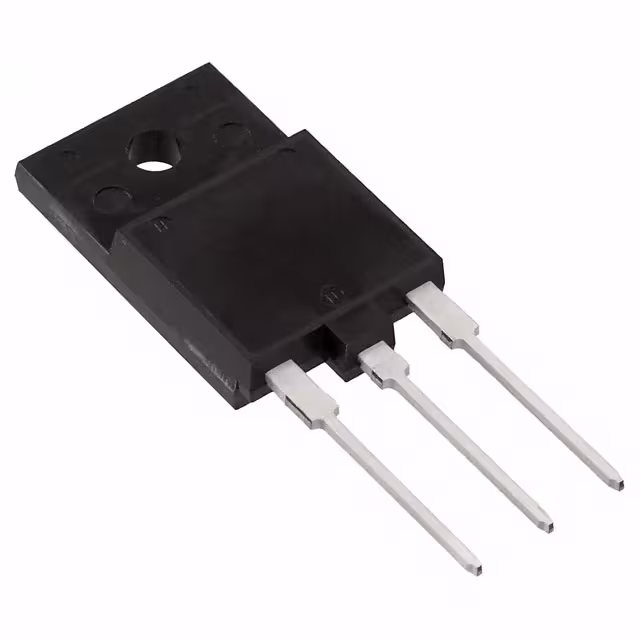

WPH4003-1EMOSFET N-CH 1700V 2.5A TO3PF onsemi |
0 | - |
|
规格书 |
- | TO-3P-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1700 V | 2.5A (Tc) | 10V | 10.5Ohm @ 1.5A, 10V | - | 48 nC @ 10 V | ±30V | 850 pF @ 30 V | - | 3W (Ta), 55W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|

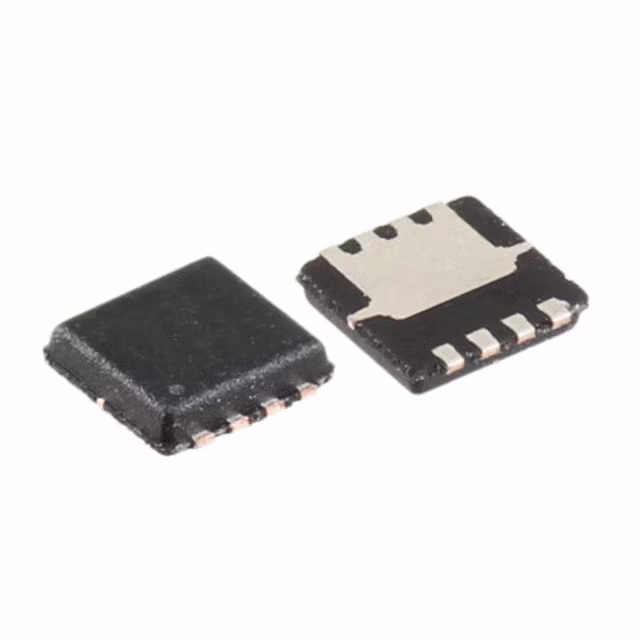

FDMC612PZMOSFET P-CH 20V 14A 8MLP onsemi |
0 | - |
|
规格书 |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 14A (Ta) | 2.5V, 4.5V | 8.4mOhm @ 14A, 4.5V | 1.5V @ 250µA | 74 nC @ 4.5 V | ±12V | 7995 pF @ 10 V | - | 2.3W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
FDB035AN06A0-F085MOSFET N-CH 60V 22A D2PAK onsemi |
0 | - |
|
规格书 |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Ta) | 10V | 3.5mOhm @ 80A, 10V | 4V @ 250µA | 124 nC @ 10 V | ±20V | 6400 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
|
FDB3632-F085MOSFET N-CH 100V 12A TO263AB onsemi |
0 | - |
|
规格书 |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Ta) | 10V | 9mOhm @ 80A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FDD10AN06A0-F085MOSFET N-CH 60V 11A TO252AA onsemi |
0 | - |
|
规格书 |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Ta) | 10V | 10.5mOhm @ 50A, 10V | 4V @ 250µA | 37 nC @ 10 V | ±20V | 1840 pF @ 25 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
|
FDD8870-F085MOSFET N-CH 30V 21A TO252AA onsemi |
0 | - |
|
规格书 |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta) | 4.5V, 10V | 3.9mOhm @ 35A, 10V | 2.5V @ 250µA | 118 nC @ 10 V | ±20V | 5160 pF @ 15 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
