场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTLJS4149PTBGMOSFET P-CH 30V 2.7A 6WDFN onsemi |
0 | - |
|
规格书 |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Ta) | 2.5V, 4.5V | 62mOhm @ 4.5A, 4.5V | 1V @ 250µA | 15 nC @ 4.5 V | ±12V | 960 pF @ 15 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
NDF05N50ZHMOSFET N-CH 500V 5.5A TO220FP onsemi |
0 | - |
|
规格书 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5.5A (Tc) | 10V | 1.5Ohm @ 2.2A, 10V | 4.5V @ 50µA | 28 nC @ 10 V | ±30V | 632 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-2 Full Pack |
|
NDF04N60ZHMOSFET N-CH 600V 4.8A TO220FP onsemi |
0 | - |
|
规格书 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.8A (Tc) | 10V | 2Ohm @ 2A, 10V | 4.5V @ 50µA | 29 nC @ 10 V | ±30V | 640 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-2 Full Pack |
|
FQD4N25TM-WSMOSFET N-CH 250V 3A DPAK onsemi |
0 | - |
|
规格书 |
QFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 3A (Tc) | 10V | 1.75Ohm @ 1.5A, 10V | 5V @ 250µA | 5.6 nC @ 10 V | ±30V | 200 pF @ 25 V | - | 2.5W (Ta), 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
NTD30N02T4GN-CHANNEL POWER MOSFET onsemi |
22,500 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 24 V | 30A (Ta) | 4.5V, 10V | 14.5mOhm @ 30A, 10V | 3V @ 250µA | 20 nC @ 4.5 V | ±20V | 1000 pF @ 20 V | - | 75W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|

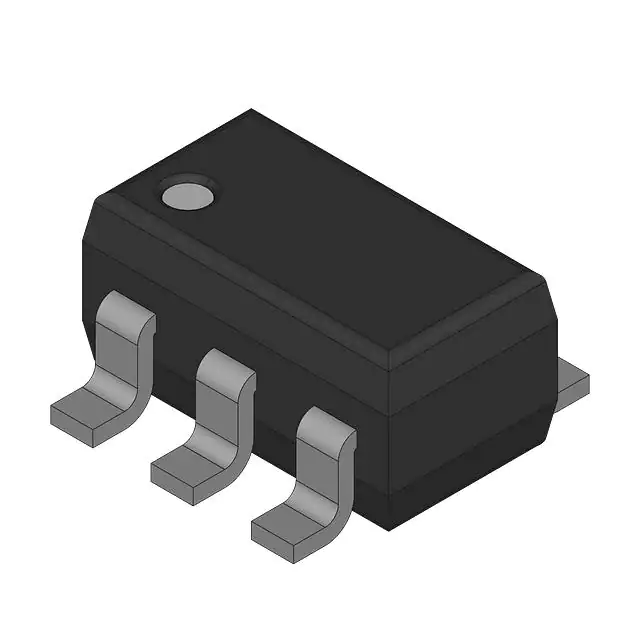

NTGD3133PT1HPFET TSOP6 20V 2.3A 145MO onsemi |
15,000 | - |
|
规格书 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NTD4855N-1GMOSFET N-CH 25V 14A/98A IPAK onsemi |
10,425 | - |
|
规格书 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 14A (Ta), 98A (Tc) | 4.5V, 10V | 4.3mOhm @ 30A, 10V | 2.5V @ 250µA | 32.7 nC @ 4.5 V | ±20V | 2950 pF @ 12 V | - | 1.35W (Ta), 66.7W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
NDF04N62ZGMOSFET N-CH 620V 4.4A TO220FP onsemi |
0 | - |
|
规格书 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 4.4A (Tc) | 10V | 2Ohm @ 2A, 10V | 4.5V @ 50µA | 19 nC @ 10 V | ±30V | 535 pF @ 25 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
NTD65N03RMOSFET N-CH 25V 9.5A/32A DPAK onsemi |
2,250 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 9.5A (Ta), 32A (Tc) | 4.5V, 10V | 8.4mOhm @ 30A, 10V | 2V @ 250µA | 16 nC @ 5 V | ±20V | 1400 pF @ 20 V | - | 1.3W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
NTMFS4C10NAT1GMOSFET N-CH 30V 8.2A SO8FL onsemi |
0 | - |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
