场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;3.jpg)
|
IRFU13N20DPBFMOSFET N-CH 200V 13A IPAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 13A (Tc) | 10V | 235mOhm @ 8A, 10V | 5.5V @ 250µA | 38 nC @ 10 V | ±30V | 830 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
|
IRFU6215PBFMOSFET P-CH 150V 13A IPAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 150 V | 13A (Tc) | 10V | 295mOhm @ 6.6A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|
IRF2807ZLPBFMOSFET N-CH 75V 75A TO262 Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 9.4mOhm @ 53A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3270 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
IRL3402PBFMOSFET N-CH 20V 85A TO220AB Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 85A (Tc) | 4.5V, 7V | 8mOhm @ 51A, 7V | 700mV @ 250µA (Min) | 78 nC @ 4.5 V | ±10V | 3300 pF @ 15 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|

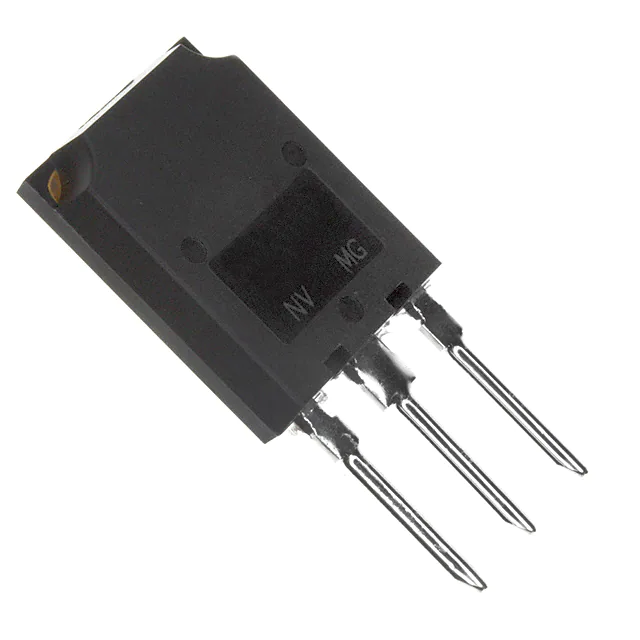

IRFPS37N50APBFMOSFET N-CH 500V 36A SUPER247 Infineon Technologies |
0 | - |
|
- |
HEXFET® | TO-274AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 130mOhm @ 22A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±30V | 5579 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
|
IRL3713PBFMOSFET N-CH 30V 260A TO220AB Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 260A (Tc) | 4.5V, 10V | 3mOhm @ 38A, 10V | 2.5V @ 250µA | 110 nC @ 4.5 V | ±20V | 5890 pF @ 15 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRL3714ZSPBFMOSFET N-CH 20V 36A D2PAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 36A (Tc) | 4.5V, 10V | 16mOhm @ 15A, 10V | 2.55V @ 250µA | 7.2 nC @ 4.5 V | ±20V | 550 pF @ 10 V | - | 35W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRL3715ZSPBFMOSFET N-CH 20V 50A D2PAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 50A (Tc) | 4.5V, 10V | 11mOhm @ 15A, 10V | 2.55V @ 250µA | 11 nC @ 4.5 V | ±20V | 870 pF @ 10 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRF1405SPBFMOSFET N-CH 55V 131A D2PAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 55 V | 131A (Tc) | 10V | 5.3mOhm @ 101A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 5480 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFBA90N20DPBFMOSFET N-CH 200V 98A SUPER-220 Infineon Technologies |
0 | - |
|
规格书 |
HEXFET® | TO-273AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 98A (Tc) | 10V | 23mOhm @ 59A, 10V | 5V @ 250µA | 240 nC @ 10 V | ±30V | 6080 pF @ 25 V | - | 650W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | SUPER-220™ (TO-273AA) |
