穿心电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3F15C1028AT1ACAP FEEDTHRU 1000PF 50V 1206 KYOCERA AVX |
6,127 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 1000 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
|
W3F15C2238AT1ACAP FEEDTHRU 0.022UF 50V 1206 KYOCERA AVX |
4,489 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.022 µF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
|
W3F15C2228AT1ACAP FEEDTHRU 2200PF 50V 1206 KYOCERA AVX |
1,515 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2200 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|

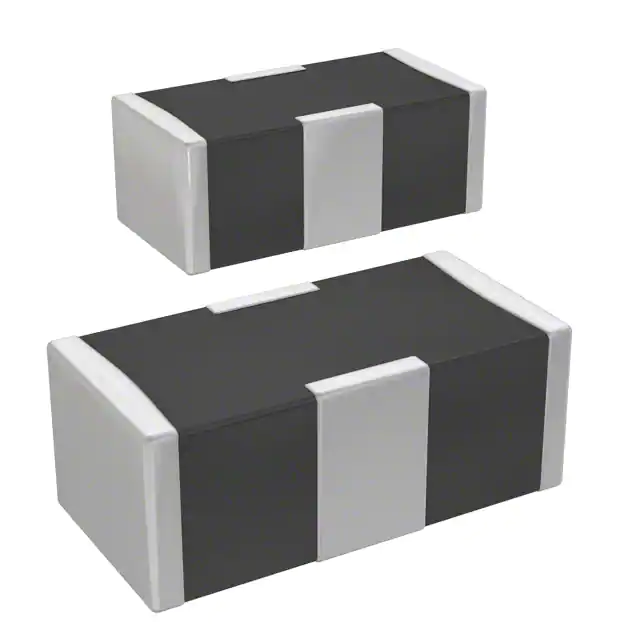

W2H15C1028AT1FCAP FEEDTHRU 1000PF 50V 0805 KYOCERA AVX |
4,356 |
|
规格书 |
W2H | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 1000 pF | -20%, +50% | 50V | 1 A | 150mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
W3F11A4708AT1ACAP FEEDTHRU 47PF 100V 1206 KYOCERA AVX |
5,659 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 47 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
W2F15C1038AT1FCAP FEEDTHRU 0.01UF 50V 0805 KYOCERA AVX |
3,000 |
|
规格书 |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 10000 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
|
W3F15C1038AT1FCAP FEEDTHRU 0.01UF 50V 1206 KYOCERA AVX |
6,000 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 10000 pF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
|
W3F11A2218AT1FCAP FEEDTHRU 220PF 100V 1206 KYOCERA AVX |
5,180 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 220 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
KGN05ZR50G435MH3-TERMINAL, 0402 X5R 4.3UF20% 4V KYOCERA AVX |
30,000 |
|
规格书 |
KGN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 4.3 µF | ±20% | 4V | 2 A | 30mOhm | -55°C ~ 85°C | - | X5R | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | - |
|
|
KGN05ZS60E435MH3-TERMINAL, 0402 X6S 4.3UF20% 2. KYOCERA AVX |
30,000 |
|
规格书 |
KGN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 4.3 µF | ±20% | 2.5V | 2 A | 30mOhm | -55°C ~ 105°C | - | X6S | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | - |
