穿心电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

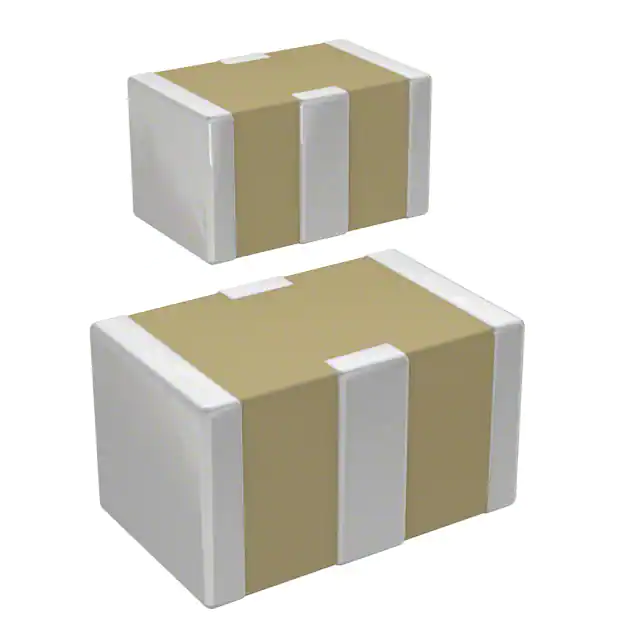

W2H11A4718AT1FCAP FEEDTHRU 470PF 100V 0805 KYOCERA AVX |
5,393 |
|
规格书 |
W2H | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 470 pF | -20%, +50% | 100V | 500 mA | 150mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
|
W2H15C4738AT1ACAP FEEDTHRU 0.047UF 50V 0805 KYOCERA AVX |
25,771 |
|
规格书 |
W2H | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.047 µF | -20%, +50% | 50V | 2 A | 150mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|

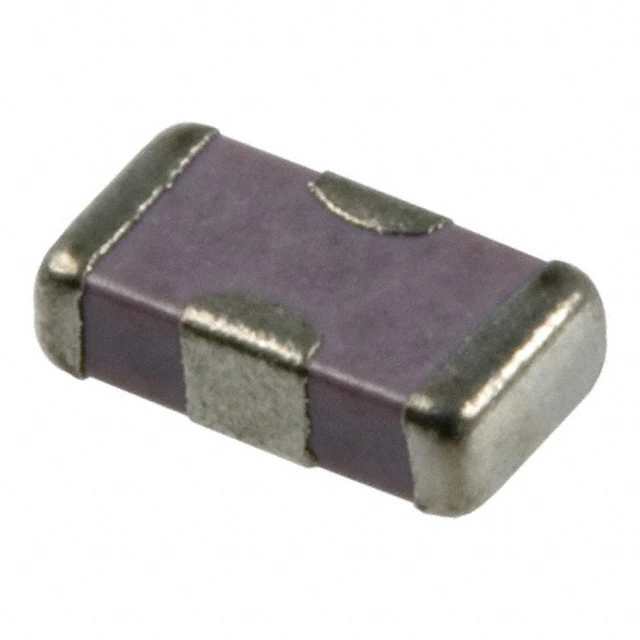

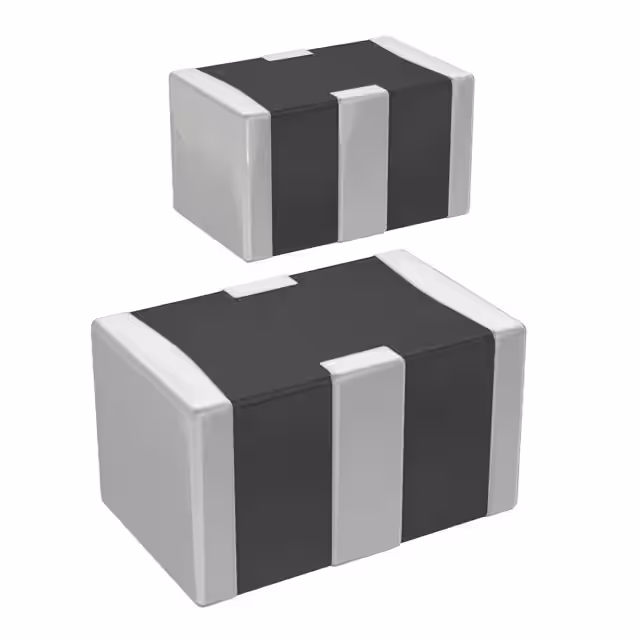

W2F11A4718AT1ACAP FEEDTHRU 470PF 100V 0805 KYOCERA AVX |
6,274 |
|
规格书 |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 470 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
|
W2F11A2208AT1ACAP FEEDTHRU 22PF 100V 0805 KYOCERA AVX |
14,255 |
|
规格书 |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 22 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
|
W2F11A1018AT1FCAP FEEDTHRU 100PF 100V 0805 KYOCERA AVX |
9,987 |
|
规格书 |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 100 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
W3F11A4718AT1ACAP FEEDTHRU 470PF 100V 1206 KYOCERA AVX |
9,856 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 470 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
|
W3F11A1018AT1ACAP FEEDTHRU 100PF 100V 1206 KYOCERA AVX |
22,291 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 100 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
|
W2F15C4738AT1ACAP FEEDTHRU 0.047UF 50V 0805 KYOCERA AVX |
14,283 |
|
规格书 |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.047 µF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
|
W2F15C2238AT1ACAP FEEDTHRU 0.022UF 50V 0805 KYOCERA AVX |
12,000 |
|
规格书 |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.022 µF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
W2F15C2238AT1FCAP FEEDTHRU 0.022UF 50V 0805 KYOCERA AVX |
10,730 |
|
规格书 |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.022 µF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
