DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219G-2LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
219G-2ESRSWITCH SLIDE DIP SPST 0.1A 20V |
1,880 |
|
规格书 |
219G | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
ADEN03TTU04SWITCH SLIDE DIP SPST 0.025A 24V |
3,362 |
|
规格书 |
ADE | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
219G-2MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
KAE01LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,090 |
|
规格书 |
KAE | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.176" (4.47mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAG04TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
308 |
|
规格书 |
KAG | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
|
ADEN06TTU04SWITCH SLIDE DIP SPST 0.025A 24V |
1,925 |
|
规格书 |
ADE | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
219G-4ESSWITCH SLIDE DIP SPST 0.1A 20V |
1,920 |
|
规格书 |
219G | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-4ESRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-4ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,980 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-4LPSRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-4LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
219G-4MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
219G-4LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
1,997 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
5161390-2SWITCH SLIDE DIP SPST 0.025A 50V |
1,996 |
|
规格书 |
DIP | Box | Active | SPST | 2 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
ADEN02STR04SWITCH SLIDE DIP SPST 0.025A 24V |
3,906 |
|
规格书 |
ADE | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.179" (4.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

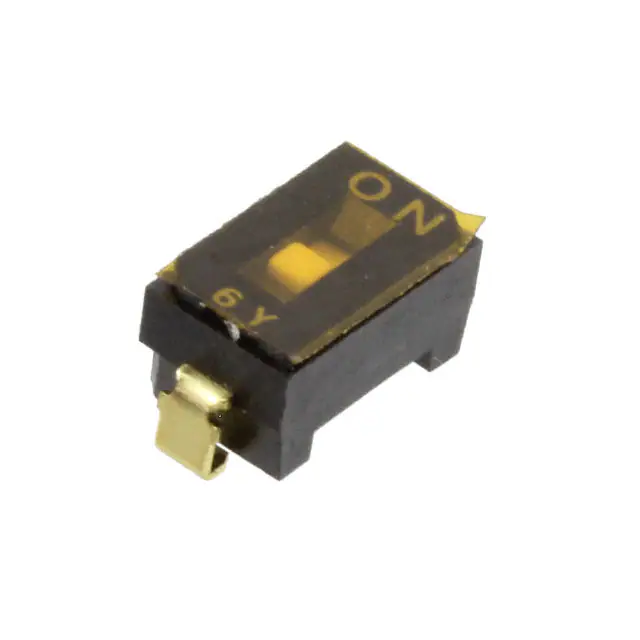

CFS-0100MASWITCH SLIDE DIP SPST 0.1A 6V |
254 |
|
规格书 |
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
DBP 2102 NDUAL-IN-LINE-SWITCH, PIANO-TYPE, |
700 |
|
规格书 |
DBP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
219G-6ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,965 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
DBS 1002DIP SWITCH 6.02 MM |
152 |
|
规格书 |
DBS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
