DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRSSH4DR10THTSWITCH ROTARY DIP BCD 0.4VA 20V |
3,497 |
|
规格书 |
MRSS | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
A6HR-8104SWITCH PIANO DIP SPST 0.025A 24V |
514 |
|
规格书 |
A6HR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
|
MRSSH4DR16SMGWTRSWITCH ROTARY DIP HEX 0.4VA 20V |
1,000 |
|
规格书 |
MRSS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
MRSSH4DG16SMGWTRSW ROTARY DIP GRY CODE 0.4VA 20V |
1,000 |
|
规格书 |
MRSS | Tape & Reel (TR) | Active | Gray Code | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
MRSSH4DG10SMGWTRSW ROTARY DIP GRY CODE 0.4VA 20V |
1,000 |
|
规格书 |
MRSS | Tape & Reel (TR) | Active | Gray Code | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
MRSSH4DC10SMGWTRSW ROTARY DIP BCD COMP 0.4VA 20V |
997 |
|
规格书 |
MRSS | Tape & Reel (TR) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
MRSSH4DR10SMGWTRSWITCH ROTARY DIP BCD 0.4VA 20V |
426 |
|
规格书 |
MRSS | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CRD10RM0SBSWITCH ROTARY DIP BCD 0.4VA 20V |
5,644 |
|
规格书 |
CRD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
A6KV-102RFSWITCH ROTARY DIP BCD 0.025A 24V |
273 |
|
规格书 |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
A6A-16CWSW ROTARY DIP HEX COMP 0.1A 28V |
378 |
|
规格书 |
A6A | Tube | Active | Hexadecimal Complement | 16 | 100mA | 28VDC | Rotary with Knob | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
A6KS-104RFSWITCH ROTARY DIP BCD 0.025A 24V |
298 |
|
规格书 |
A6KS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

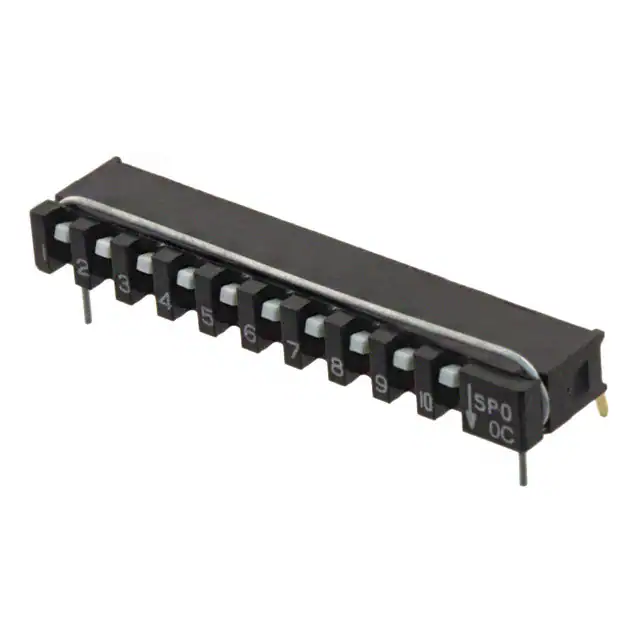

SPA10ABSWITCH SLIDE DIP SPST 0.01A 20V |
104 |
|
规格书 |
SPA | Tube | Active | SPST | 10 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 60°C |
|
1825008-8SWITCH ROTARY DIP HEX 0.4VA 20V |
360 |
|
规格书 |
DR | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
ADEN02TTU04SWITCH SLIDE DIP SPST 0.025A 24V |
4,507 |
|
规格书 |
ADE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADEN04TTU04SWITCH SLIDE DIP SPST 0.025A 24V |
2,642 |
|
规格书 |
ADE | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADFN04TTU04SWITCH SLIDE DIP SPST 0.025A 24V |
2,727 |
|
规格书 |
ADF | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
1825002-1SWITCH SLIDE DIP SPST 0.025A 24V |
11,522 |
|
规格书 |
ADF | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
219G-2ESFSWITCH SLIDE DIP SPST 0.1A 20V |
1,980 |
|
规格书 |
219G | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
219G-2LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
规格书 |
219G | Cut Tape (CT) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
219G-2ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
规格书 |
219G | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
