上传BOM
DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

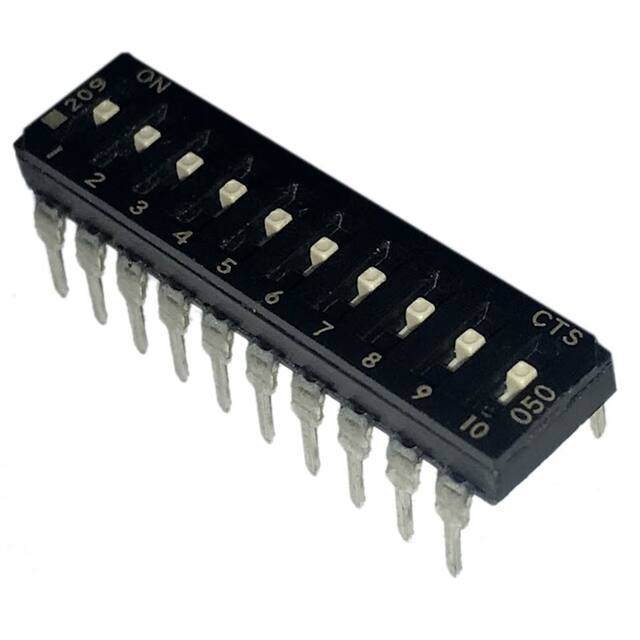

209-10LPSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

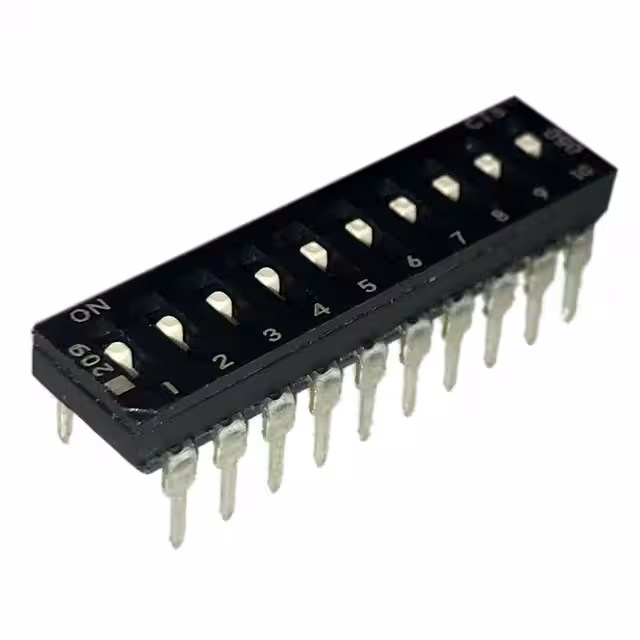

209-10LPSDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
209-10LPSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

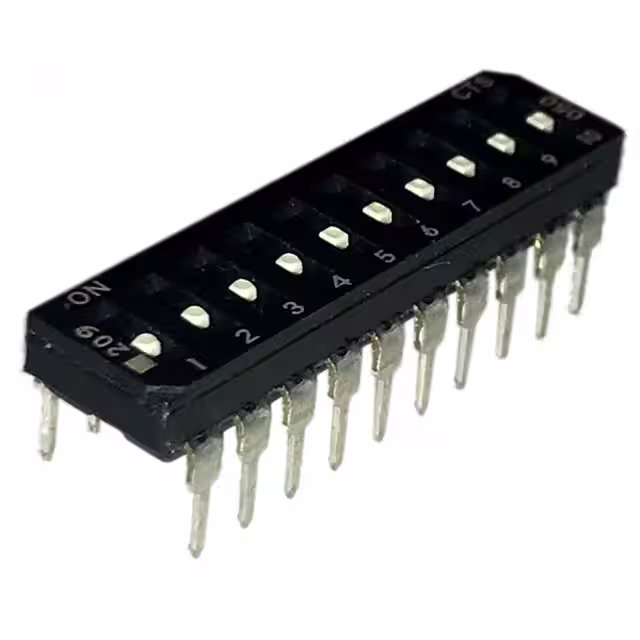

209-10LPSFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10MSDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10MSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10MSFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
193-4MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
0 |
|
规格书 |
193 | Tube | Active | SPST | 4 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
193-3MSRSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
0 |
|
规格书 |
193 | Tape & Reel (TR) | Active | SPST | 3 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
193-3MSRNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
0 |
|
规格书 |
193 | Tape & Reel (TR) | Active | SPST | 3 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
