DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-8MSTJFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-211RASWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
0 |
|
规格书 |
206RA | Tube | Active | DPST | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-5RASWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
0 |
|
规格书 |
206RA | Tube | Active | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

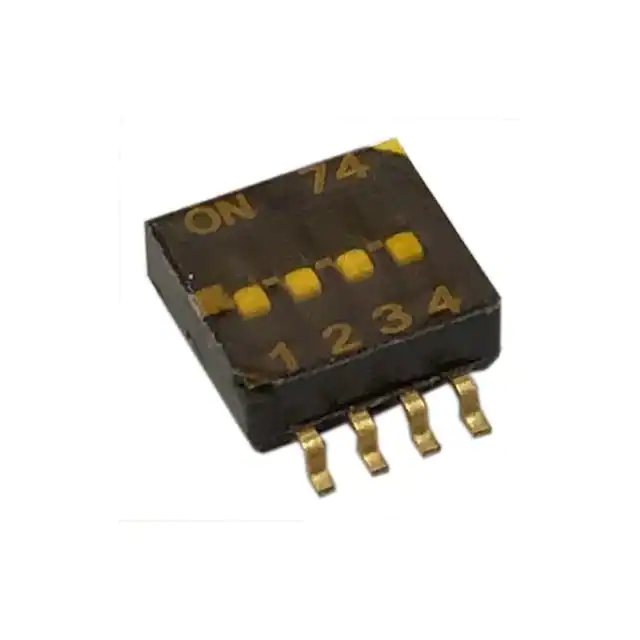

218-4LPSTFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
0 |
|
规格书 |
218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

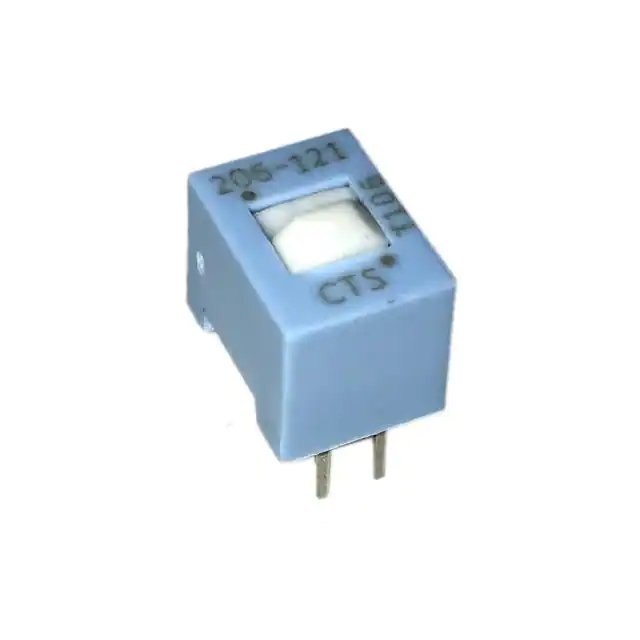

206-121STSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
0 |
|
规格书 |
206 | Tube | Active | SPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

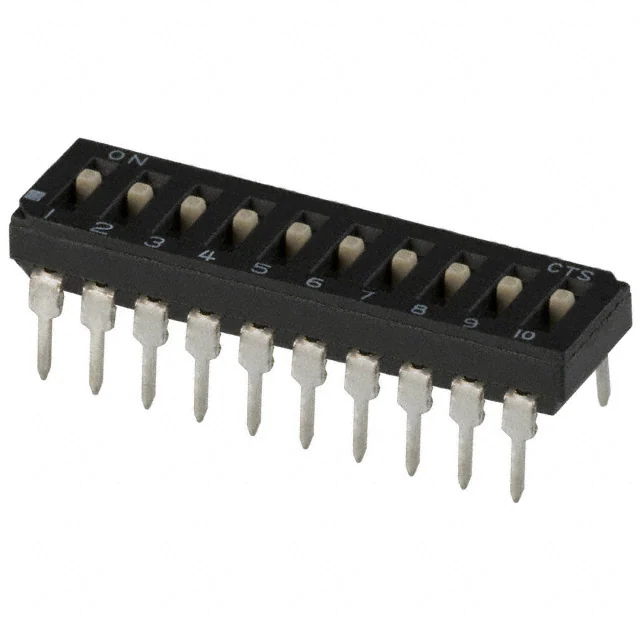

209-10MSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10ESSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10ESDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10ESFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10ESFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
规格书 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
