DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65 103SWITCH ROTARY DIP HEXADECIMAL 1 |
50 |
|
- |
PT65 | Tray | Active | Hexadecimal | 16 | 150mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
PT65 301SWITCH ROTARY DIP BCD 10POS SPI |
50 |
|
规格书 |
PT65 | Tray | Active | BCD | 10 | 150mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
SMS 510DIP SWITCH 26.65 MM |
94 |
|
规格书 |
SMS | Tube | Active | SPST | 10 | 100mA | 50VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.089" (2.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
FR01KR16HSWITCH ROTARY DIP HEX 0.1A 5V |
75 |
|
规格书 |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01FR10H-06XLSWITCH ROTARY DIP BCD 0.1A 5V |
14 |
|
规格书 |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
PT65 303SWITCH ROTARY DIP HEXADECIMAL 1 |
50 |
|
规格书 |
PT65 | Tray | Active | Hexadecimal | 16 | 150mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
PT65 503SWITCH ROTARY DIP HEXADECIMAL 1 |
45 |
|
- |
PT65 | Tray | Active | Hexadecimal | 16 | 150mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
SMS 508DIP SWITCH 21.55 MM |
44 |
|
规格书 |
SMS | Tube | Active | SPST | 8 | 100mA | 50VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.089" (2.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
PT65701L508SWITCH ROTARY DIP BCD 0.15A 24V |
50 |
|
规格书 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

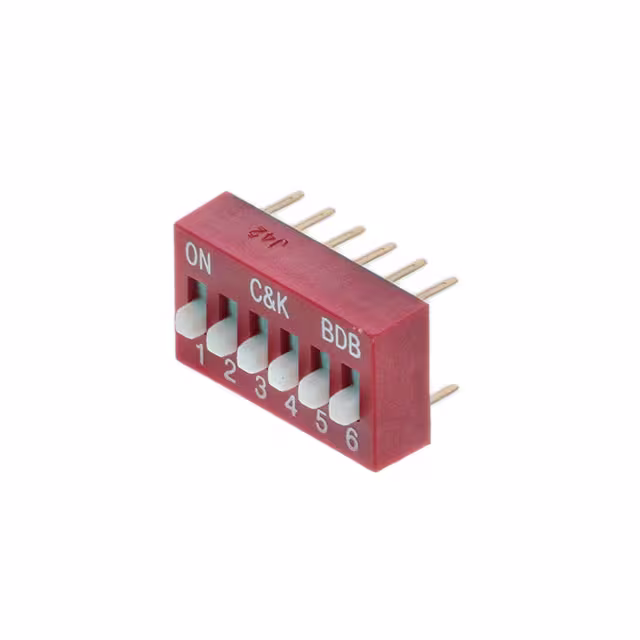

BDB06SWITCH SLIDE DIP SPST 0.025A 25V |
864 |
|
- |
BDB | Tube | Obsolete | SPST | 6 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DS02C-254-2L-04BESWITCH PIANO DIP SPST 0.025A 24V |
471 |
|
规格书 |
DS02-254 | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG03ETSWITCH SLIDE DIP SPST 0.025A 24V |
815 |
|
规格书 |
KG | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

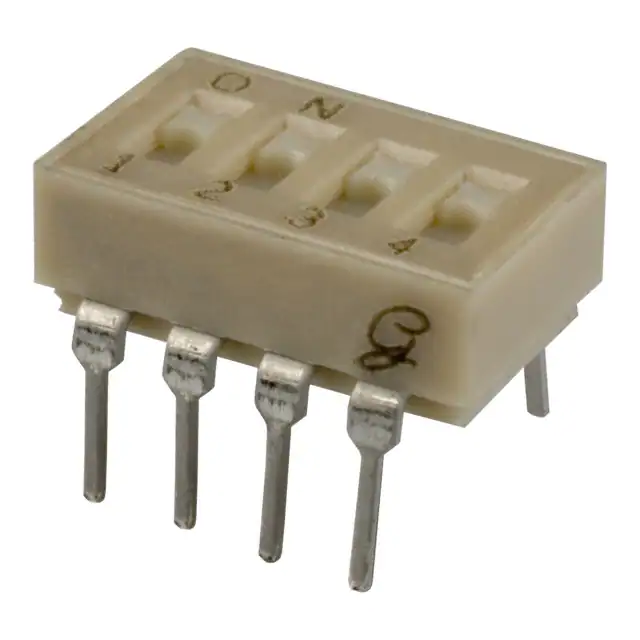

90B04SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
90B | Bulk | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
1825190-5SWITCH SHUNT DIP PROGRAMMABLE |
69 |
|
规格书 |
7600 | Tube | Obsolete | Programmable | 6 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
1825190-6SWITCH SHUNT DIP PROGRAMMABLE |
709 |
|
规格书 |
7600 | Tube | Obsolete | Programmable | 7 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
76PSB09TSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
规格书 |
76 | Bulk | Obsolete | SPST | 9 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG05ETSWITCH SLIDE DIP SPST 0.025A 24V |
726 |
|
规格书 |
KG | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DS02C-254-2L-10BESWITCH PIANO DIP SPST 0.025A 24V |
51 |
|
规格书 |
DS02-254 | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG10ETSWITCH SLIDE DIP SPST 0.025A 24V |
27 |
|
规格书 |
KG | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

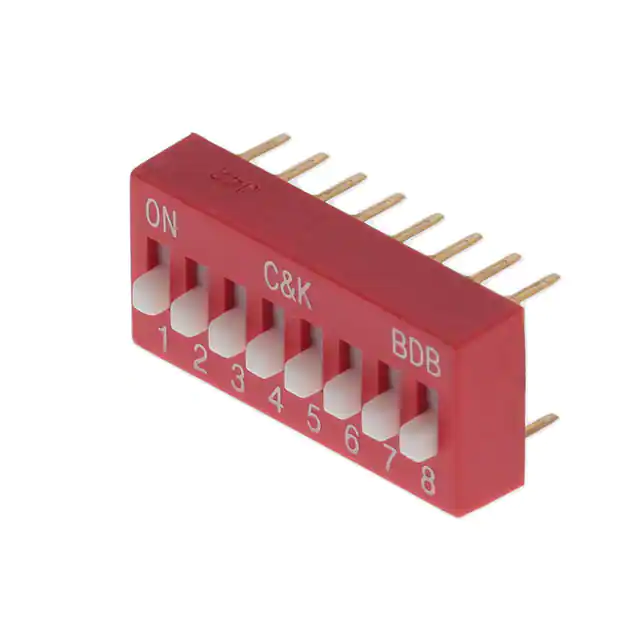

BDB08SWITCH SLIDE DIP SPST 0.025A 25V |
36 |
|
- |
BDB | Tube | Obsolete | SPST | 8 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
