DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR02FR10P-SSWITCH ROTARY DIP BCD 0.1A 5V |
50 |
|
规格书 |
FR02 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01FC10P-W-SSW ROTARY DIP BCD COMP 0.1A 5V |
35 |
|
规格书 |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

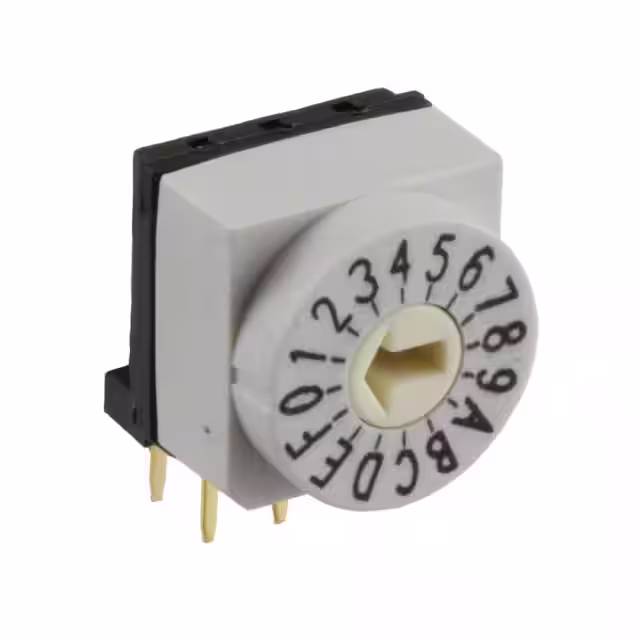

428427320917SW ROTARY DIP HEX COMP 0.15A 24V |
50 |
|
规格书 |
WS-ROTU | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
EDS12SGNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
100 |
|
规格书 |
EDS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS12SNRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
100 |
|
规格书 |
EDS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS12SGRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
95 |
|
规格书 |
EDS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS12SNNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
90 |
|
规格书 |
EDS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
1825286-5SW ROCKER DIP SPST 0.025A 24V |
60 |
|
规格书 |
GDR | Tube | Active | SPST | 6 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
FR01KC10H-SSW ROTARY DIP BCD COMP 0.1A 5V |
53 |
|
规格书 |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
EDSP02SGRNNTR04SWITCH PIANO DIP SPST 0.025A 24V |
70 |
|
规格书 |
EDSP | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDSP02SGRFNTR04SWITCH PIANO DIP SPST 0.025A 24V |
60 |
|
规格书 |
EDSP | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
EDS12SNRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
90 |
|
规格书 |
EDS | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
1825286-3SW ROCKER DIP SPST 0.025A 24V |
33 |
|
规格书 |
GDR | Tube | Active | SPST | 4 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
EDS12SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
42 |
|
规格书 |
EDS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
76RSB05TSWITCH ROCKER DIP SPST 0.15A 30V |
54 |
|
规格书 |
76 | Tube | Active | SPST | 5 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6E-0101-NSWITCH SLIDE DIP SPST 0.025A 24V |
31 |
|
规格书 |
A6E-N | Tray | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
FR01SC16P-SSW ROTARY DIP HEX COMP 0.1A 5V |
49 |
|
规格书 |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
428547320911SW ROTARY DIP BCD COMP 0.1A 42V |
69 |
|
规格书 |
WS-ROTV | Tube | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
429427320917SW ROTARY DIP HEX COMP 0.15A 24V |
42 |
|
规格书 |
WS-ROTU | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
429427520911SW ROTARY DIP BCD COMP 0.15A 24V |
40 |
|
规格书 |
WS-ROTU | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
