箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB55P14B10BBOX PLASTIC BLACK |
0 |
|
规格书 |
RB | Bulk | Active | Box | - | 2.380" (60.45mm) | 22.3in² (144cm²) | Cover Included | Plastic, Polycarbonate | Black | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
|
1734AA,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.500" (63.50mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|
|
173RI9V,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.500" (63.50mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|
EXN-23354-BLPBOX ALUM BLU/TRN BLU 4.7"LX4.5"W |
0 |
|
规格书 |
EXN | Bulk | Active | Box | 4.685" L x 4.476" W (119.00mm x 113.70mm) | 1.386" (35.20mm) | 21.0in² (135cm²) | End Panel(s) | Metal, Aluminum with Plastic, Polycarbonate Panels | Blue, Translucent Blue | 0.091" (2.30mm) | Card Guides, Sealing Gaskets | IP66 | UL94 V-0 |
|

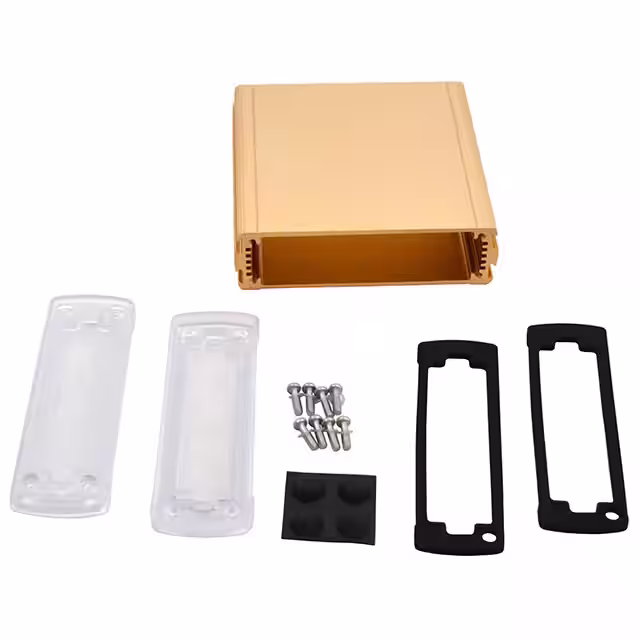

EXN-23354-GDPBOX ALUM CLR/GLD 4.69"L X 4.48"W |
0 |
|
规格书 |
EXN | Bulk | Active | Box | 4.685" L x 4.476" W (119.00mm x 113.70mm) | 1.386" (35.20mm) | 21.0in² (135cm²) | End Panel(s) | Metal, Aluminum with Plastic, Polycarbonate Panels | Clear, Gold | 0.091" (2.30mm) | Card Guides, Sealing Gaskets | IP66 | UL94 V-0 |
|

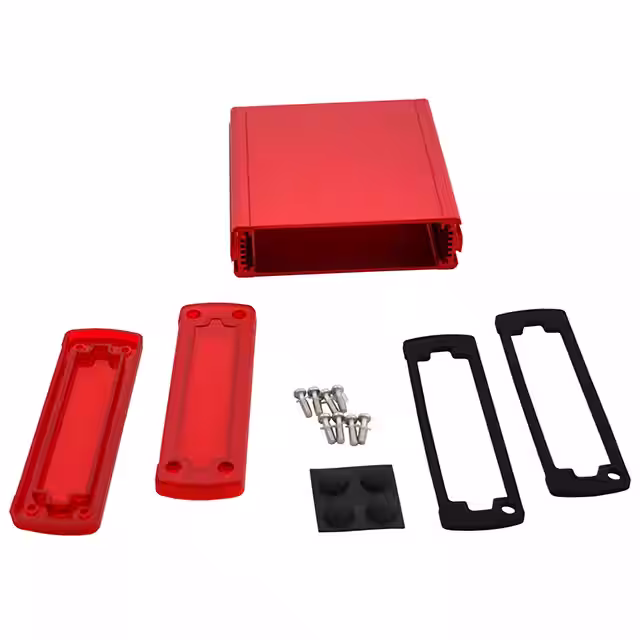

EXN-23354-RDPBOX ALUM IR RED/RED 4.7"LX4.48"W |
0 |
|
规格书 |
EXN | Bulk | Active | Box | 4.685" L x 4.476" W (119.00mm x 113.70mm) | 1.386" (35.20mm) | 21.0in² (135cm²) | End Panel(s) | Metal, Aluminum with Plastic, Polycarbonate Panels | Infra-Red, Red | 0.091" (2.30mm) | Card Guides, Sealing Gaskets | IP66 | UL94 V-0 |
|
|
6775WF10.5" TRADESMAN CASE - BLACK W/D |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|

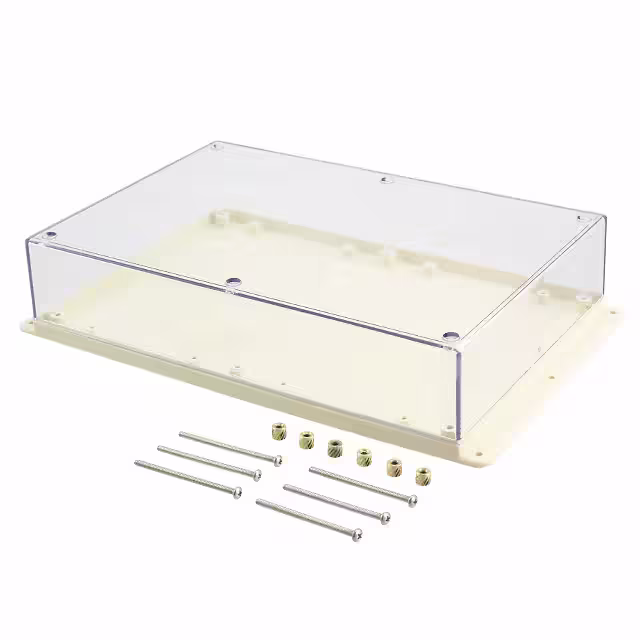

WM093RC,ALBOX PLSTC AMD/CL 9.5"L X 6.34"W |
0 |
|
规格书 |
WM | Bulk | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 2.100" (53.34mm) | 60.2in² (388cm²) | Cover Included | Plastic, Polycarbonate | Almond, Clear Cover/Door | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | - |
|
WM093RC,GYBOX PLASTIC 9.5"L X 6.34"W |
0 |
|
规格书 |
WM | Bulk | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 2.100" (53.34mm) | 60.2in² (388cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | - |
|
BEA02SBT0BOX ABS BLK/CL 4.17"L X 3.16"W |
0 |
|
规格书 |
BE | Bulk | Active | Box | 4.173" L x 3.157" W (106.00mm x 80.20mm) | 2.087" (53.00mm) | 13.1in² (85cm²) | Cover Included | Plastic, ABS | Black, Transparent Cover/Door | - | Knockouts, PCB Supports | IP67 | UL94 HB |
|
|
1342907HOUSING SET |
0 |
|
- |
ME | Bulk | Active | Housing | 4.474" L x 1.780" W (113.65mm x 45.20mm) | 3.898" (99.00mm) | 7.96in² (51.4cm²) | Cover Included | Plastic, Polyamide | Light Gray | - | - | IP20 | UL94 V-0 |
|
|
AU-1083-MGCABINET ALUM GRAY 4"L X 2"W |
0 |
|
规格书 |
AU | Bulk | Active | Cabinet | 4.000" L x 2.000" W (101.60mm x 50.80mm) | 4.000" (101.60mm) | 8.00in² (51.6cm²) | End Panel(s) | Metal, Aluminum | Gray | 0.040" (1.02mm) | - | - | - |
|
|
CU-474-GBOX ALUM GRAY 4.75"L X 4.75"W |
0 |
|
规格书 |
Econobox | Bulk | Active | Box | 4.750" L x 4.750" W (120.65mm x 120.65mm) | 2.330" (59.18mm) | 22.6in² (146cm²) | Cover Included | Metal, Aluminum | Gray | 0.094" (2.39mm) | - | - | - |
|
BOS 805BOX ABS BLACK 7.72"L X 3.94"W |
0 |
|
规格书 |
Databoss | Bulk | Active | Box | 7.717" L x 3.937" W (196.00mm x 100.00mm) | 1.575" (40.00mm) | 30.4in² (196cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.098" (2.49mm) | PCB Supports | IP40 | UL94 HB |
|
BOS 808BOX ABS BLACK 7.72"L X 3.94"W |
0 |
|
规格书 |
Databoss | Bulk | Active | Box | 7.717" L x 3.937" W (196.00mm x 100.00mm) | 1.575" (40.00mm) | 30.4in² (196cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.098" (2.49mm) | Battery Door, PCB Supports | IP40 | UL94 HB |
|
|
101-004-01BOX ABS GRAY/CLR |
0 |
|
- |
TG | Bulk | Active | Box | - | 2.170" (55.12mm) | - | Cover Included, Hand Held | Plastic, ABS | Gray, Clear Cover/Door | - | - | IP67, NEMA 4X | UL94 HB |
|
WM072R,ALBOX ABS ALMOND 6.88"L X 4.88"W |
0 |
|
规格书 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.600" (40.64mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Almond | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
WM072R,GYBOX ABS GRAY 6.88"L X 4.88"W |
0 |
|
规格书 |
WM | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.600" (40.64mm) | 33.6in² (217cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
151I2AA,BKBOX ABS BLACK 5.62"L X 3.25"W |
0 |
|
规格书 |
- | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 1.500" (38.10mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP40, NEMA 1 | UL94 HB |
|
1512AA,BKBOX ABS BLACK 5.62"L X 3.25"W |
0 |
|
规格书 |
- | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 1.500" (38.10mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP40, NEMA 1 | UL94 HB |
