箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUR-3285-MBBOX ABS BLACK 8.25"L X 5.151"W |
0 |
|
规格书 |
Utilibox Style A | Bulk | Active | Box | 8.246" L x 5.151" W (209.45mm x 130.84mm) | 3.125" (79.38mm) | 42.4in² (274cm²) | Cover Included | Plastic, ABS | Black | 0.130" (3.30mm) | Mounting Flange, PCB Supports | - | UL94 5VA |
|
|
HH-3420-BCBOX ABS GRAY 9.33"L X 5.16"W |
0 |
|
规格书 |
Grabbers Style B | Bulk | Active | Box | 9.331" L x 5.157" W (237.01mm x 130.99mm) | 1.712" (43.48mm) | 48.0in² (310cm²) | Hand Held, Split Sides, T-Shaped | Plastic, ABS | Gray | - | Battery Compartment, 9V and AA | - | UL94 V-0 |
|
|
1455NF1201BOX ALUM CLEAR 4.72"L X 4.06"W |
0 |
|
规格书 |
1455 | Bulk | Active | Box | 4.724" L x 4.055" W (120.00mm x 103.00mm) | 2.090" (53.09mm) | 19.2in² (124cm²) | End Panel(s) | Aluminum | Clear | 0.059" (1.50mm) | - | - | - |
|
1418AW18CABINET STEEL 18X48X60 GRAY |
3 |
|
规格书 |
1418 | Case | Active | - | - | - | - | - | Metal, Steel | Gray | - | Dual Door, Single Access | - | - |
|
M6,TRGRBOX ABS TRN GREEN 4.15"L X 2.4"W |
0 |
|
规格书 |
M | Bulk | Active | Box | 4.150" L x 2.400" W (105.41mm x 60.96mm) | 0.850" (21.59mm) | 9.96in² (64.3cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Translucent - Green | 0.100" (2.54mm) | Battery Compartment, 9V and AA | IP40 | UL94 HB |
|

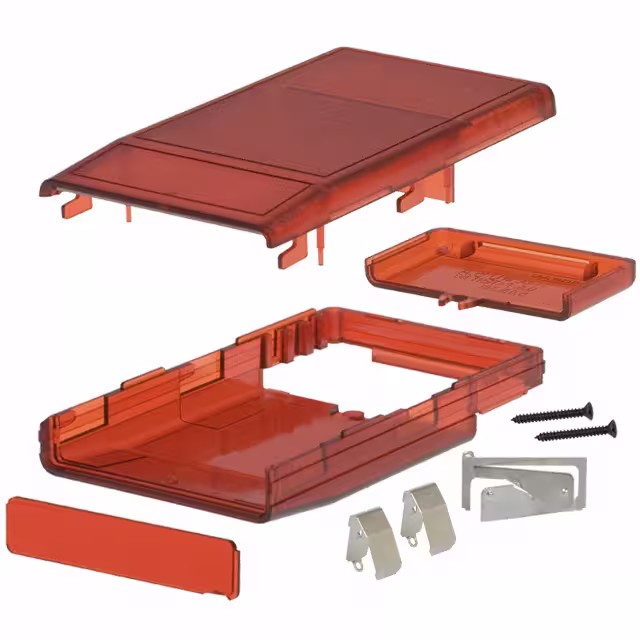

M6,TRRDBOX ABS TRN RED 4.15"L X 2.4"W |
0 |
|
规格书 |
M | Bulk | Active | Box | 4.150" L x 2.400" W (105.41mm x 60.96mm) | 0.850" (21.59mm) | 9.96in² (64.3cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Translucent - Red | 0.100" (2.54mm) | Battery Compartment, 9V and AA | IP40 | UL94 HB |
|
|
1590WBB2FLBKENCLOSURE ALUM 4.7"L X 3.7"W |
0 |
|
规格书 |
1590-RIBBED | Bulk | Active | Enclosure | 4.700" L x 3.700" W (119.38mm x 93.98mm) | 1.570" (39.88mm) | 17.3in² (112cm²) | Cover Included | Aluminum | Black | 0.079" (2.00mm) | - | IP65 | - |
|
|
1355985INTERCONNECT MISC |
0 |
|
- |
UCS | Bulk | Active | Housing | 3.425" L x 1.850" W (87.00mm x 47.00mm) | 3.425" (87.00mm) | 6.34in² (40.9cm²) | Cover Included | Plastic, Polycarbonate | Black | - | - | IP40 | UL94 V-0 |
|
|
1349259INTERCONNECT MISC |
0 |
|
- |
UCS | Bulk | Active | Housing | 3.425" L x 1.850" W (87.00mm x 47.00mm) | 3.425" (87.00mm) | 6.34in² (40.9cm²) | Cover Included | Plastic, Polycarbonate | Light Gray | - | - | IP40 | UL94 V-0 |
|
|
1349249INTERCONNECT MISC |
0 |
|
- |
UCS | Bulk | Active | Housing | 3.425" L x 1.850" W (87.00mm x 47.00mm) | 3.425" (87.00mm) | 6.34in² (40.9cm²) | Cover Included | Plastic, Polycarbonate | Black | - | - | IP40 | UL94 V-0 |
|

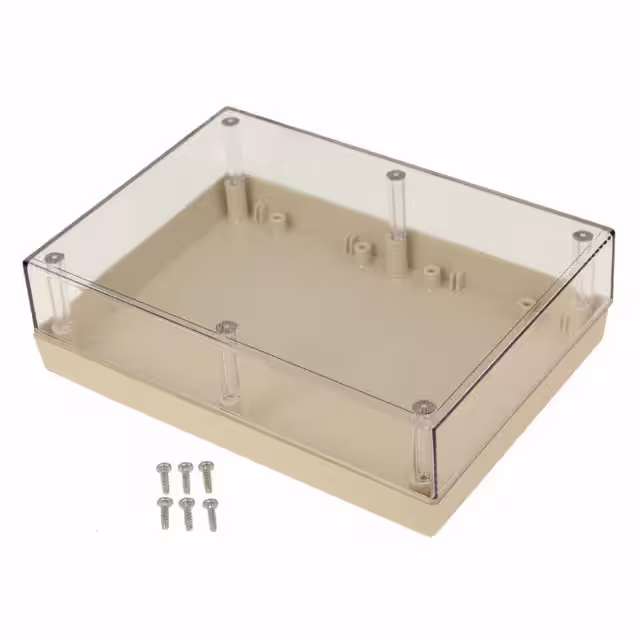

172C,ALBOX PLSTC AMD/CL 6.88"L X 4.88"W |
0 |
|
- |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, Polycarbonate | Almond, Clear Cover/Door | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | - |
|

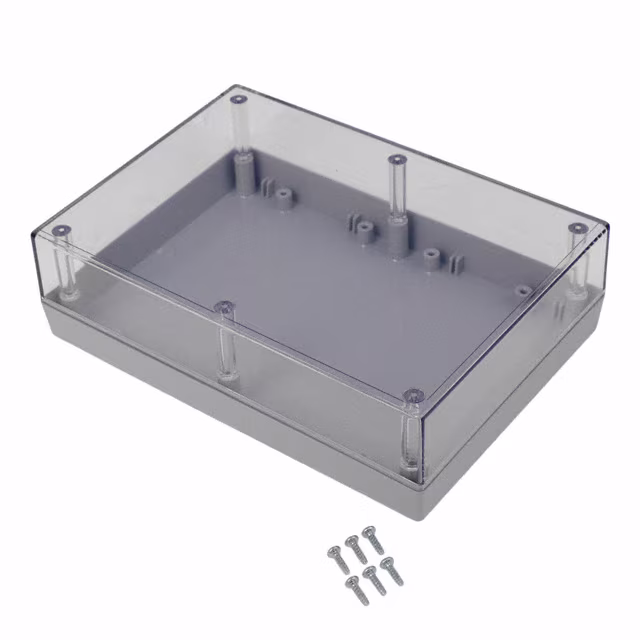

172C,GYBOX PLASTIC 6.88"L X 4.88"W |
0 |
|
- |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | - |
|

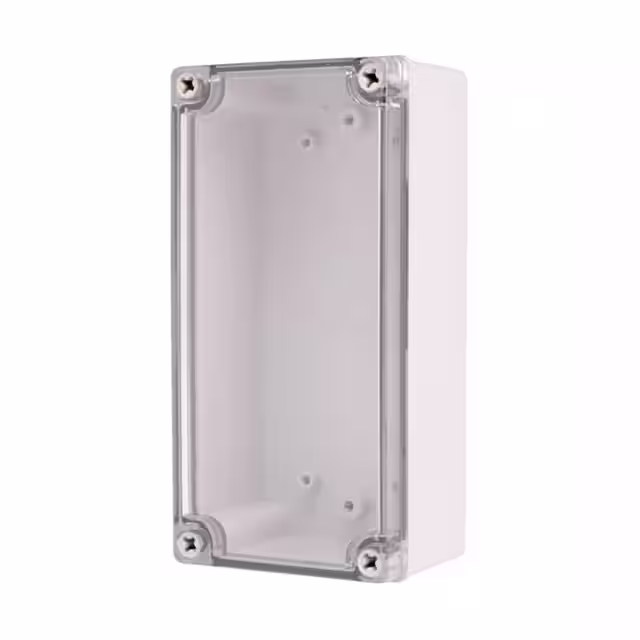

BC-CTS-102007BOX PLASTIC CLR 7.87"L X 3.94"W |
5 |
|
规格书 |
S | Bulk | Active | Box | 7.874" L x 3.937" W (200.00mm x 100.00mm) | 2.756" (70.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

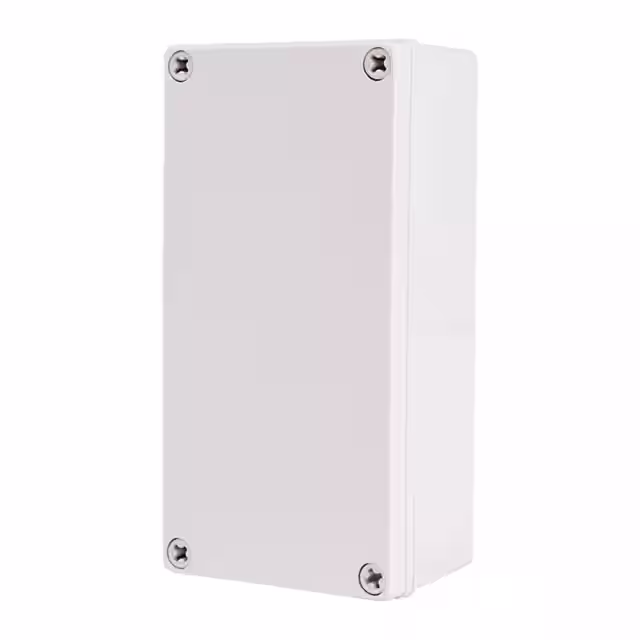

BC-CGS-102007BOX PLAS LGT GRY 7.87"L X 3.94"W |
2 |
|
规格书 |
S | Bulk | Active | Box | 7.874" L x 3.937" W (200.00mm x 100.00mm) | 2.756" (70.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

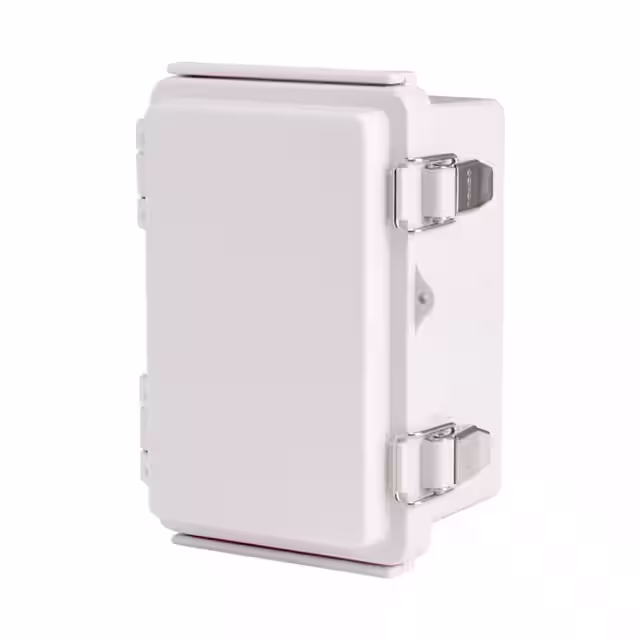

BC-CGP-101508BOX PLAS LGT GRY 5.91"L X 3.94"W |
2 |
|
规格书 |
P | Bulk | Active | Box | 5.906" L x 3.937" W (150.00mm x 100.00mm) | 3.346" (85.00mm) | 23.3in² (150cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
172IAC,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|
|
1342905HOUSING SET |
0 |
|
- |
ME | Bulk | Active | Housing | 2.738" L x 0.886" W (69.55mm x 22.50mm) | 3.346" (85.00mm) | 2.33in² (15.0cm²) | Cover Included | Plastic, Polyamide | Light Gray | - | - | IP20 | UL94 V-0 |
|
96021115BOX PLASTIC 3.50"L X 3.15"W |
0 |
|
规格书 |
Bocube | Bag | Active | Box | 3.504" L x 3.150" W (89.00mm x 80.00mm) | 1.850" (46.99mm) | 11.0in² (71cm²) | Hinged Door, Lid | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | Flame Retardant, PCB Supports | IP66, IP67 | UL94 V-0 |
|

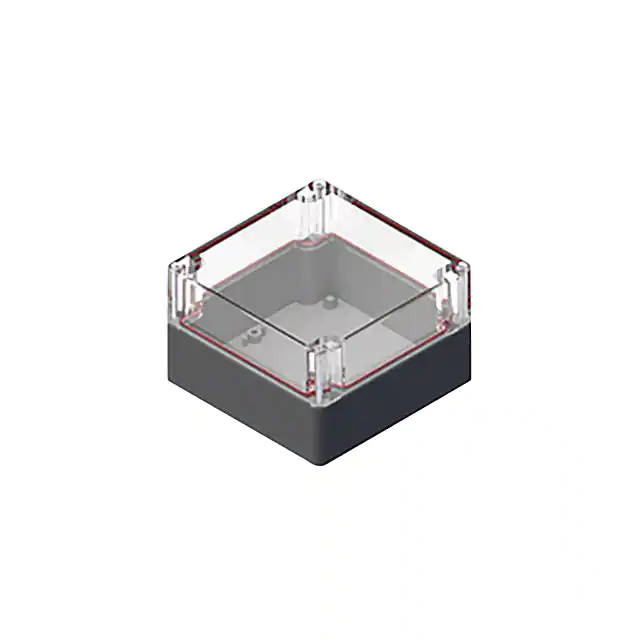

RB55P14C10GBOX PLASTIC GRAY/CLR |
0 |
|
规格书 |
RB | Bulk | Active | Box | - | 2.380" (60.45mm) | 22.3in² (144cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
|
|
RB55P14G10GBOX PLASTIC GRAY |
0 |
|
规格书 |
RB | Bulk | Active | Box | - | 2.380" (60.45mm) | 22.3in² (144cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.120" (3.05mm) | - | IP67, NEMA 4 | UL94 V-0 |
