箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1301280150BOX PVC YELLOW |
1 |
|
规格书 |
Woodhead 130128 | Bulk | Active | Box | - | 3.500" (88.90mm) | - | - | Plastic, PVC | Yellow | - | - | - | - |
|

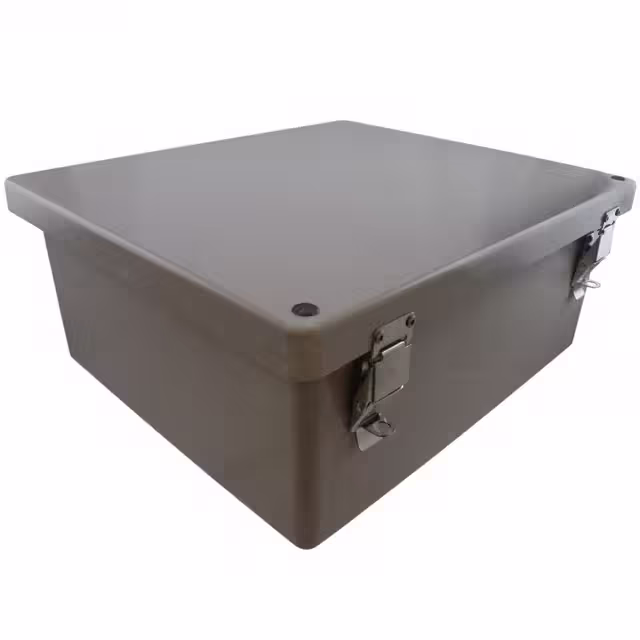

NFL-6634BOX FIBERGLASS 15.79"L X 13.89"W |
1 |
|
规格书 |
NFL | Bulk | Active | Box | 15.790" L x 13.890" W (401.07mm x 352.81mm) | 6.470" (164.34mm) | 219in² (1412cm²) | Hinged Door, Lid | Fiberglass/Polyester | Gray | - | Mounting Flange, Separate Panel or Cover Thickness, Stainless Steel Hinges | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|
BWA-AH864BOX PLASTIC CLEAR 8"L X 6"W |
1 |
|
规格书 |
BWA | Box | Active | Box | 8.000" L x 6.000" W (203.20mm x 152.40mm) | 4.000" (101.60mm) | 47.9in² (309cm²) | Cover Included | Plastic, Polycarbonate | Clear | - | - | IP68, NEMA 3R, 4, 4X, 12, UL-1741 | - |
|
0936040072BOX ALUM GRAY 12.09"L X 10.12"W |
0 |
|
规格书 |
GWconnect 93604 | Bulk | Active | Box | 12.087" L x 10.118" W (307.00mm x 257.00mm) | 4.764" (121.00mm) | 122in² (787cm²) | Cover Included | Metal, Aluminum | Gray | 0.256" (6.50mm) | Mounting Flange, PCB Supports | IP66 | - |
|

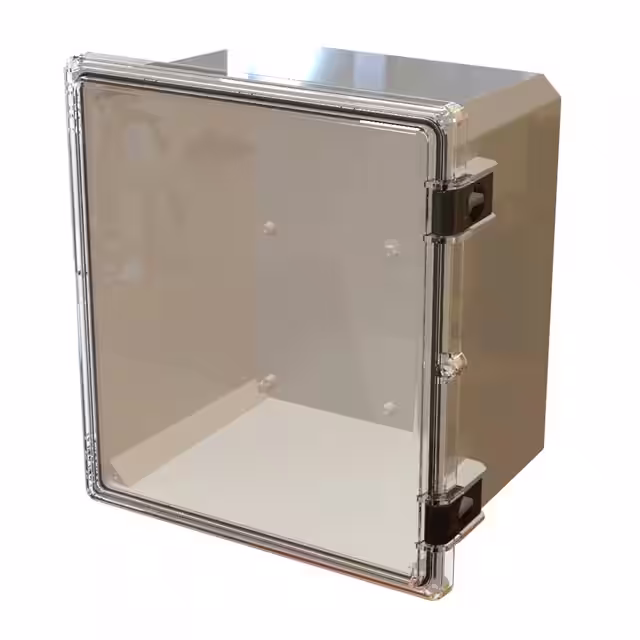

I622HL,TCBGBOX PLASTIC 17.75"L X 16.27"W |
1 |
|
规格书 |
I | Bulk | Active | Box | 17.750" L x 16.270" W (450.85mm x 413.26mm) | 7.410" (188.21mm) | 79.9in² (516cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | - | IP67, NEMA 4 | UL94 V-0 |
|

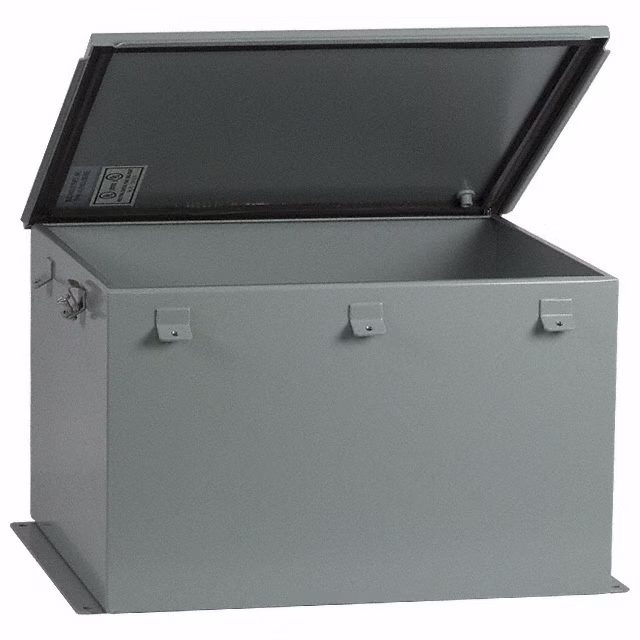

SN-3709BOX STEEL GRAY 16"L X 14"W |
1 |
|
规格书 |
SN | Box | Active | Box | 16.000" L x 14.000" W (406.40mm x 355.60mm) | 10.000" (254.00mm) | 224in² (1445cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Interior Panels, Mounting Flange | IP65, NEMA 1,2,4,4X,12,13, UL-508 | - |
|
A16R126HCRBOX STEEL GRAY 15.98"L X 12.01"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 15.984" L x 12.008" W (406.00mm x 305.00mm) | 5.984" (152.00mm) | 192in² (1239cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Mounting Flange, Wall Mount | IP32, NEMA 3R, UL-50, 50E | - |
|
I632HL,TCBGBOX PLASTIC 17.75"L X 16.27"W |
1 |
|
规格书 |
I | Box | Active | Box | 17.750" L x 16.270" W (450.85mm x 413.26mm) | 9.610" (244.09mm) | 289in² (1865cm²) | Hinged Door, Lid | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | - | IP65, IP66, IP67, NEMA 4X, 12, 13 | UL94 V-0 |
|
|
I632HLRRBOX PLAS RED 17.75"L X 16.27"W |
0 |
|
规格书 |
I | Box | Active | Box | 17.750" L x 16.270" W (450.85mm x 413.26mm) | 9.610" (244.09mm) | 289in² (1865cm²) | Hinged Door, Lid | Plastic, Polycarbonate | Red | - | - | IP65, IP66, IP67, NEMA 4X, 12, 13 | UL94 V-0 |
|
700-745BOX PLASTIC GRAY |
1 |
|
规格书 |
- | Box | Active | Box | - | 8.900" (226.06mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP67 | - |
|

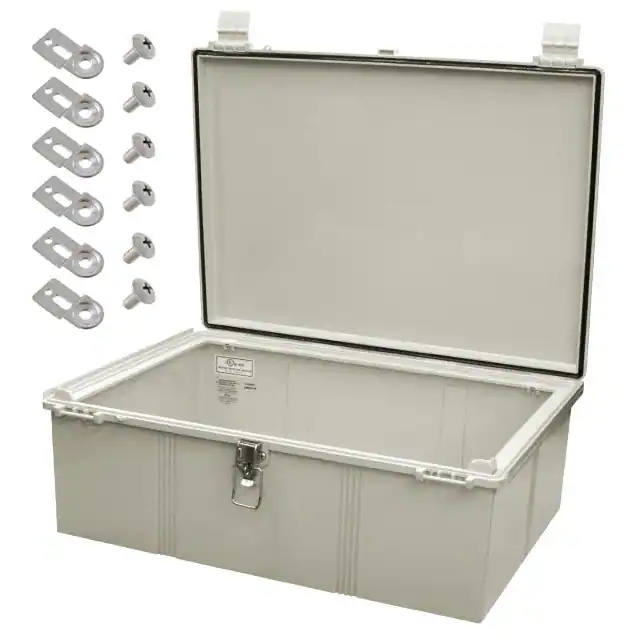

NBF-32146BOX ABS/PC GRY 27.55"L X 19.68"W |
0 |
|
规格书 |
NBF | Bulk | Active | Box | 27.550" L x 19.680" W (699.77mm x 499.87mm) | 9.840" (249.94mm) | 542in² (3497cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray | 0.185" (4.70mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
PZNWE12BOX FIBERGLASS 13.47"L X 6.56"W |
0 |
|
规格书 |
PanZone™ | Bulk | Active | Box | 13.470" L x 6.560" W (342.14mm x 166.62mm) | 13.560" (344.42mm) | 88.4in² (570cm²) | Hinged Door | Fiberglass | Gray | - | - | IP66, NEMA 4X | - |
|
BWA-EF1086KITENCLOSURE 10"L X 8"W |
0 |
|
规格书 |
BWA | Box | Active | Enclosure | 10.000" L x 8.000" W (254.00mm x 203.20mm) | 6.000" (152.40mm) | 80.0in² (516cm²) | - | - | - | - | - | - | - |
|
G201608CTPLENCLOSURE PLAS 24.17"L X 18.99"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 24.170" L x 18.990" W (613.92mm x 482.35mm) | 9.440" (239.78mm) | 459in² (2961cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray, Clear Cover | - | - | IP66, NEMA 4X | UL94 5VA, UL94 V-0 |
|
|
ENC-AL-12X14X15ENCLOSURE ALUM WHITE 15"L X 14"W |
0 |
|
规格书 |
Tycon Solar® | Box | Active | Enclosure | 15.000" L x 14.000" W (381.00mm x 355.60mm) | 12.000" (304.80mm) | 210in² (1355cm²) | Hinged Door, Lid | Metal, Aluminum | White | - | - | IP65, NEMA 4X | - |
|
A606CHNFSS6JUNCTION BOX S STL 5.98"LX5.98"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 5.984" L x 5.984" W (152.00mm x 152.00mm) | 4.016" (102.00mm) | 35.8in² (231cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 16 Gauge | Sealing Gasket, Stainless Steel Hinge, Wall Mount | IP66, NEMA 3R,4,4X,12,13, UL-508A | - |
|
G201608CQTLENCLOSURE PLAS 24.17"L X 18.99"W |
1 |
|
规格书 |
Genesis | Box | Active | Enclosure | 24.170" L x 18.990" W (613.92mm x 482.35mm) | 9.440" (239.78mm) | 459in² (2961cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray, Clear Cover | - | - | IP66, NEMA 4X | UL94 5VA, UL94 V-0 |
|
BWA-EF14128KITENCLOSURE 14"L X 12"W |
0 |
|
规格书 |
BWA | Box | Active | Enclosure | 14.000" L x 12.000" W (355.60mm x 304.80mm) | 8.000" (203.20mm) | 168in² (1084cm²) | - | - | - | - | - | - | - |
|
CSD24246BOX STEEL GRAY 24.02"L X 24.02"W |
1 |
|
规格书 |
- | Bulk | Active | Box | 24.016" L x 24.016" W (610.00mm x 610.00mm) | 5.984" (152.00mm) | 576in² (3716cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 4,12,13, UL-508A | - |
|
|
CSD30308BOX STEEL GRAY 30"L X 30"W |
0 |
|
规格书 |
- | Bulk | Active | Box | 30.000" L x 30.000" W (762.00mm x 762.00mm) | 7.992" (203.00mm) | 900in² (5806cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 4,12,13, UL-508A | - |
