箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

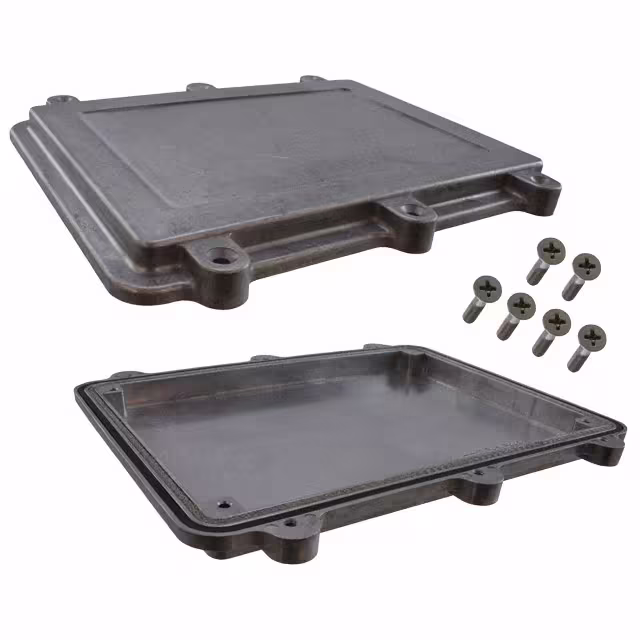

ANS-3816BOX ALUM NATURAL 7.87"L X 5.91"W |
1 |
|
规格书 |
ANS | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 1.096" (27.83mm) | 46.5in² (300cm²) | Cover Included | Metal, Aluminum | Natural | 0.098" (2.49mm) | EMI Shielded, PCB Supports | IP67, NEMA 1,2,4,4X,12,13 | - |
|
EXN-23366-SVBOX ALUM BLK/SIL 8.23"L X 7"W |
1 |
|
规格书 |
EXN | Bulk | Active | Box | 8.228" L x 6.996" W (209.00mm x 177.69mm) | 2.406" (61.10mm) | 57.6in² (372cm²) | End Panel(s) | Metal, Aluminum | Black, Silver | 0.110" (2.79mm) | Card Guides, Sealing Gaskets | IP66 | - |
|
2203332HOUSING PLSTC GRY 5.71"LX1.85"W |
1 |
|
规格书 |
UCS | Bulk | Active | Housing | 5.709" L x 1.850" W (145.00mm x 47.00mm) | 4.921" (125.00mm) | 10.6in² (68cm²) | Cover Included | Plastic, Polycarbonate | Gray | - | - | - | UL94 V-0 |
|
2203333HOUSING PLSTC BLK 5.71"LX1.85"W |
1 |
|
规格书 |
UCS | Bulk | Active | Housing | 5.709" L x 1.850" W (145.00mm x 47.00mm) | 4.921" (125.00mm) | 10.6in² (68cm²) | Cover Included | Plastic, Polycarbonate | Black | - | - | - | UL94 V-0 |
|

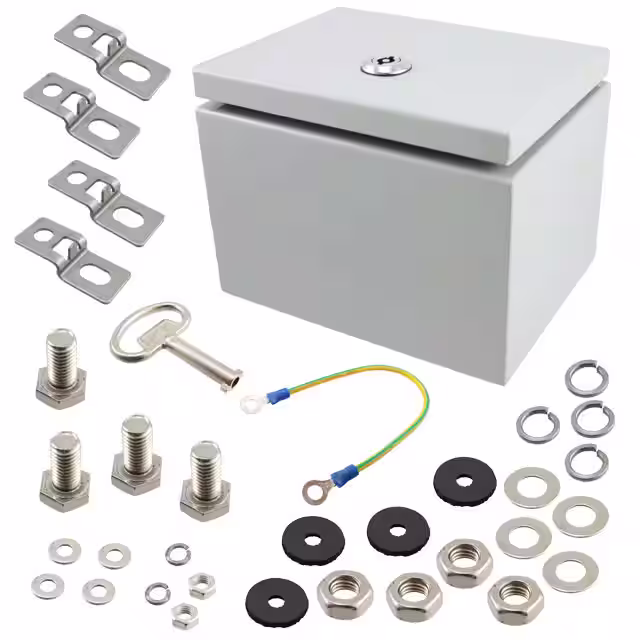

SNB-3738BOX STEEL GRAY 7.87"L X 5.91"W |
1 |
|
规格书 |
SNB | Bulk | Active | Box | 7.870" L x 5.910" W (199.90mm x 150.11mm) | 5.910" (150.11mm) | 46.5in² (300cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Interior Panels, Mounting Flange | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
ATX-10501JUNCTION BOX ALUM 3.15"LX2.95"W |
1 |
|
规格书 |
ATX | Bulk | Active | Junction Box | 3.150" L x 2.953" W (80.00mm x 75.00mm) | 2.244" (57.00mm) | 9.30in² (60.0cm²) | Cover Included | Metal, Aluminum | Gray | 0.098" (2.50mm) | PCB Supports, Sealing Gasket | IP66 | - |
|

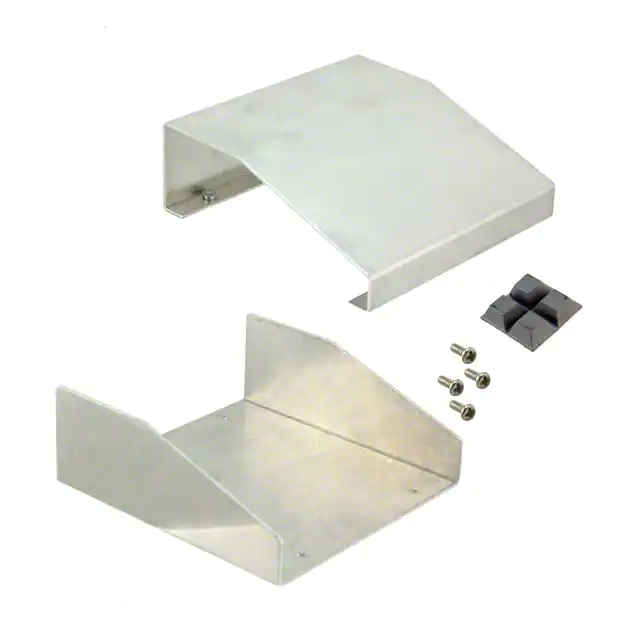

UNC 3-10-10 PLAINCABINET ALUM 10"L X 10"W |
1 |
|
- |
Uni-Cab | Bulk | Active | Cabinet | 10.000" L x 10.000" W (254.00mm x 254.00mm) | 3.000" (76.20mm) | 100in² (645cm²) | Slanted Top | Metal, Aluminum | Unpainted | 0.090" (2.29mm) | Separate Panel or Cover Thickness | - | - |
|
ASE10X10X6JUNCTION BOX STL GRY 10"L X 10"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 10.000" L x 10.000" W (254.00mm x 254.00mm) | 5.984" (152.00mm) | 100in² (645cm²) | Cover Included | Metal, Steel | Gray | - | Knockouts, Wall Mount | IP30, NEMA 1, UL-50, 50E | - |
|
2203334HOUSING PLSTC GRY 5.71"LX2.64"W |
1 |
|
规格书 |
UCS | Bulk | Active | Housing | 5.709" L x 2.638" W (145.00mm x 67.00mm) | 4.921" (125.00mm) | 15.0in² (97cm²) | Cover Included | Plastic, Polycarbonate | Gray | - | - | - | UL94 V-0 |
|

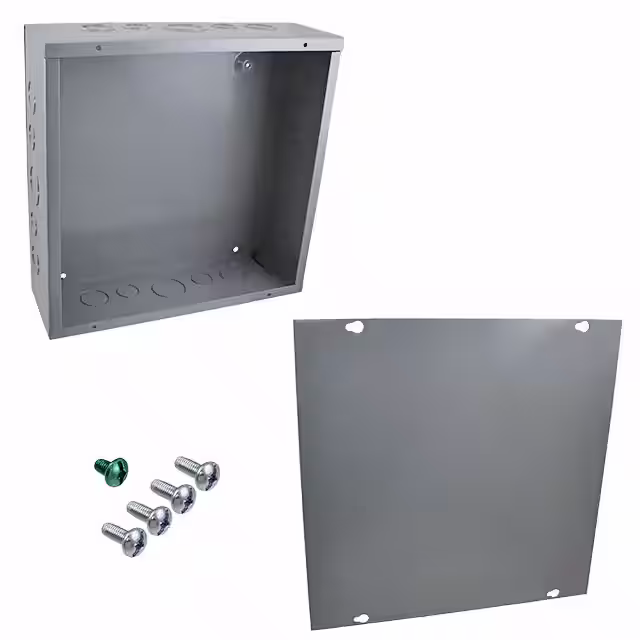

ASG12X12X4JUNCTION BOX STEEL 12"L X 12"W |
1 |
|
规格书 |
- | Bulk | Active | Junction Box | 12.008" L x 12.008" W (305.00mm x 305.00mm) | 4.016" (102.00mm) | 144in² (929cm²) | Cover Included | Metal, Steel | Gray | - | Knockouts, Wall Mount | IP30, NEMA 1, UL-50, 50E | - |
|
NBF-32124BOX ABS/PC GRAY 13.78"L X 9.84"W |
0 |
|
规格书 |
NBF | Bulk | Active | Box | 13.780" L x 9.840" W (350.01mm x 249.94mm) | 7.080" (179.83mm) | 136in² (877cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray | 0.140" (3.56mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
5020438COMP STORAGE PLAS 9.84"LX6.69"W |
1 |
|
规格书 |
SORTI | Bulk | Active | Component Storage | 9.843" L x 6.693" W (250.00mm x 170.00mm) | 1.811" (46.00mm) | 65.9in² (425cm²) | Hinged Door, Lid | Plastic, Polystyrene | Clear | - | Compartments/Drawers - 8 | - | - |
|

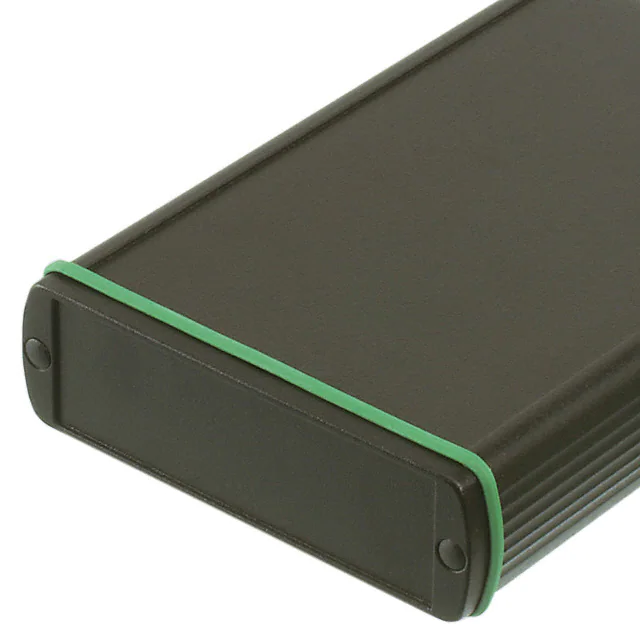

ABP13000150SETBOX ALUM BLACK 5.91"L X 5.43"W |
1 |
|
规格书 |
Alubos | Bulk | Active | Box | 5.906" L x 5.433" W (150.00mm x 138.00mm) | 1.339" (34.00mm) | 32.1in² (207cm²) | End Panel(s) | Metal, Aluminum | Black | - | - | IP65 | - |
|
07502010BOX ALUM BLACK 4.96"L X 4.72"W |
1 |
|
规格书 |
Novotronic | Bulk | Active | Box | 4.961" L x 4.724" W (126.00mm x 120.00mm) | 1.929" (49.00mm) | 23.4in² (151cm²) | End Panel(s) | Metal, Aluminum | Black | - | - | IP65 | - |
|

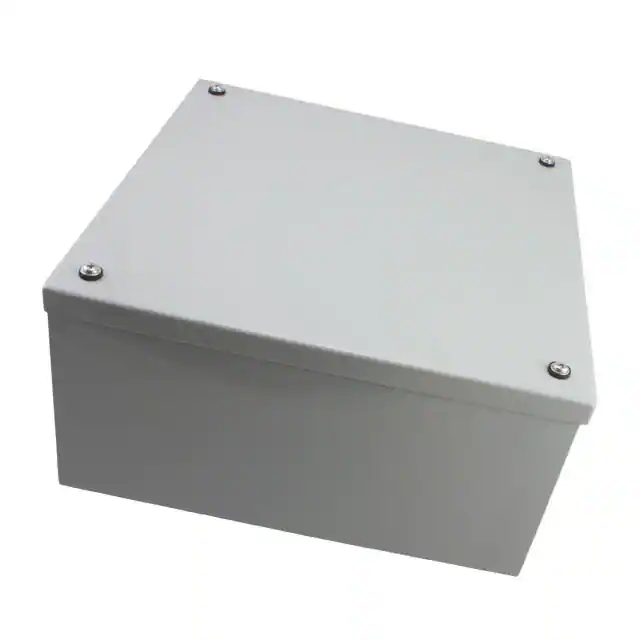

SNC-3753BOX STEEL GRAY 11.81"L X 5.91"W |
1 |
|
规格书 |
SNC | Bulk | Active | Box | 11.810" L x 5.910" W (299.97mm x 150.11mm) | 11.850" (300.99mm) | 69.8in² (450cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Interior Panels, Mounting Flange | IP65, NEMA 1,2,4,4X, UL508-4X | - |
|
2203456HOUSING PLSTC BLK 9.33"LX1.85"W |
1 |
|
规格书 |
UCS | Bulk | Active | Housing | 9.331" L x 1.850" W (237.00mm x 47.00mm) | 7.677" (195.00mm) | 17.3in² (112cm²) | Cover Included | Plastic, Polycarbonate | Black | - | - | - | UL94 V-0 |
|
2203458HOUSING PLSTC BLK 9.33"LX2.64"W |
1 |
|
规格书 |
UCS | Bulk | Active | Housing | 9.331" L x 2.638" W (237.00mm x 67.00mm) | 7.677" (195.00mm) | 24.6in² (159cm²) | Cover Included | Plastic, Polycarbonate | Black | - | - | - | UL94 V-0 |
|

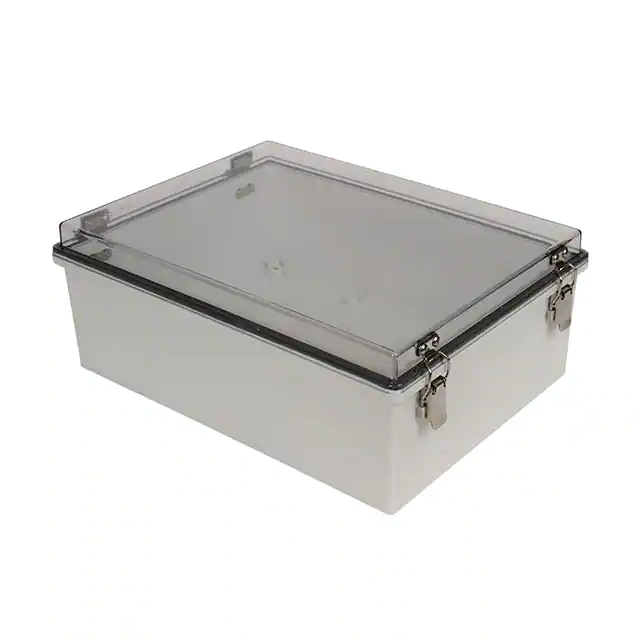

PTH-22730-LCBOX PC GRAY 15.75"L X 11.81"W |
1 |
|
规格书 |
PTH | Bulk | Active | Box | 15.750" L x 11.810" W (400.05mm x 300.00mm) | 5.910" (150.11mm) | 186in² (1200cm²) | Hinged Door, Lid | Plastic, Polycarbonate (PC) | Gray | 0.120" (3.05mm) | Latches, Sealing Gasket | IP67, NEMA 4X, UL 508 | UL94 5VA |
|

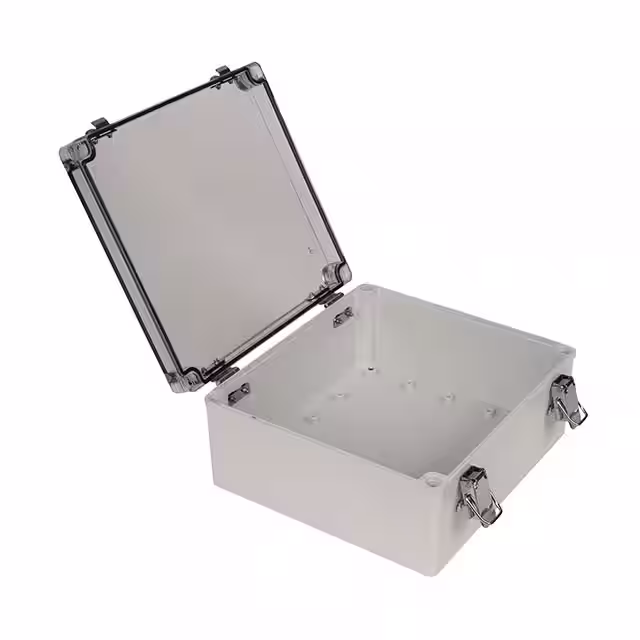

PTH-22512-CBOX PC GRAY 9.06"L X 8.27"W |
1 |
|
规格书 |
PTH | Bulk | Active | Box | 9.060" L x 8.270" W (230.12mm x 210.06mm) | 3.940" (100.08mm) | 74.9in² (483cm²) | Hinged Door, Lid | Plastic, Polycarbonate (PC) | Gray | 0.120" (3.05mm) | Latches, Sealing Gasket | IP67, NEMA 4X, UL 508 | UL94 5VA |
|
|
I632HLGGBOX PLAS GRAY 17.75"L X 16.27"W |
1 |
|
规格书 |
I | Box | Active | Box | 17.750" L x 16.270" W (450.85mm x 413.26mm) | 9.610" (244.09mm) | 289in² (1865cm²) | Hinged Door, Lid | Plastic, Polycarbonate | Gray | - | - | IP65, IP66, IP67, NEMA 4X, 12, 13 | UL94 V-0 |
