上传BOM
箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

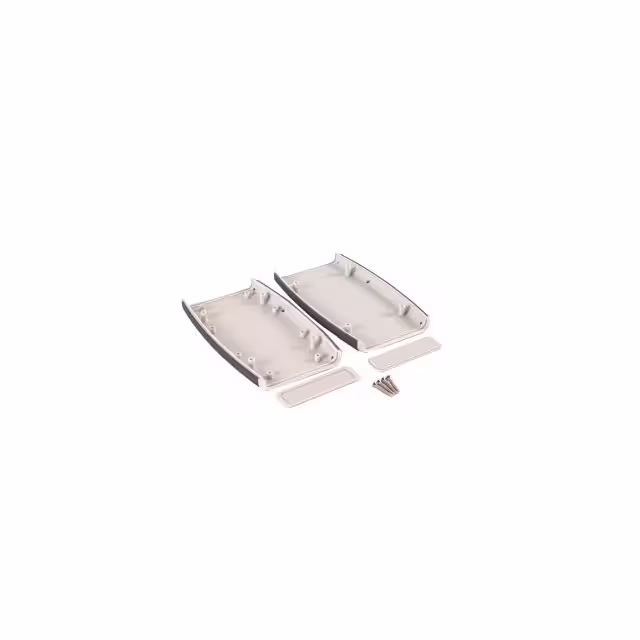

1553DXGYBOX ABS GRAY 5.8"L X 3.5"W |
20 |
|
规格书 |
1553 | Bag | Active | Box | 5.800" L x 3.500" W (147.32mm x 88.90mm) | 0.980" (24.89mm) | 20.3in² (131cm²) | Hand Held, Split Sides | ABS | Gray | 0.100" (2.54mm) | - | - | UL94 HB |
|
PERF-101 PLAINCHASSIS ALUM 4.25"L X 2.25"W |
1 |
|
规格书 |
- | Bulk | Active | Chassis | 4.250" L x 2.250" W (107.95mm x 57.15mm) | 1.250" (31.75mm) | 9.56in² (61.7cm²) | Perforated, U Shaped Pieces | Metal, Aluminum | Unpainted | 0.050" (1.27mm) | Vented Panels | - | - |
|
FIT0723ENCLOSURE ABS 6.61"L X 4.72"W |
3 |
|
规格书 |
- | Bulk | Active | Enclosure | 6.614" L x 4.724" W (168.00mm x 120.00mm) | 2.165" (55.00mm) | 31.2in² (201cm²) | Cover Included | Plastic, ABS | Gray | 0.020" (0.50mm) | Mounting Flange | IP66 | - |
|

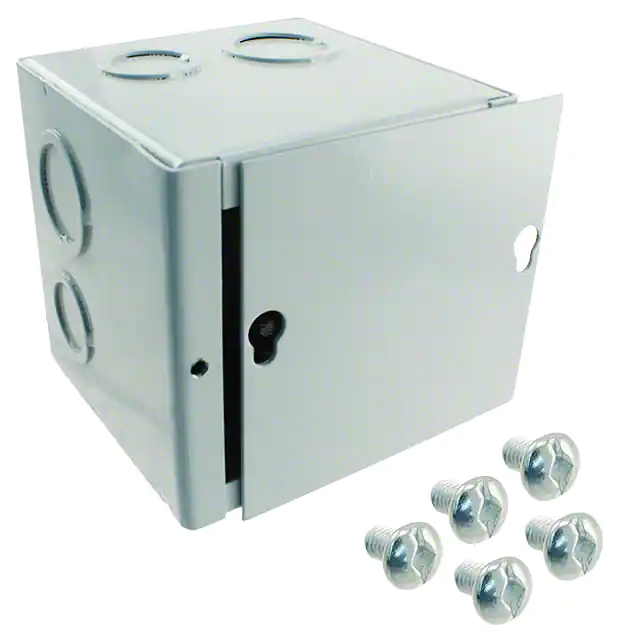

JB-3951-KOBOX STEEL GRAY 4"L X 4"W |
2 |
|
规格书 |
JB | Box | Active | Box | 4.000" L x 4.000" W (101.60mm x 101.60mm) | 4.000" (101.60mm) | 16.0in² (103cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Knockouts, Wall Mount | NEMA 1 | - |
|

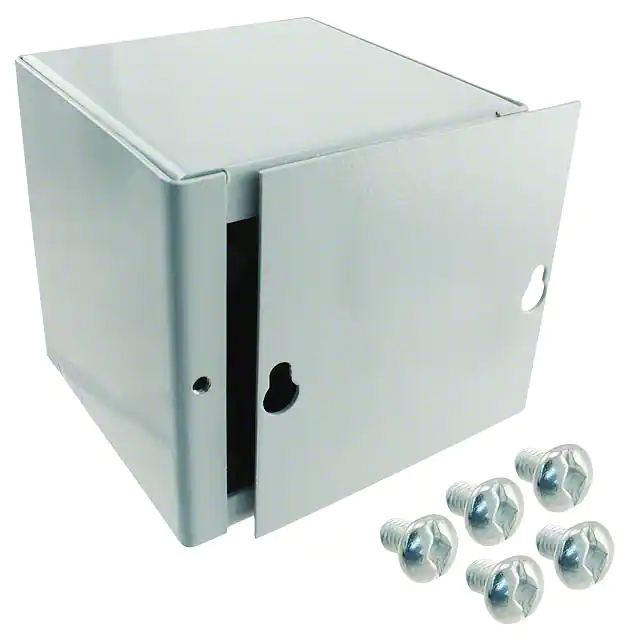

JB-3951BOX STEEL GRAY 4"L X 4"W |
1 |
|
规格书 |
JB | Box | Active | Box | 4.000" L x 4.000" W (101.60mm x 101.60mm) | 4.000" (101.60mm) | 16.0in² (103cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Wall Mount | NEMA 1 | - |
|
6743HSBOX PLASTIC BLACK 13"L X 6"W |
5 |
|
规格书 |
Lil' Brute | Bulk | Active | Box | 13.000" L x 6.000" W (330.20mm x 152.40mm) | 5.374" (136.50mm) | 77.9in² (503cm²) | Hinged Door, Lid | Plastic, Copolymer Resin | Black | - | Handles, Snap Latch, Tray | - | - |
|
326-900BOX PLASTIC GRAY 4.45"L X 4.45"W |
2 |
|
规格书 |
HP | Bulk | Active | Box | 4.450" L x 4.450" W (113.03mm x 113.03mm) | 2.280" (57.91mm) | 19.8in² (128cm²) | Cover Included, Hand Held | Plastic, Polypropylene | Gray | - | Knockouts | IP55 | - |
|
3850-6BOX PLAS BLUE 2.69"L X 1.82"W |
2 |
|
规格书 |
- | Bulk | Active | Box | 2.690" L x 1.820" W (68.33mm x 46.23mm) | 1.370" (34.80mm) | 4.90in² (31.6cm²) | Cover Included | Plastic, Thermoplastic | Blue | 0.080" (2.03mm) | Card Guides | - | - |
|
H679V,GYBOX ABS GRAY 4.94"L X 2.75"W |
2 |
|
规格书 |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 1.280" (32.51mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Gray | 0.080" (2.03mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|
WM032RI,GYBOX ABS GRAY 4.38"L X 3.25"W |
2 |
|
规格书 |
WM | Bulk | Active | Box | 4.380" L x 3.250" W (111.25mm x 82.55mm) | 1.600" (40.64mm) | 14.2in² (92cm²) | Cover Included | Plastic, ABS | Gray | 0.100" (2.54mm) | Front Access, Mounting Flange, PCB Supports, Wall Mount | IP40, NEMA 1 | UL94 HB |
|
S1A-404017BOX ABS WHITE 4"L X 4"W |
5 |
|
规格书 |
- | Bag | Active | Box | 4.000" L x 4.000" W (101.60mm x 101.60mm) | 1.598" (40.59mm) | 16.0in² (103cm²) | Cover Included, Hand Held | Plastic, ABS | White | 0.062" (1.57mm) | - | - | - |
|
CA8B4,BKKEY FOB ABS BLK 3.32"L X 1.87"W |
3 |
|
规格书 |
CA | Box | Active | Key FOB | 3.320" L x 1.870" W (84.33mm x 47.50mm) | 1.000" (25.40mm) | 6.21in² (40.1cm²) | Hand Held, Split Sides | Plastic, ABS | Black | - | Buttons - 4 | IP67 | UL94 HB |
|

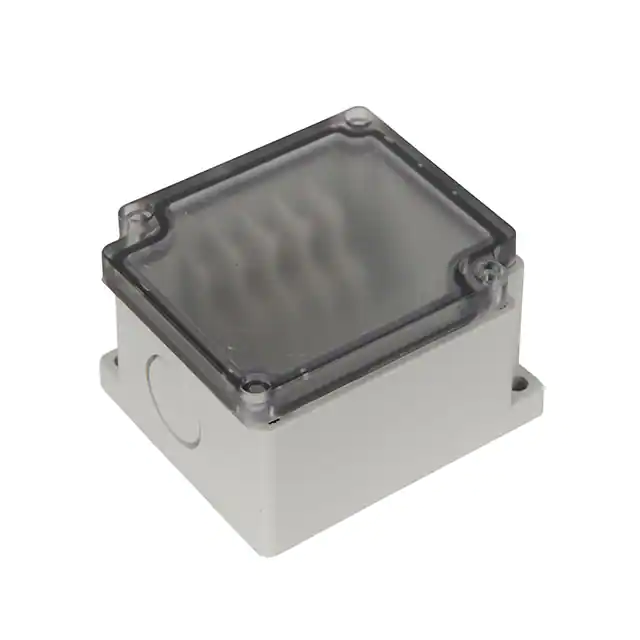

PTT-10478-CJUNCTION BOX ABS 2.92"L X 2.57"W |
2 |
|
规格书 |
PTT | Bulk | Active | Junction Box | 2.920" L x 2.570" W (74.17mm x 65.28mm) | 1.690" (42.93mm) | 7.50in² (48.4cm²) | Cover Included | Plastic, ABS | Gray | 0.119" (3.02mm) | Knockouts, Sealing Gasket | IP66, IP67, NEMA 4X | UL94 V-0 |
|
1596B106-5BOX PLAS BLK 3.94"L X 2.36"W 1=5 |
1 |
|
规格书 |
1596 | Box | Active | Box, Potting | 3.937" L x 2.362" W (100.00mm x 60.00mm) | 0.988" (25.10mm) | 9.30in² (60.0cm²) | - | Plastic | Black | 0.039" (1.00mm) | - | - | - |
|
A27,GYBOX ABS GRAY 5.31"L X 3.35"W |
5 |
|
规格书 |
A | Bulk | Active | Box | 5.310" L x 3.350" W (134.87mm x 85.09mm) | 1.500" (38.10mm) | 17.8in² (115cm²) | Split Sides and End Panel(s) | Plastic, ABS | Gray | 0.100" (2.54mm) | PCB Supports | IP40 | UL94 HB |
|
071I,BKBOX ABS BLACK 6.88"L X 4.88"W |
1 |
|
规格书 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 0.900" (22.86mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|

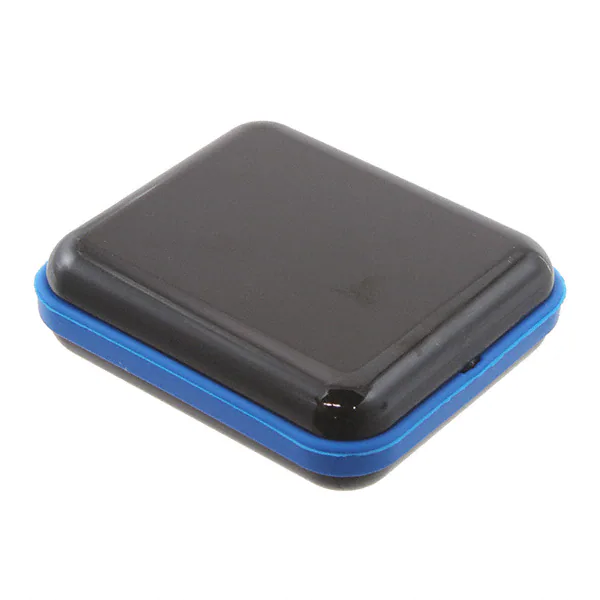

CX20ABKABLENCLOSURE PLAS 1.68"L X 1.45"W |
1 |
|
规格书 |
CX | Bulk | Active | Enclosure | 1.680" L x 1.450" W (42.67mm x 36.83mm) | 0.510" (12.95mm) | 2.43in² (15.7cm²) | Cover Included, Hand Held | Plastic, Polycarbonate | Black, Blue | 0.080" (2.03mm) | - | IP67, NEMA 4X, 12, 13 | UL94 V-2 |
|
PPB-11860-WTBOX ABS WHITE 3.09"L X 2.09"W |
5 |
|
规格书 |
PPB | Bulk | Active | Box | 3.086" L x 2.085" W (78.38mm x 52.96mm) | 1.647" (41.83mm) | 6.43in² (41.5cm²) | Hand Held, Split Sides | Plastic, ABS | White | - | Mounting Flange, PCB Supports, Power Plug | - | UL94 V-0 |
|
S1A-361413-KBOX ABS WHITE 3.6"L X 1.44"W |
0 |
|
规格书 |
- | Bag | Active | Box | 3.600" L x 1.440" W (91.44mm x 36.58mm) | 1.362" (34.60mm) | 5.18in² (33.4cm²) | Cover Included, Hand Held | Plastic, ABS | White | 0.062" (1.57mm) | - | - | - |
|
251,BKBOX ABS BLACK 5.62"L X 3.25"W |
1 |
|
规格书 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 1.500" (38.10mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
